61 31 232 Removing and installing/replacing steering wheel module control unit (sports steering wheel)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG unit, refer to DRIVER-SIDE AIR BAG MODULE

NOTE: Illustration shows sports steering wheel removed.

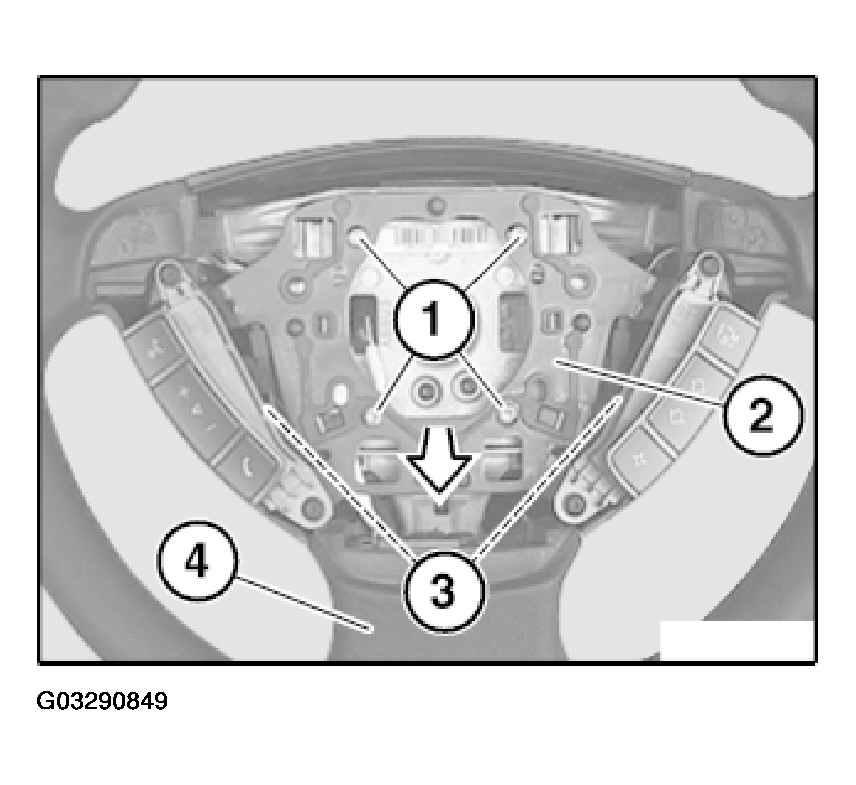

Release screws (1).

Fig 1: Removing Steering Wheel Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Raise steering wheel retaining plate (2) slightly and disconnect plug connections (3).

Remove steering wheel retaining plate (2) from sports steering wheel (4).

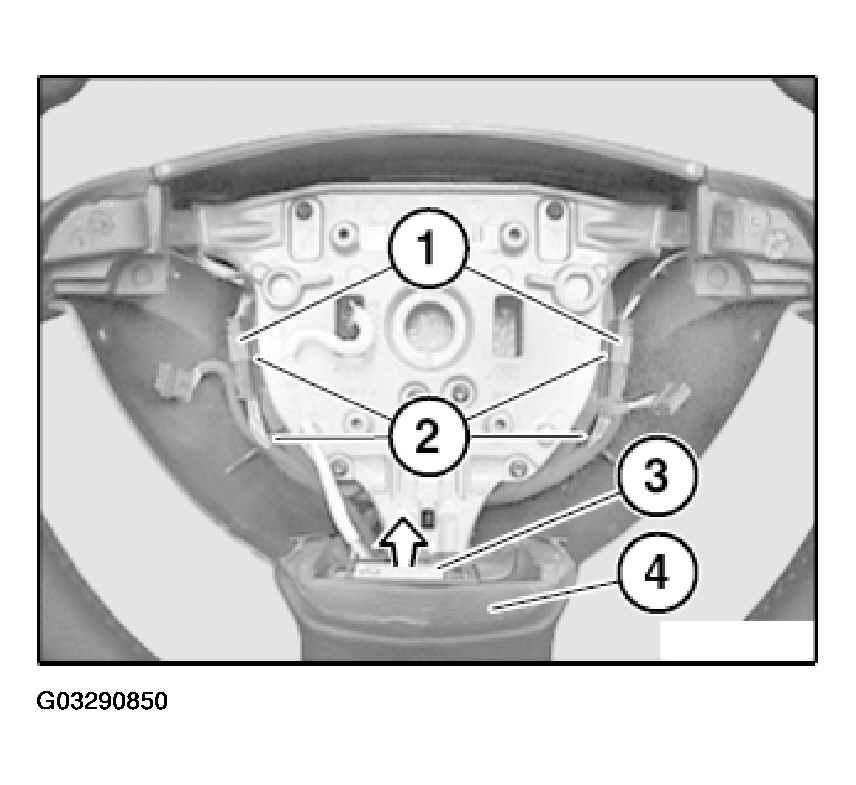

Disconnect plug connections (1).

Fig 2: Pulling Steering Wheel Module Control Unit Out Of Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure plug connections (1) and leads are correctly seated in mountings (2).

Pull steering wheel module control unit (3) in direction of arrow out of sports steering wheel (4).

Installation:

Make sure steering wheel module control unit (3) is exactly seated in sports steering wheel (4).

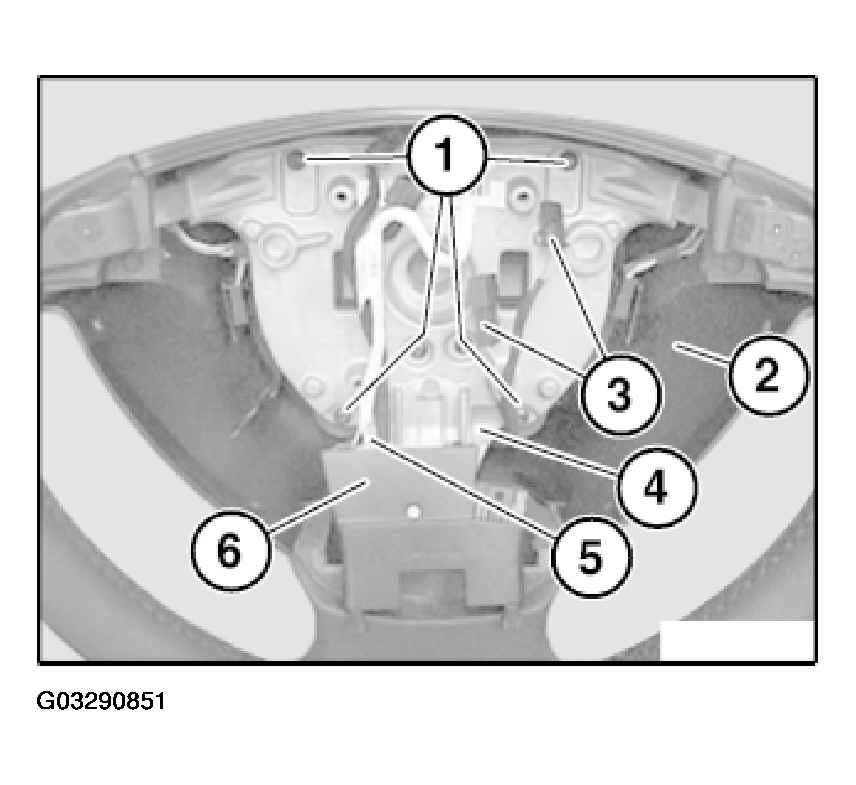

Release screws (1).

Fig 3: Removing Steering Wheel Module Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Pull steering wheel element (2) downwards slightly and feed leads (3) through under steering wheel carrier (4).

If necessary, disconnect plug connection (5).

Remove steering wheel module control unit (6).

Installation:

Ensure correct cable routing.
