61 31 231 Removing and installing/replacing steering wheel electronics control unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG unit, refer to DRIVER-SIDE AIR BAG MODULE

NOTE: Illustration shows steering wheel removed.

Unlock plug connections (1) and disconnect.

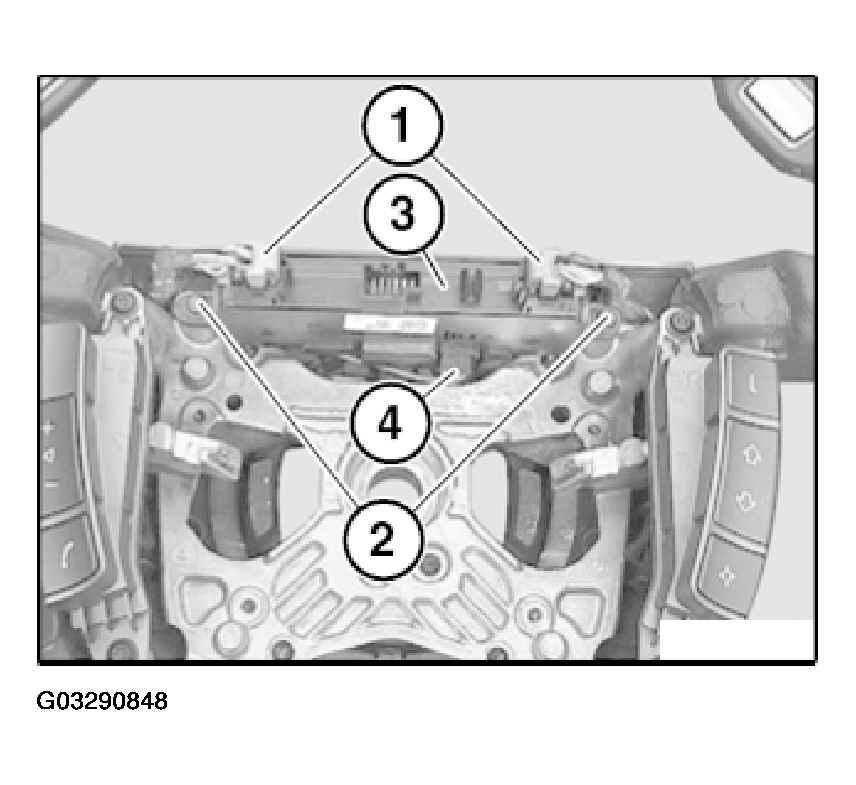

Fig 1: Removing Steering Wheel Electronics Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Pull out steering wheel electronics control unit (3) slightly.

Unlock plug connection (4) and disconnect.

Remove steering wheel electronics control unit (3).
