61 31 204 Replacing switch combination for seat adjustment (comfort seat in rear compartment)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove wood trim on rear center armrest. Refer to 52 25 070 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON REAR CENTER ARMREST .

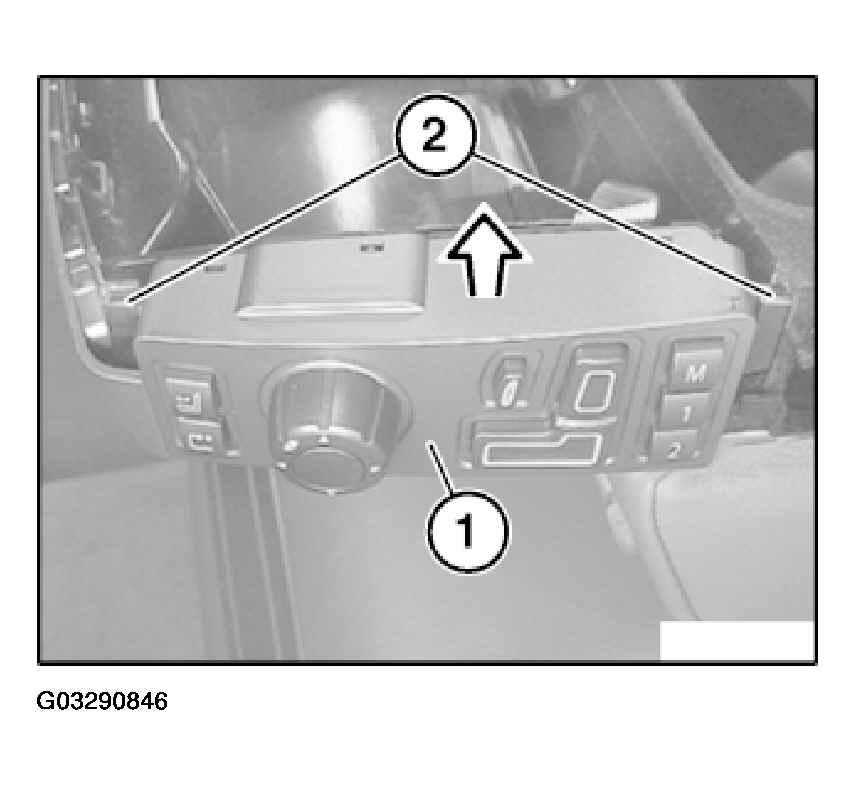

Lift switch combination for seat adjustment (1) in direction of arrow out of side guides (2) and remove.
Installation:
Make sure switch combination for seat adjustment (1) is correctly seated in side guides (2).
