61 31 196 Removing and installing (replacing) rear controller

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wood trim on rear center armrest. Refer to 52 25 070 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON REAR CENTER ARMREST .

Release screws (1).

Remove rear controller (2) from wood trim on rear center armrest (3).

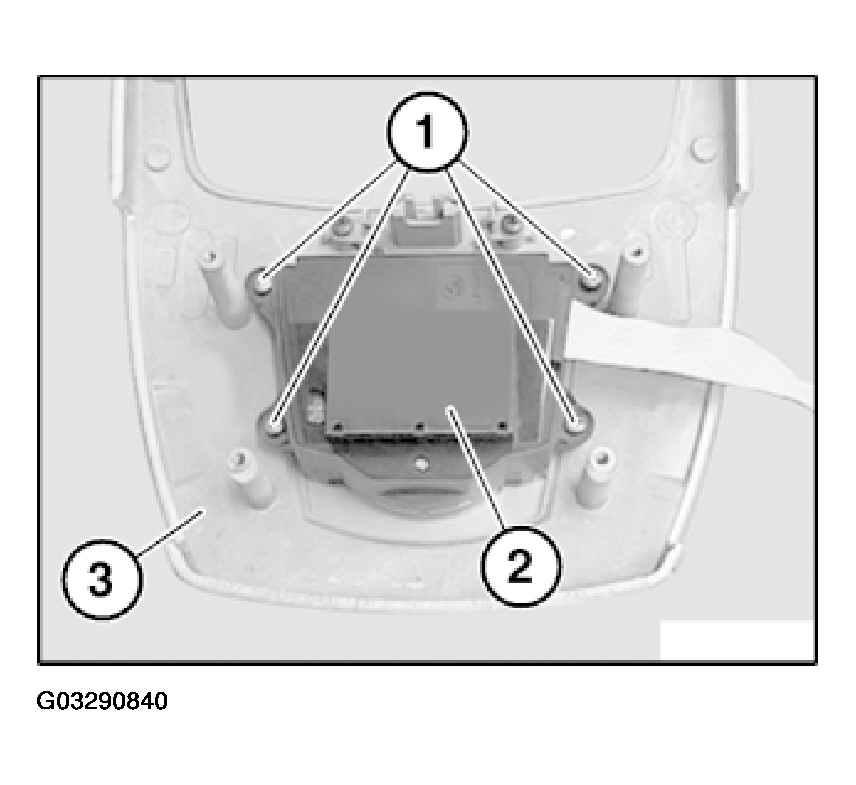

Fig 1: Removing Rear Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

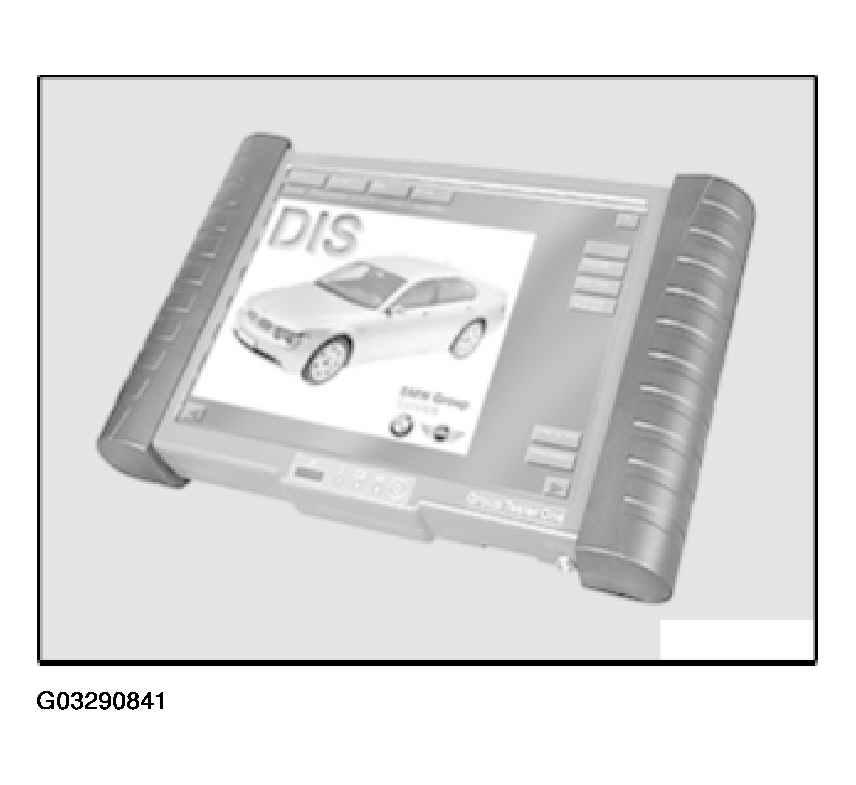

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
