61 31 192 Replacing knob for controller

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
00 9 323

Attach special tools 00 9 323 and 00 9 317 as illustrated.

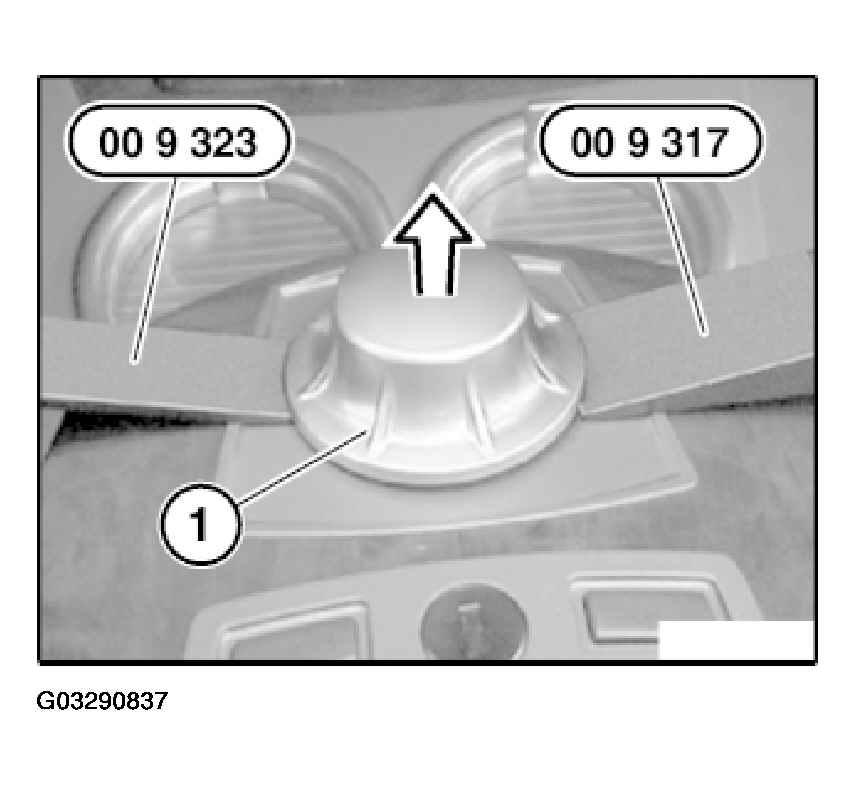

Fig 1: Levering Out Knob For Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out knob for controller (1) on both sides in direction of arrow and detach.

Installation:

Positioners (2) of knob for controller (1) must engage in openings (3) of controller (4).

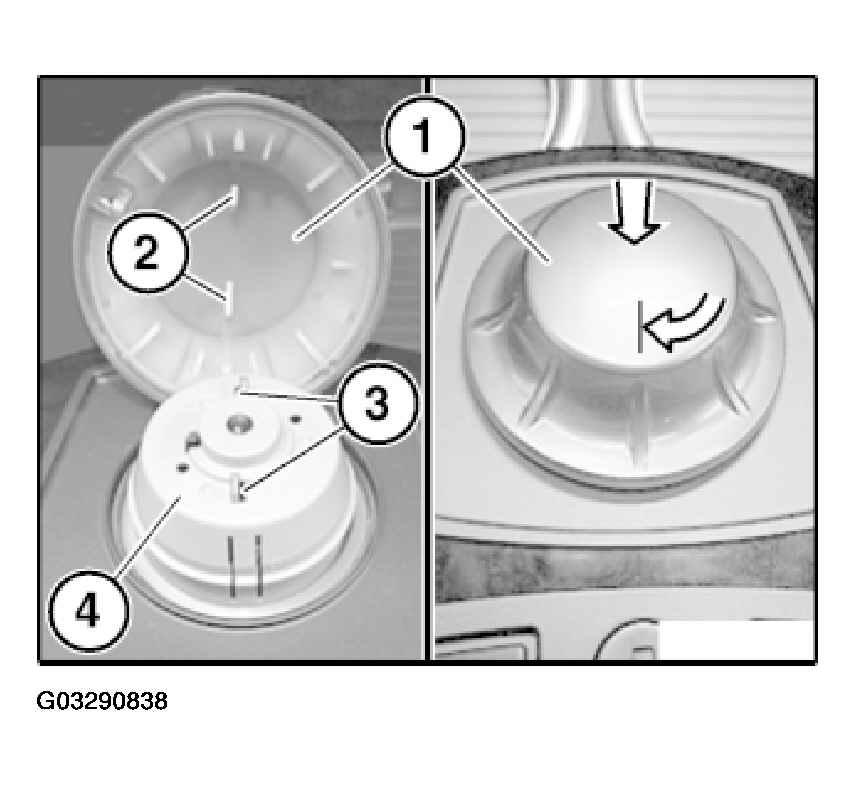

Fig 2: Installing Knob For Controller

Courtesy of BMW OF NORTH AMERICA, INC.

For this purpose, fit knob for controller (1), turn in direction of arrow until positioners (2) engage stop.

If necessary, turn on ignition to prevent controller (4) from turning as well.

Press knob for controller (1) in middle until it engages.
