61 31 164 Removing and installing/replacing rear left or right switch combination (seat heating, head restraint)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
00 9 341

Fold down center armrest.

Open upper armrest section.

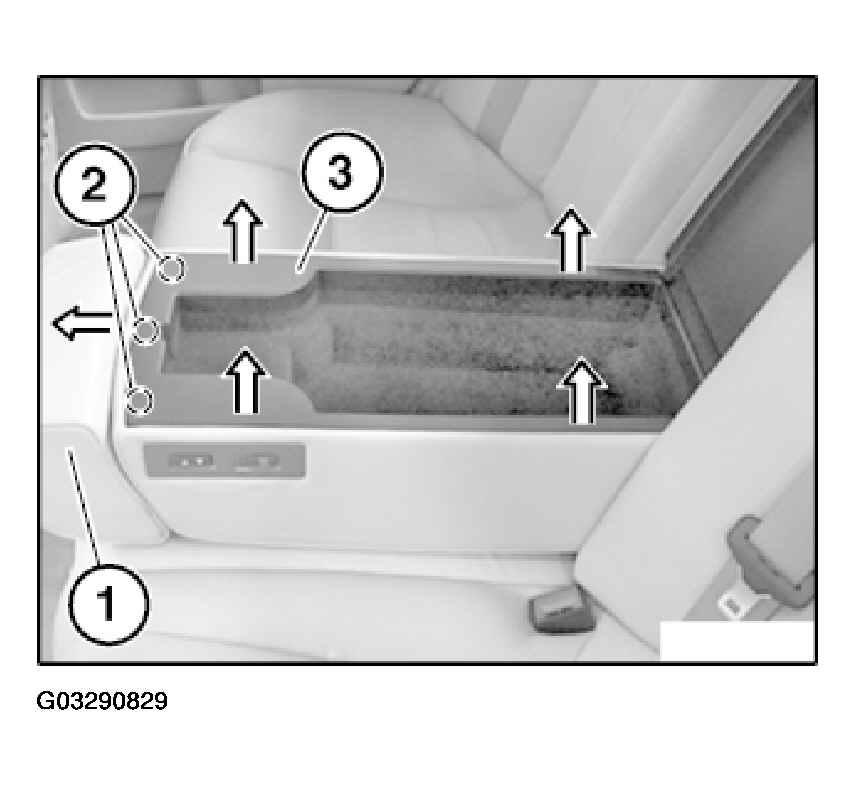

Fig 1: Removing Cover Frame

G03290829

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rear middle head restraint (1) a little.

First lever out front catches (2) of cover frame (3) with special tool 00 9 317.

Then unclip cover frame (3) all round with special tool 00 9 317 and remove.

Installation:

Detent lugs of cover frame (3) must not be damaged.

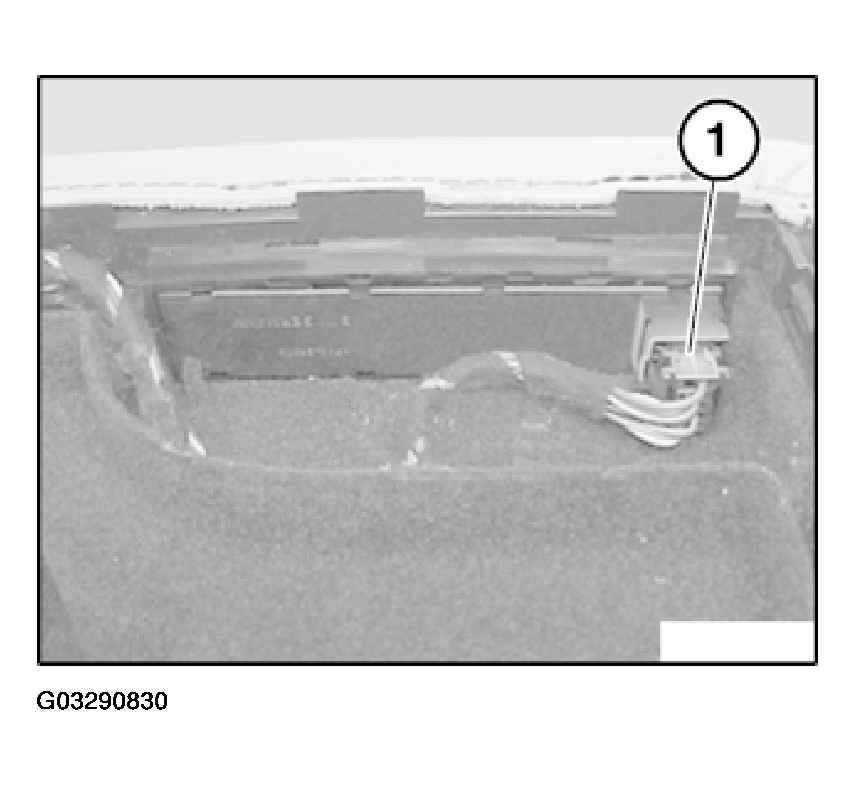

Disconnect plug connection (1).

Fig 2: Disconnecting Plug Connection

G03290830

Courtesy of BMW OF NORTH AMERICA, INC.

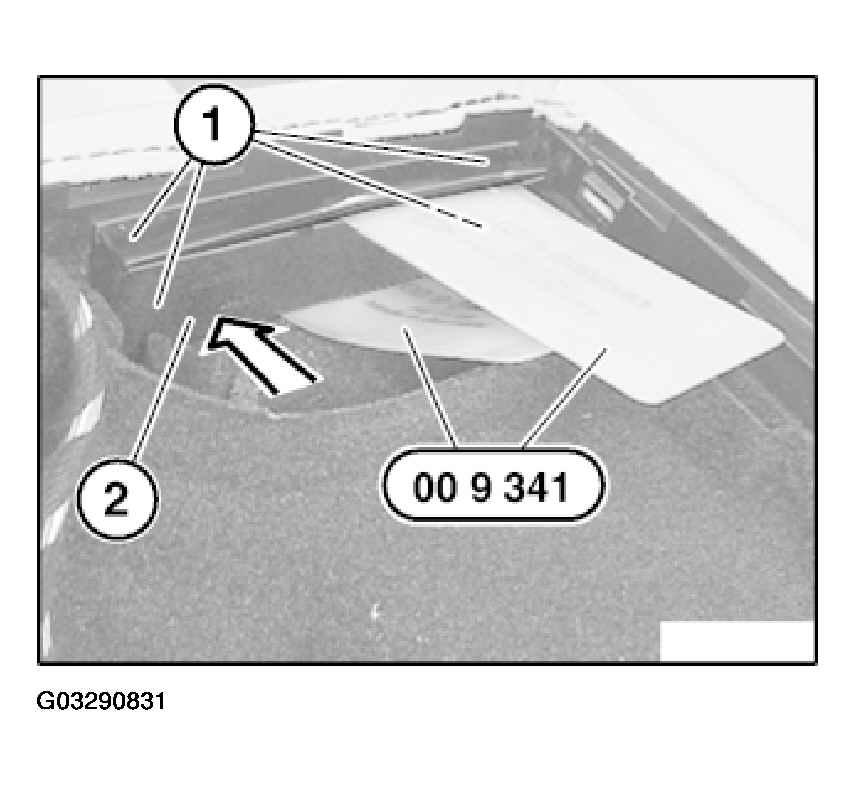

Using special tool 00 9 341, depress catches (1) and press out rear switch combination (2) in direction of arrow.

Fig 3: Pressing Out Rear Switch Combination

G03290831

Courtesy of BMW OF NORTH AMERICA, INC.
