61 31 162 Removing and installing/replacing front left or right switch combination

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove switch combination for seat adjustment. Refer to 61 31 203 REPLACING SWITCH COMBINATION FOR SEAT ADJUSTMENT .

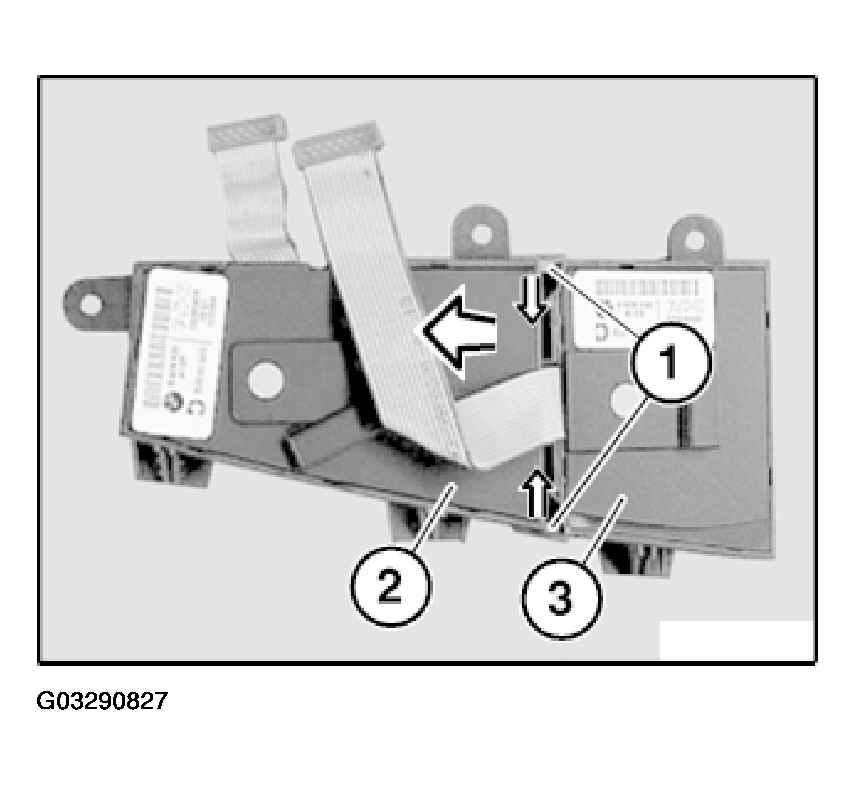

Unlock both retaining hooks (1) and detach seat adjustment switch (2) in direction of arrow from front switch combination (3).

Fig 1: Removing Switch Combination For Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

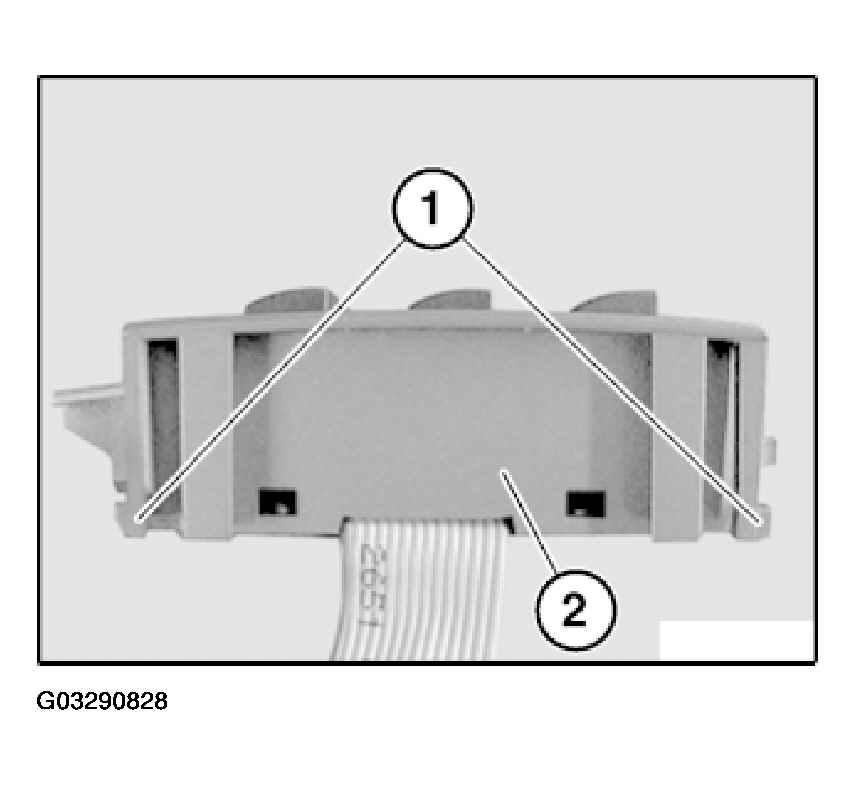

Both retaining hooks (1) of front switch combination (2) must snap fully into place.

Fig 2: Identifying Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
