61 31 156 Removing and installing (replacing) control unit in center armrest at rear: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

NOTE: Fold down center armrest.

Open upper armrest section.

Lever out front oddments tray (1) in direction of arrow and remove.

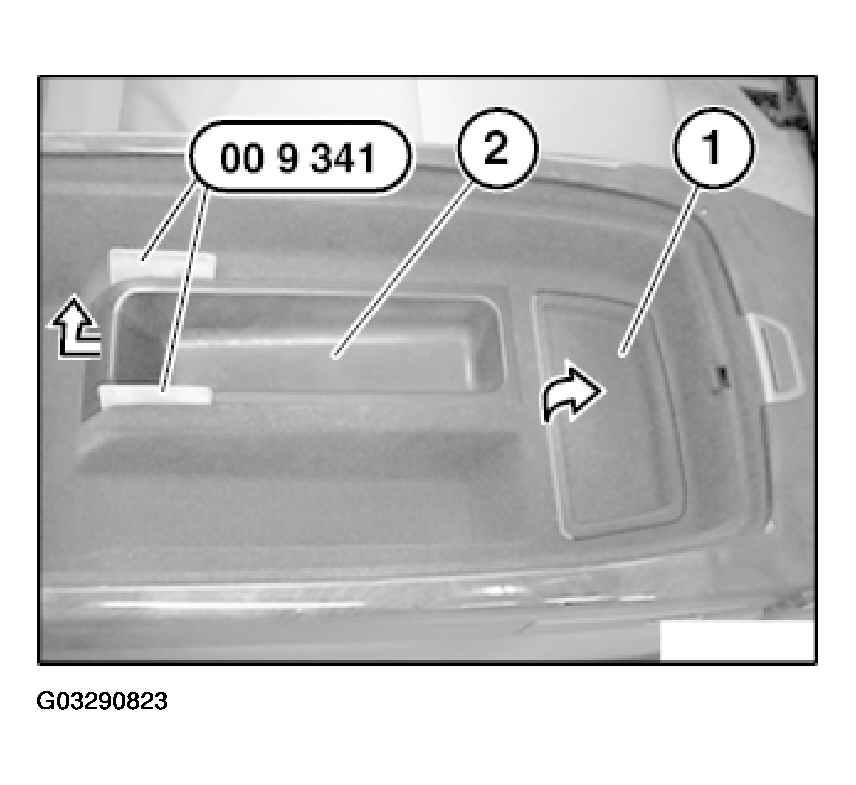

Fig 1: Removing Oddments Tray In Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
