61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322
00 9 341

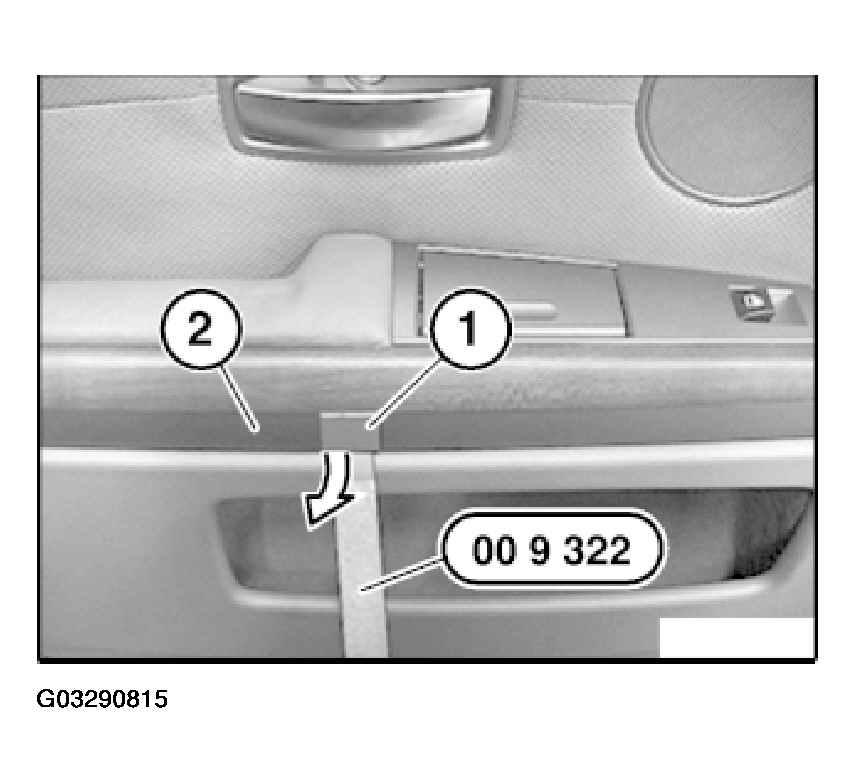

Lever clip (1) with special tool 00 9 322 out of armrest on rear door (2).

Fig 1: Levering Clip Out Of Armrest On Rear Door

G03290815

Courtesy of BMW OF NORTH AMERICA, INC.

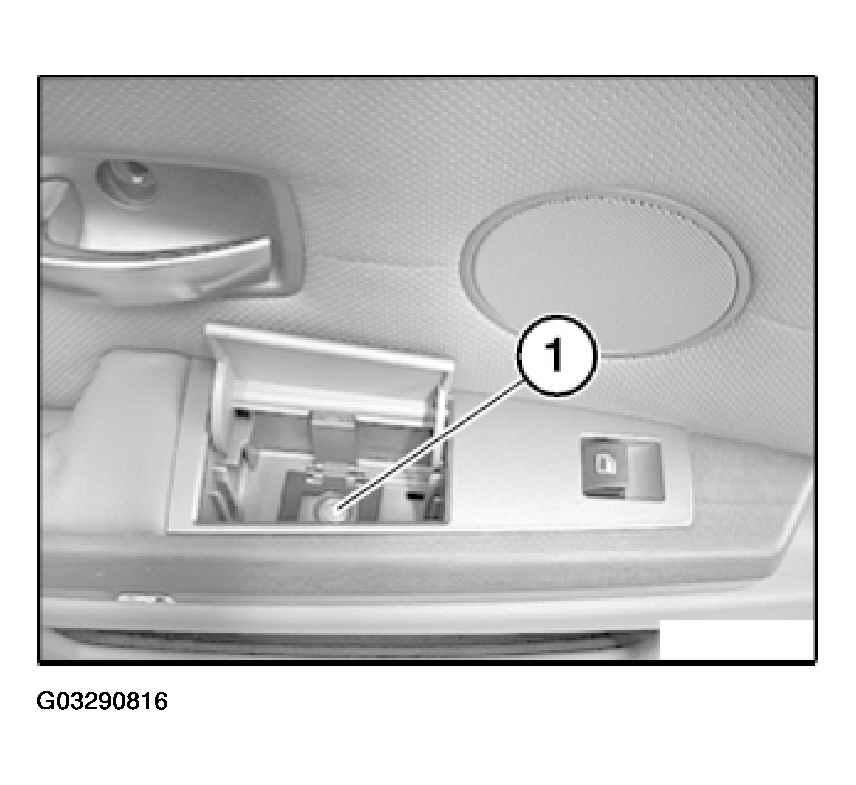

Remove ashtray insert.

Fig 2: Removing Ashtray Insert

G03290816

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

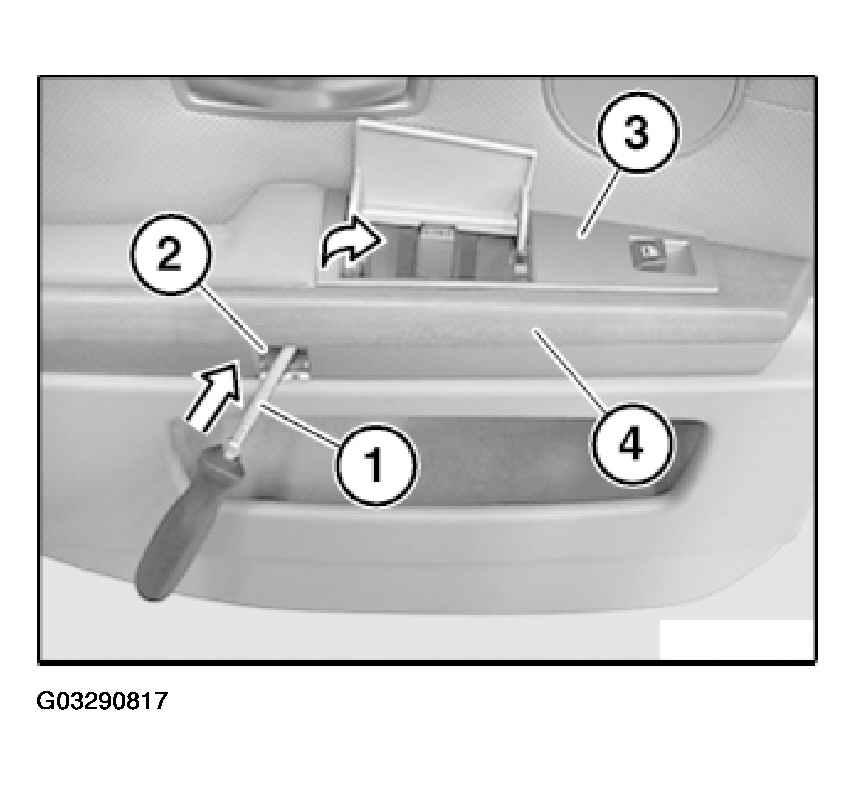

Using a suitable tool (1), press power window switch (3) through opening (2) out of armrest on rear door (4).

Fig 3: Pressing Out Power Window Switch

G03290817

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

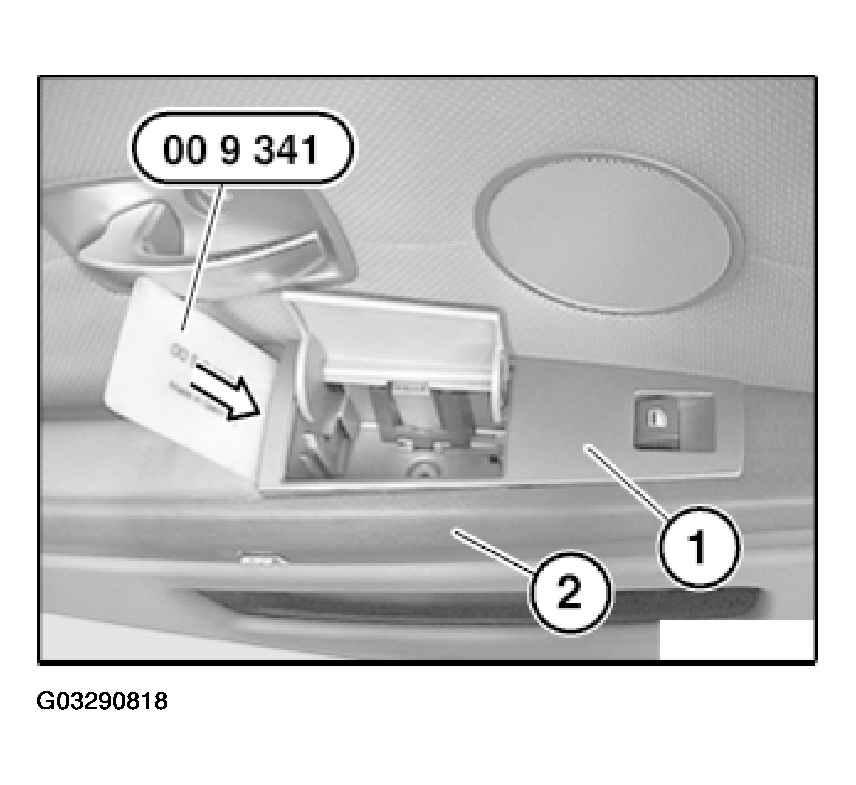

To prevent damage to armrest pad: insert rear power window switch (1) guided by special tool 00 9 341 into armrest on rear door (2).

Fig 4: Inserting Rear Power Window Switch

G03290818

Courtesy of BMW OF NORTH AMERICA, INC.
