61 31 067 Removing and installing/replacing distribution switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

Remove and install flap in luggage compartment panel on right. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

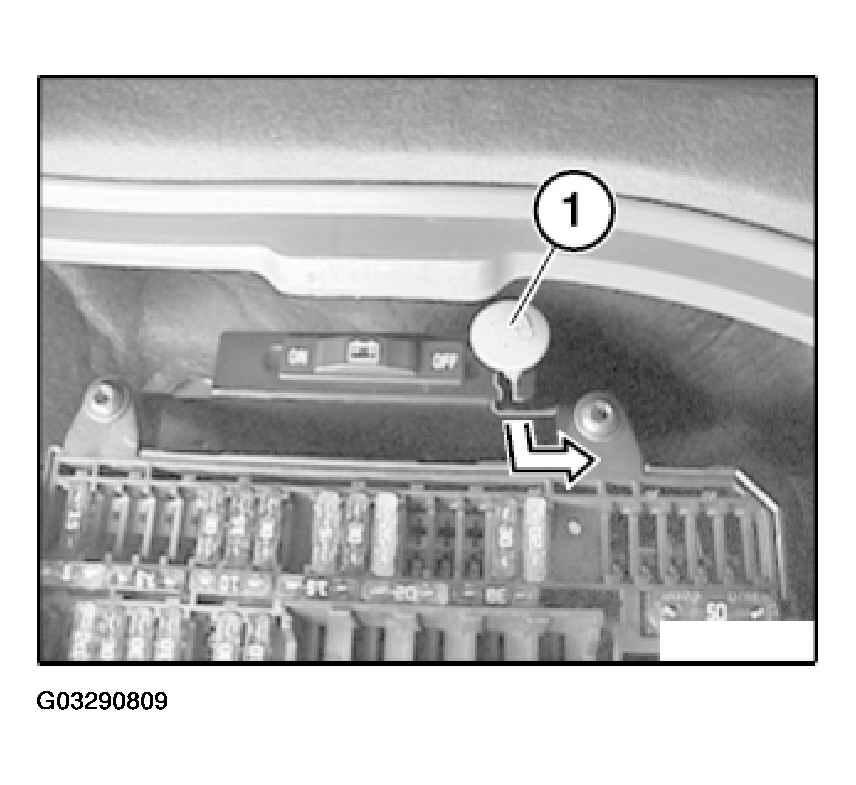

Feed out emergency actuation pull strap (1) in direction of arrow.

Fig 1: Feeding Out Emergency Actuation Pull Strap

Courtesy of BMW OF NORTH AMERICA, INC.

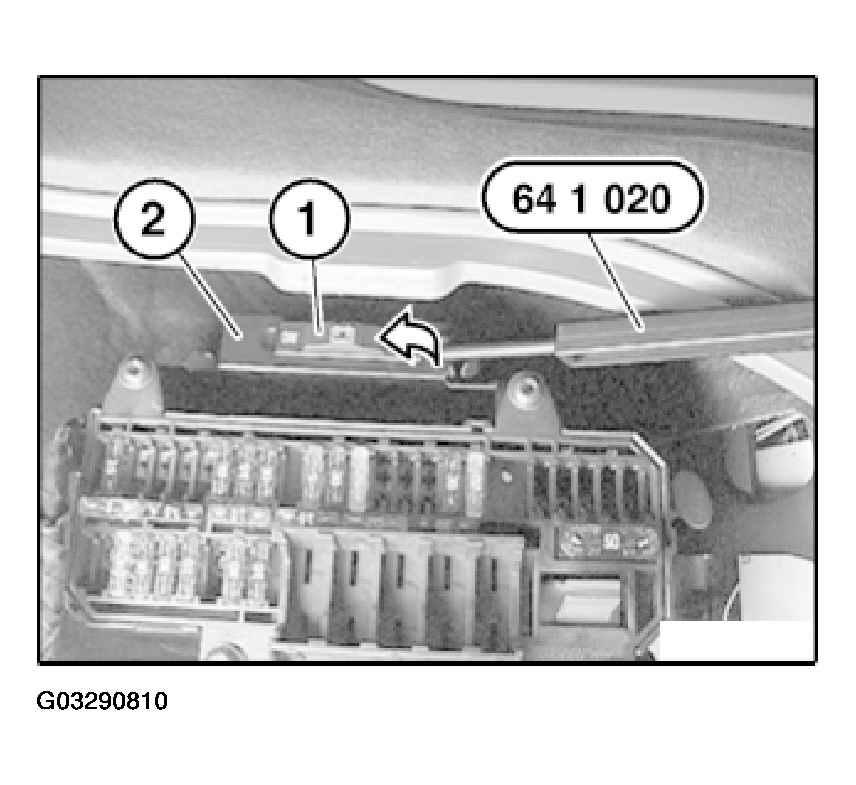

Lever distribution switch (1) with special tool 64 1 020 out of fixture (2).

Fig 2: Identifying Distribution Switch

Courtesy of BMW OF NORTH AMERICA, INC.
