61 31 066 Removing and installing/replacing hotel setting switch
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317
NOTE:
Open storage tray in center armrest.

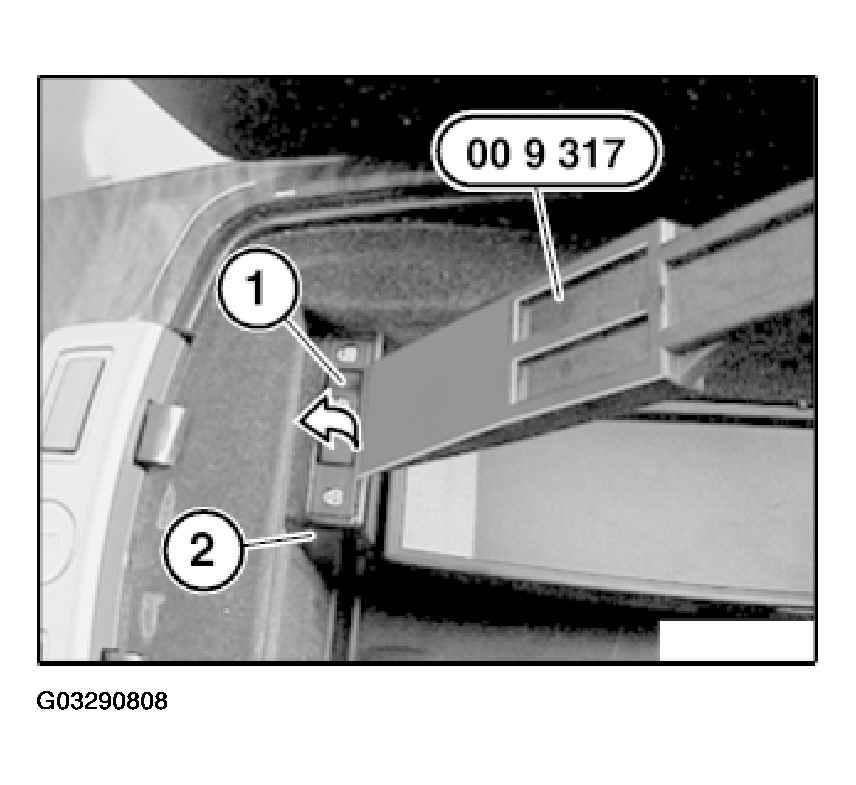

Lever hotel setting switch (1) with special tool 00 9 317 in direction of arrow out of housing (2).
Disconnect plug connection underneath and remove hotel setting switch (1).
