61 31 062 Removing and installing/replacing button for steering wheel heating

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Lever out button for steering wheel heating (1) with special tool 64 1 020.

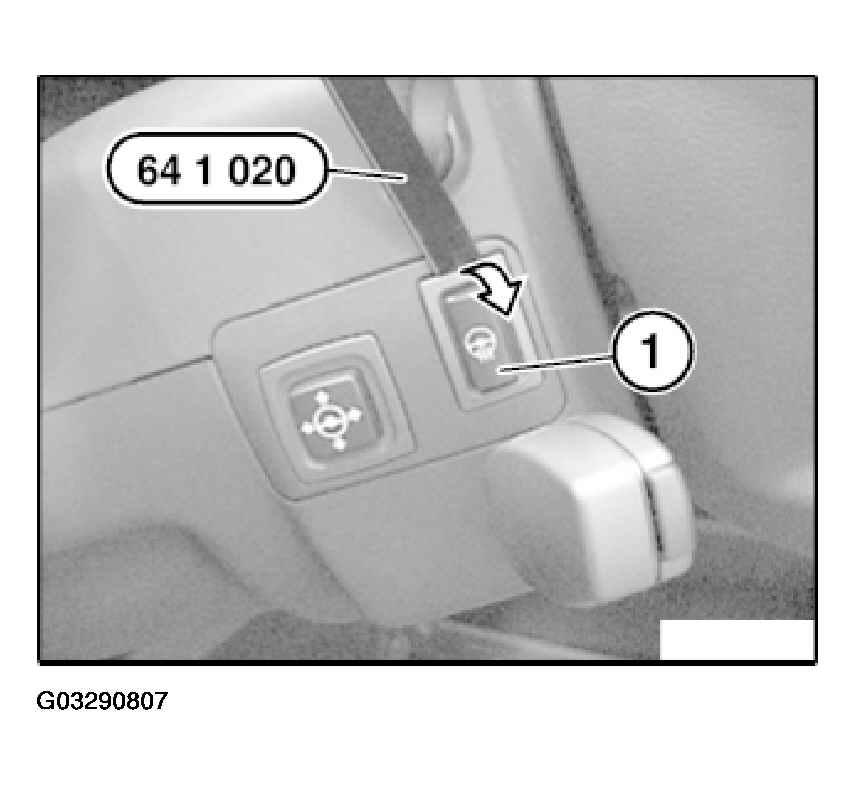

Fig 1: Removing Button For Steering Wheel Heating
G03290807Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection behind and remove button for steering wheel heating (1).
