61 31 040 Removing and installing/replacing stalk for windshield wipers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front section of steering column cover. Refer to STEERING COLUMN COVER UPPER SECTION .

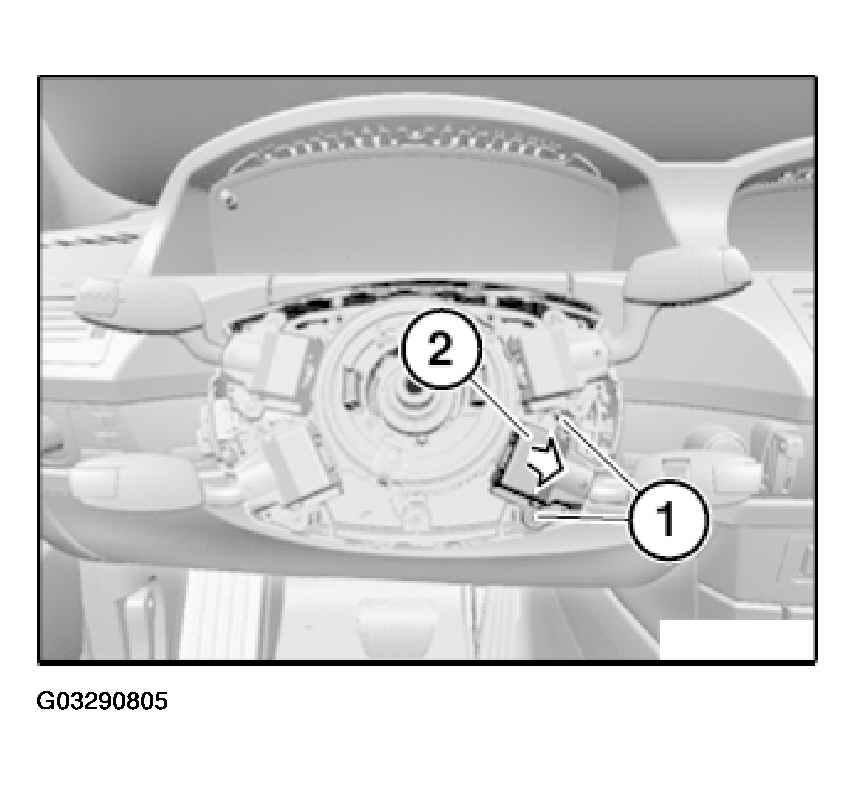

Release screws (1).

Remove windshield wiper switch (2) in direction of arrow.

Fig 1: Removing Windshield Wiper Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

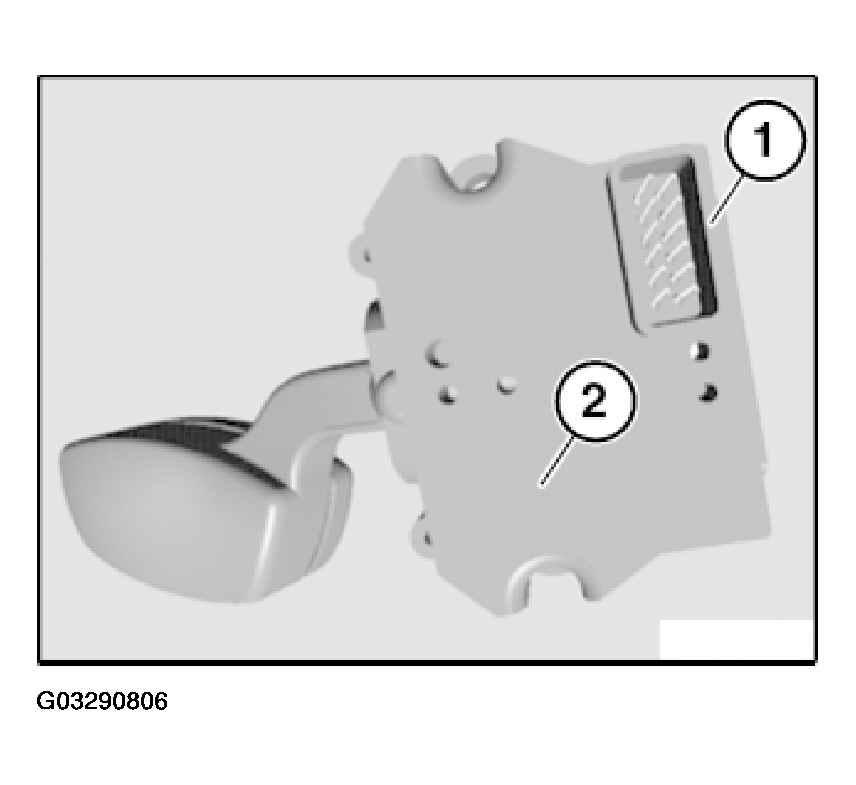

Seat windshield wiper switch (2) with integrated pin housing (1) exactly in fixture for steering column control.

Fig 2: Seating Windshield Wiper Switch

Courtesy of BMW OF NORTH AMERICA, INC.
