61 31 035 Removing and installing/replacing stalk for steering column adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower section of steering column trim. Refer to STEERING COLUMN COVER LOWER SECTION .

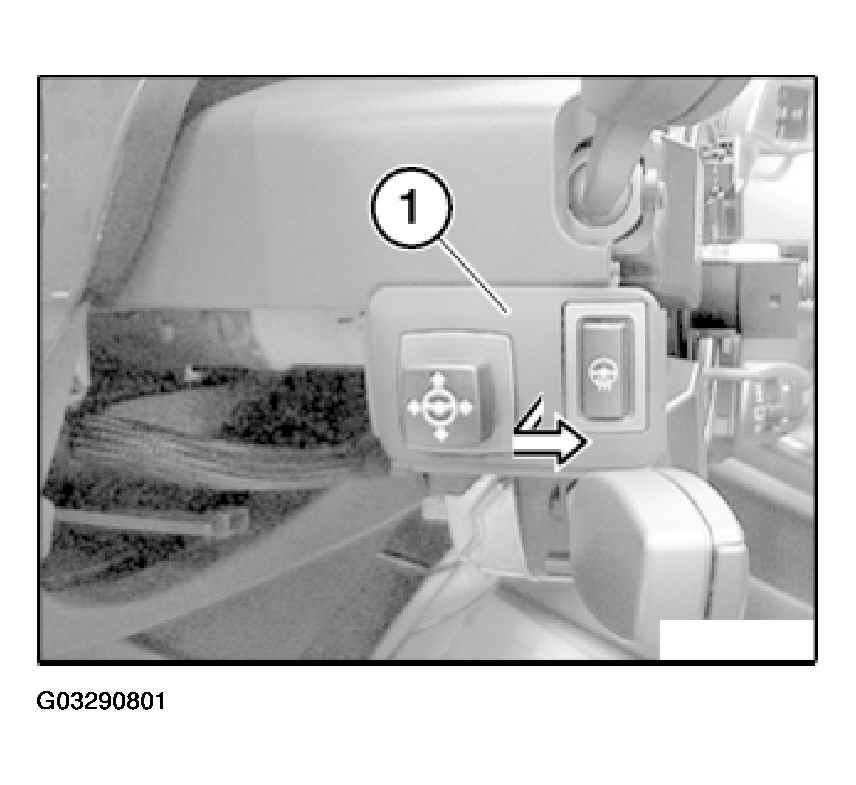

Remove trim (1) in direction of arrow.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

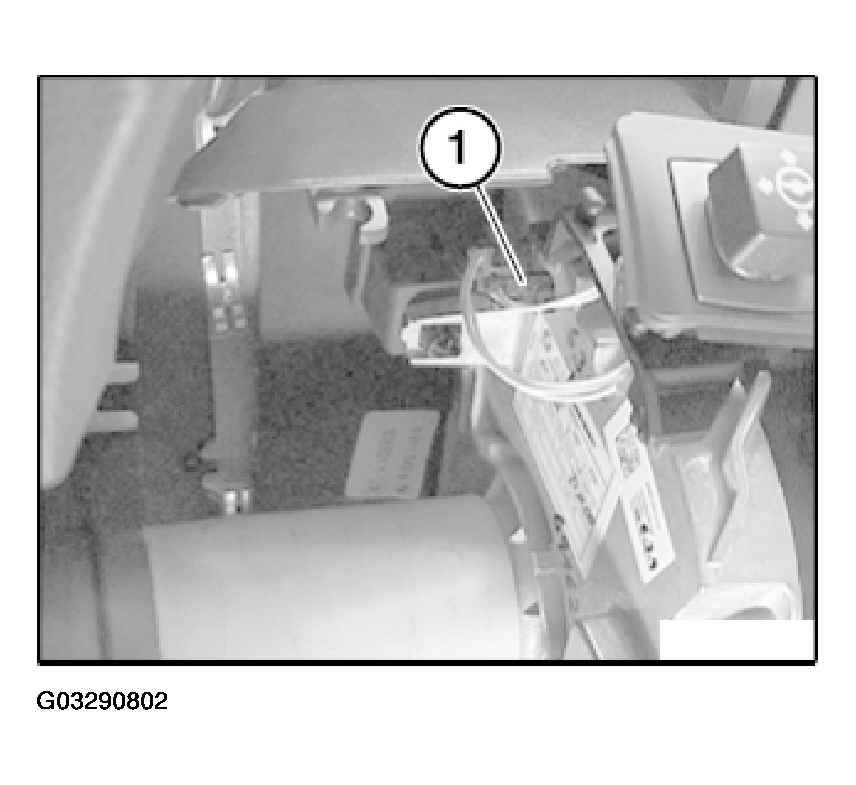

Disconnect plug connection (1).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

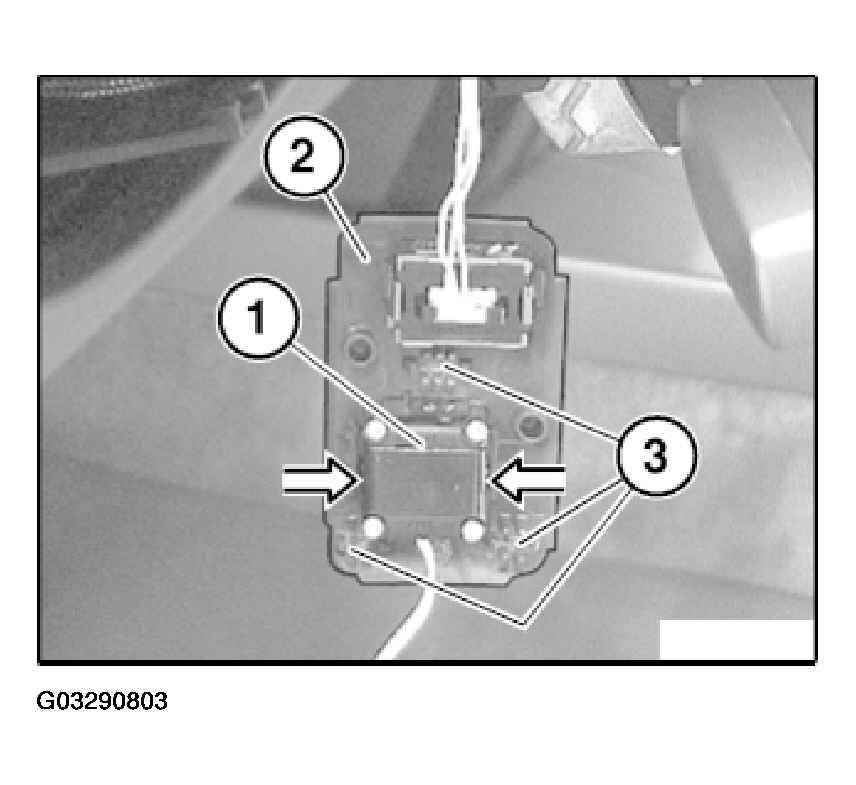

Unlock steering column adjustment switch (1) on both sides and press out of trim (2).

Fig 3: Unlocking Steering Column Adjustment Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounts (3) must not be damaged.
