61 36 540 Replacing relay for air supply unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Extreme cleanliness must be ensured in area of air line connections during removal and installation.
Even the smallest of dirt particles can cause leakage in the system.

Necessary preliminary tasks:

Pull fuse for control unit
Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL
Remove spare wheel. See 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL

IMPORTANT: Do not kink, twist or crush pipes.

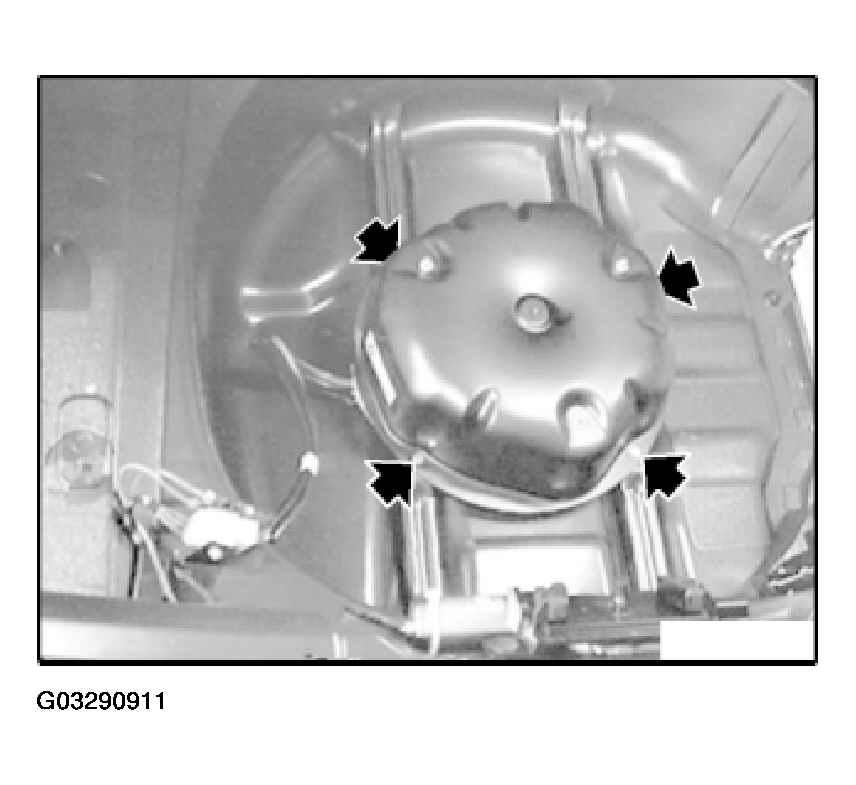

Unfasten screws.

Fig 1: View Of Air Supply System Over

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 9 Nm.

Turn air supply system over.

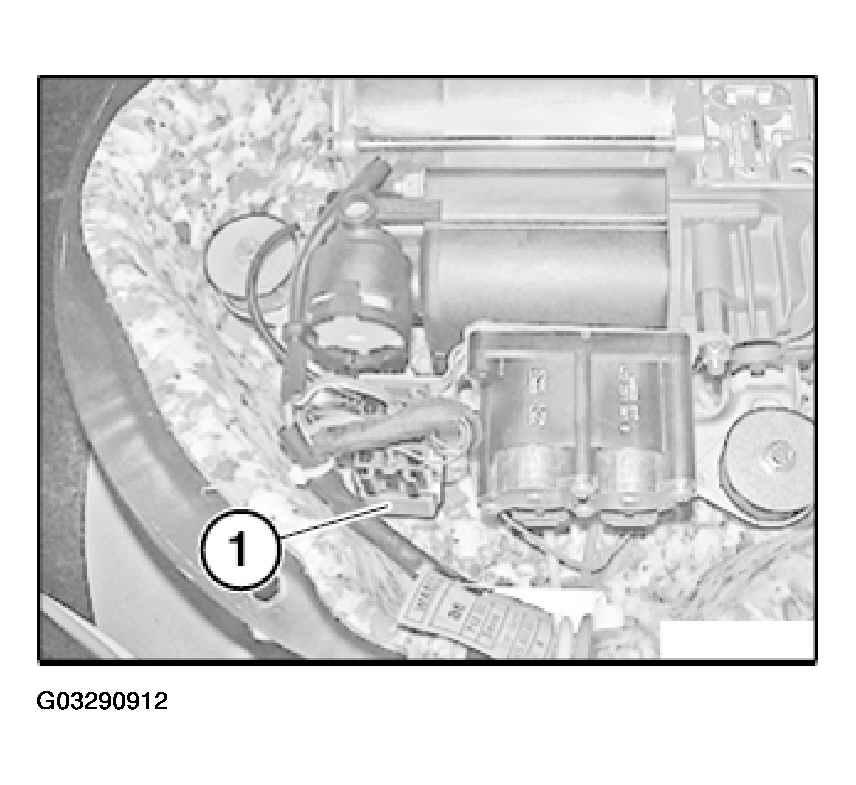

Detach relay (1).

Fig 2: Detaching Relay

Courtesy of BMW OF NORTH AMERICA, INC.
