61 36 530 Removing and installing / replacing cigarette lighter relay

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lower trim from instrument panel, refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT

Release screw (1).

Detach right footwell air duct (2) in direction of arrow and remove towards bottom.

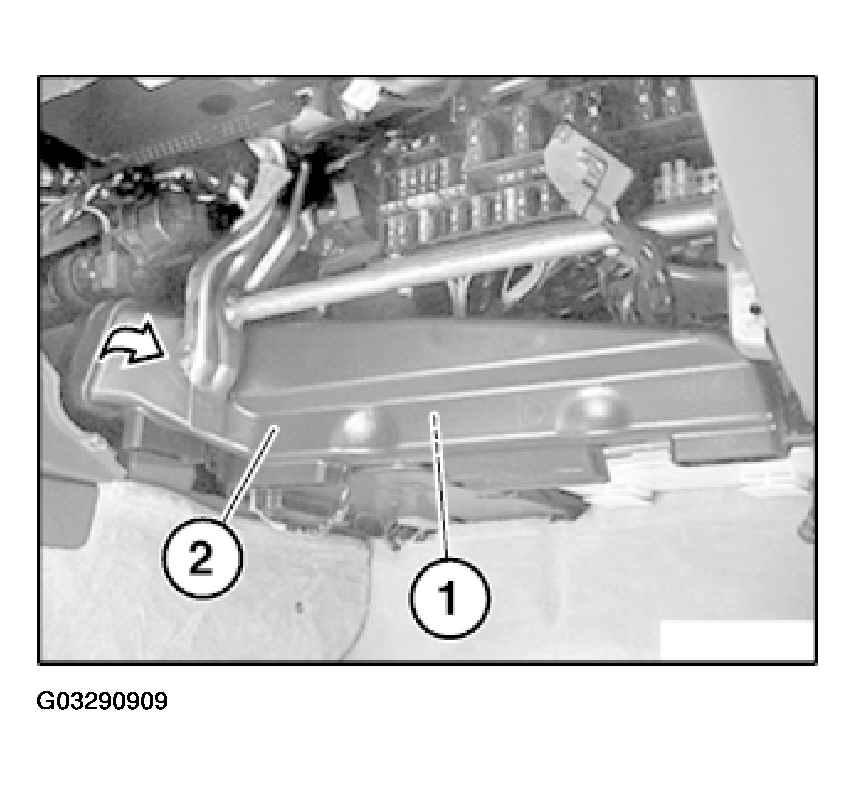

Fig 1: Detaching Right Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure air duct is correctly seated.

Detach relay (1).

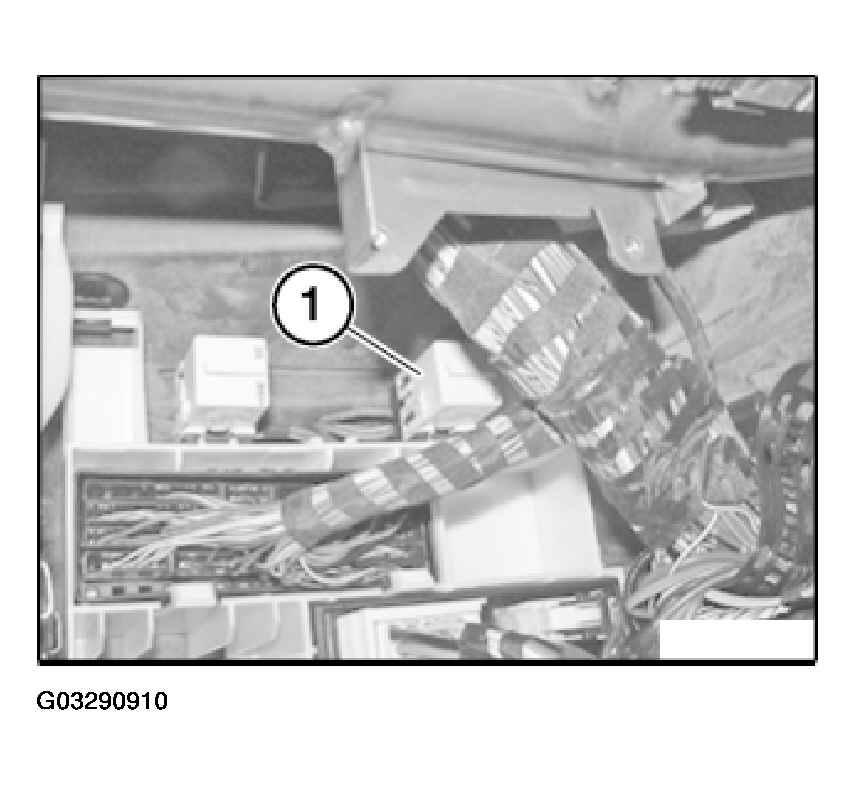

Fig 2: Detaching Relay

Courtesy of BMW OF NORTH AMERICA, INC.
