61 36 510 Removing and installing / replacing wiper heater relay
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove flap in luggage compartment panel on right, refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT
- Open battery cover, refer to 61 21... REMOVING AND INSTALLING / REPLACING BATTERY COVER

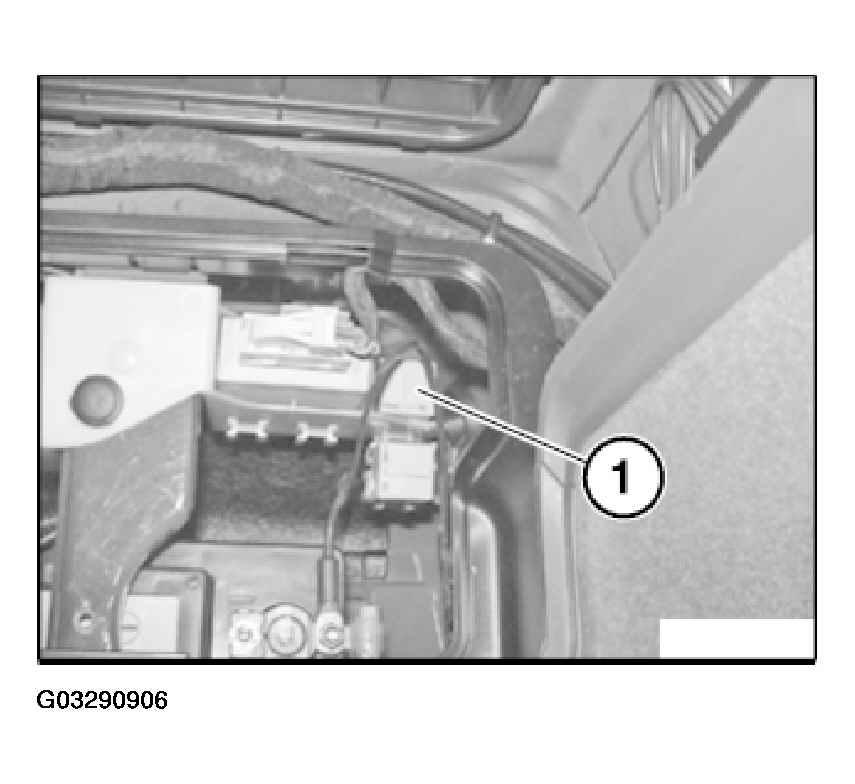

Detach relay (1).
