Stripping insulation from optical fibre

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

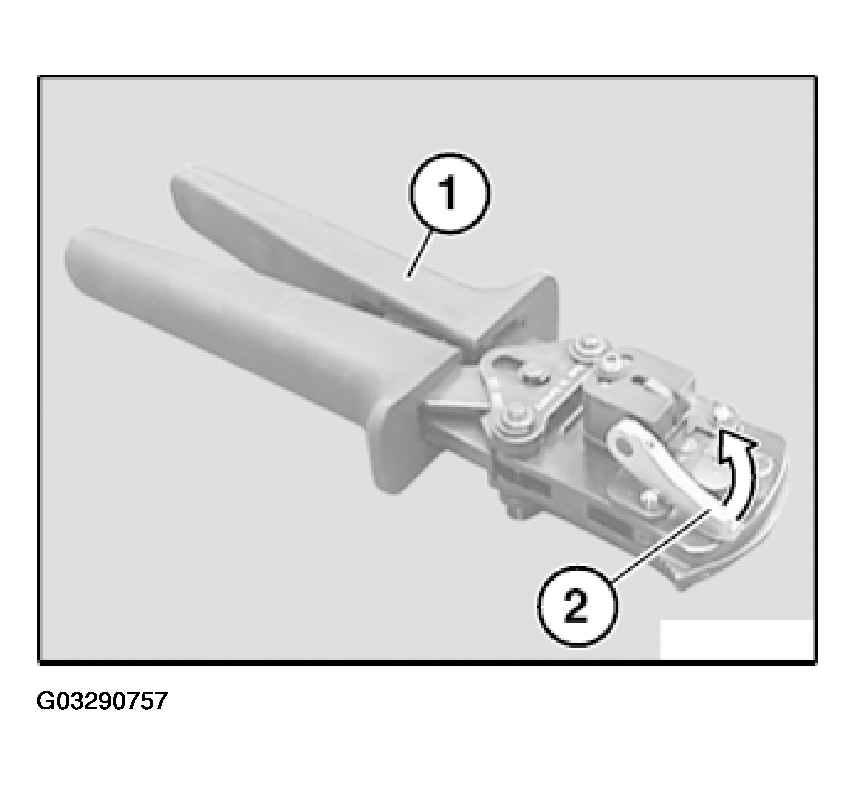

Open pliers (1).

Fig 1: Stripping Insulation From Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.

Open lever (2) in direction of arrow.

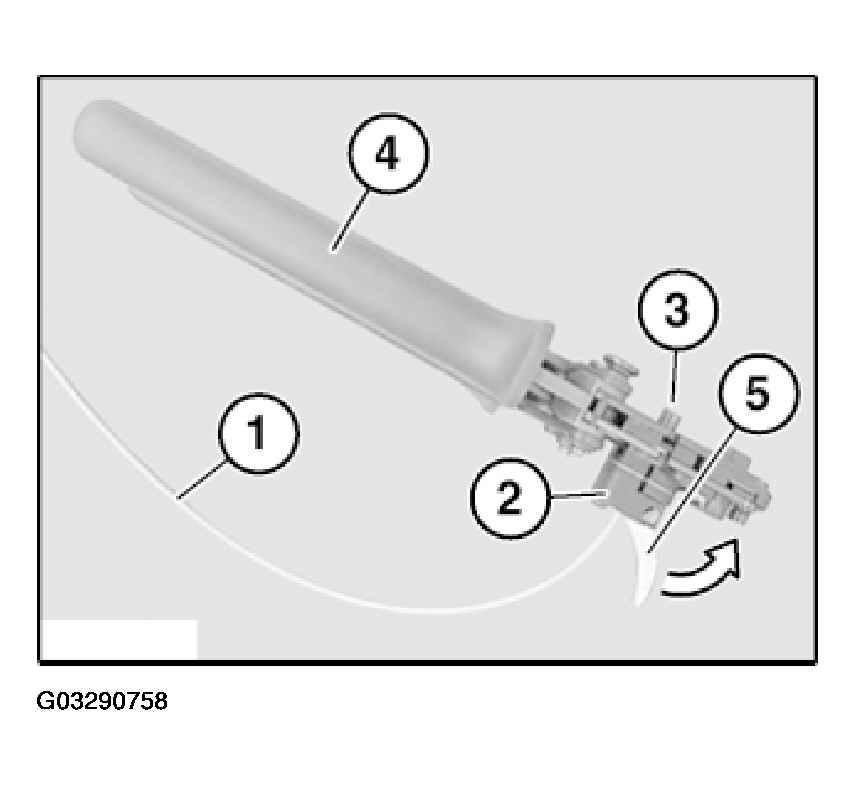

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Fig 2: Sliding Optical Fibre Into Stripping Device

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.
