Cutting optical fibre to length

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

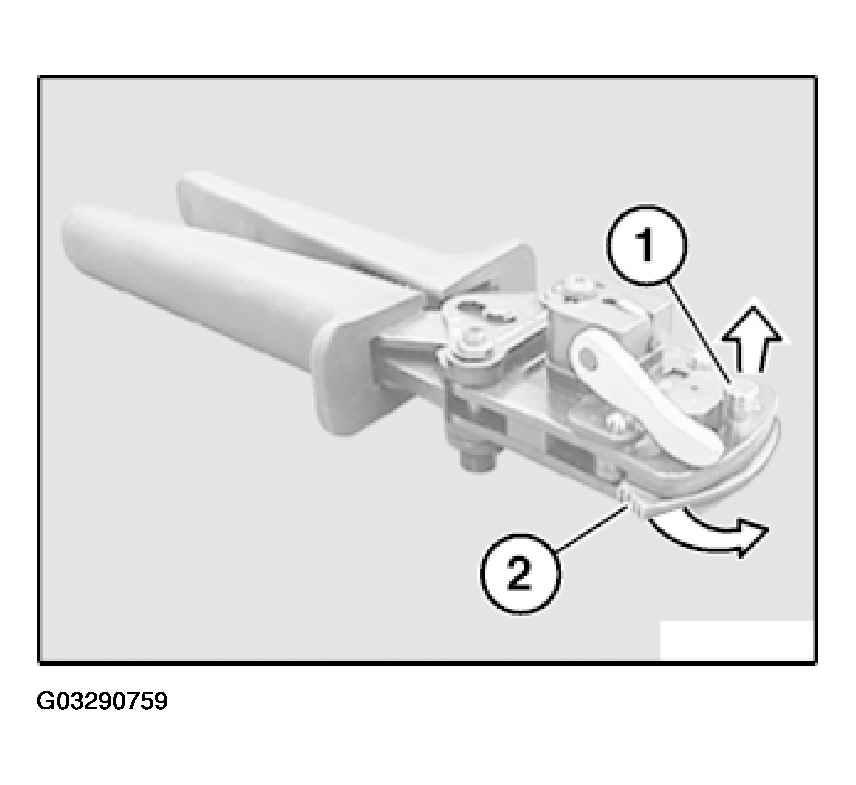

Fig 1: Folding Up Blade Retaining Link

G03290759

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up blade retaining link (2) in direction of arrow.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

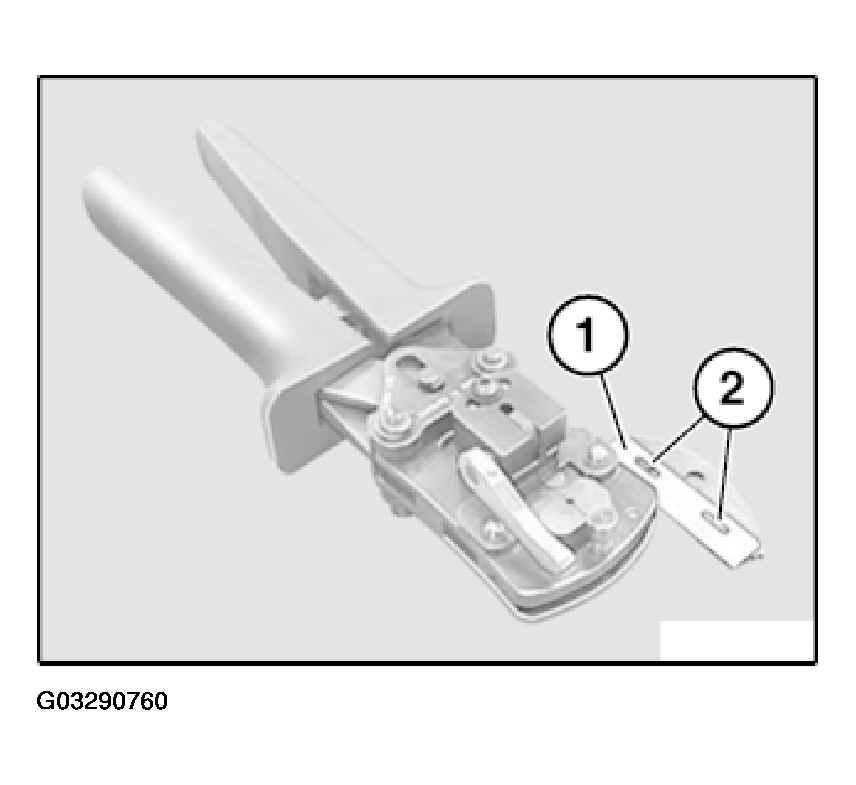

Fig 2: Removing Blade

G03290760

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

Open pliers (3).

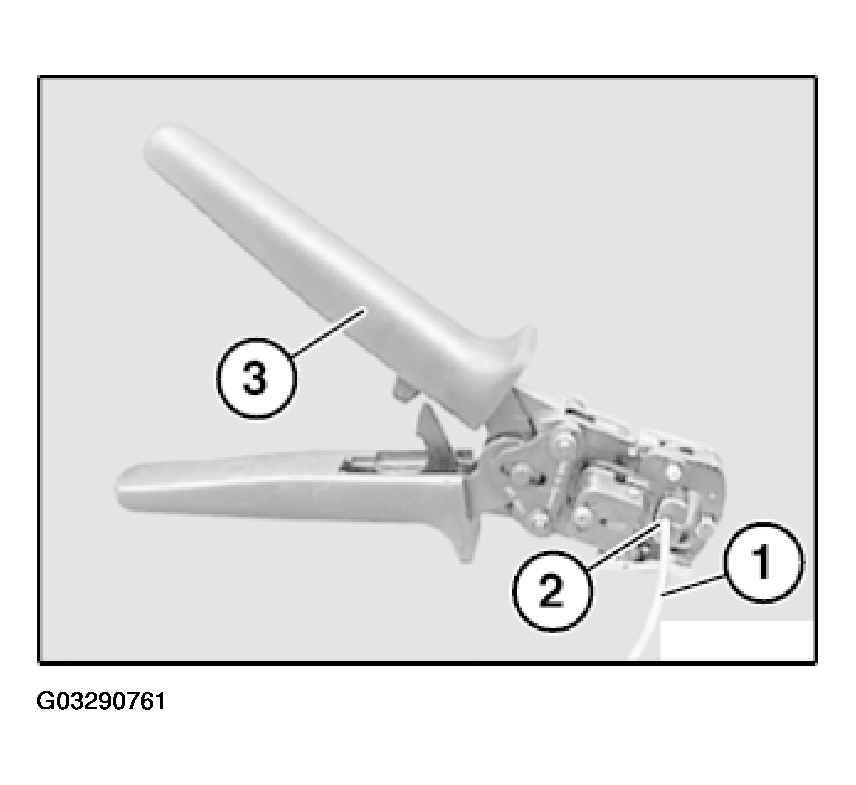

Fig 3: Cutting Optical Fibre

G03290761

Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).
