61 35 970 Removing and installing/replacing rear luggage compartment antenna for comfort access system

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

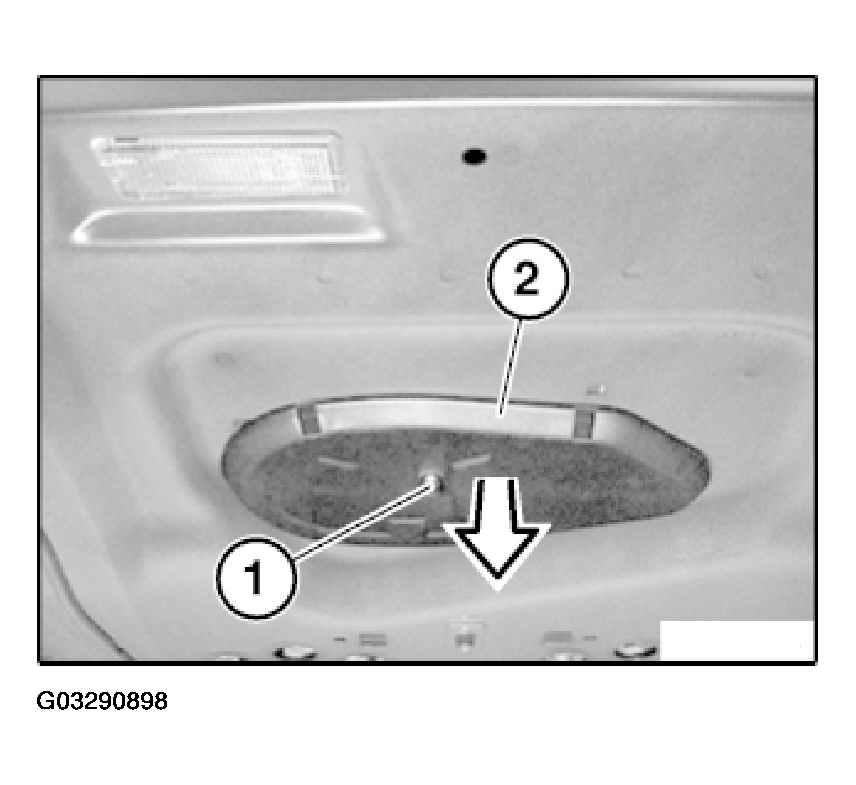

Release screw (1) and lower luggage compartment antenna for comfort access system (2) in direction of arrow.

Fig 1: Releasing Screw Of Lower Luggage Compartment Antenna For Comfort Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure positioning pins on upper side of luggage compartment antenna for comfort access system (2) are correctly seated in designated bores.

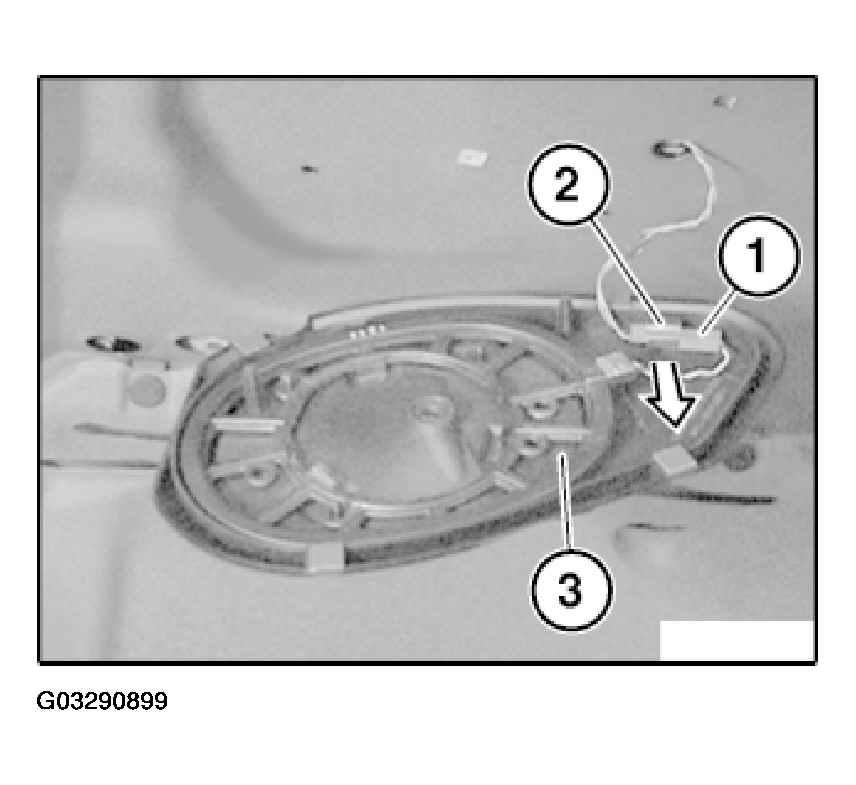

Unclip plug connection (1) from fixture (2) and disconnect.

Fig 2: Removing Luggage Compartment Antenna For Comfort Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Remove luggage compartment antenna for comfort access system (3).
