61 35 965 Removing and installing/replacing rear parcel antenna for comfort access system
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove panel for parcel shelf. Refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF .

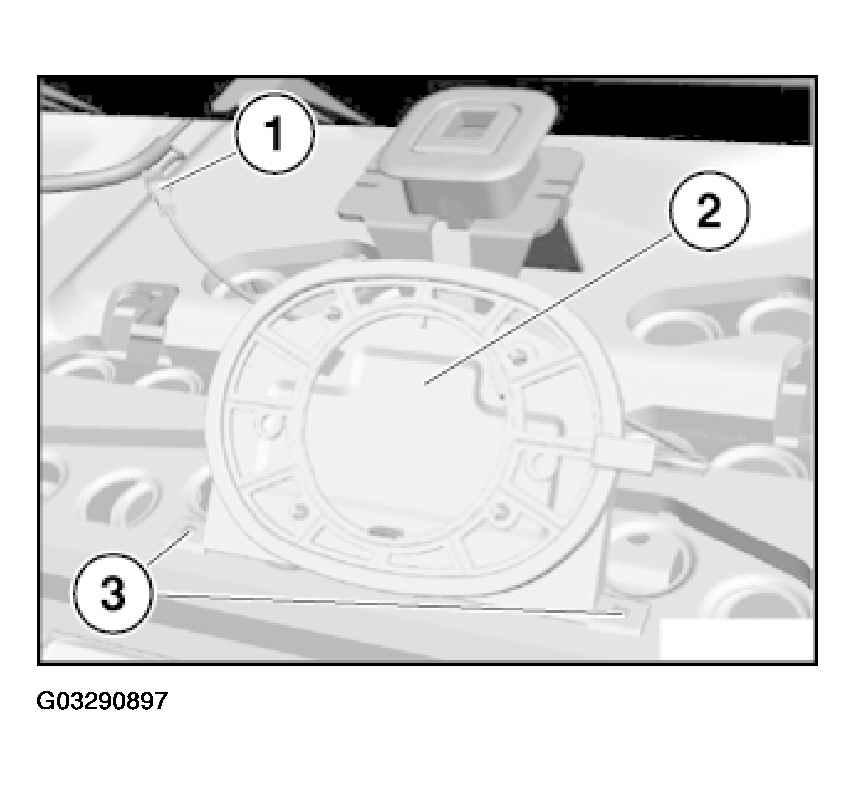

Unlock plug connection (1) and disconnect.
Release screws (3) and remove rear parcel antenna for comfort access system (2).
