61 35 960 Removing and installing/replacing interior antenna for comfort access system - driver's side rear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for left (bottom) door pillar. Refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .
Remove rear (inside) left entrance cover strip. Refer to 51 47 030 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, REAR (INSIDE) LEFT OR RIGHT .

Release expansion rivets (1).

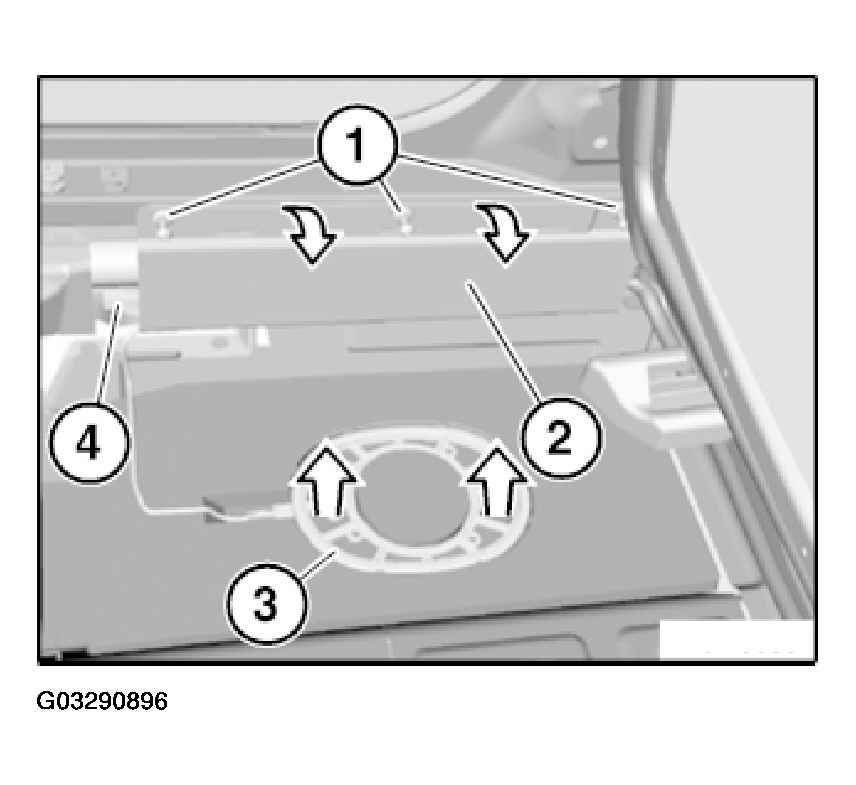

Fig 1: Removing Interior Antenna For Comfort Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up cable duct (2).

Unlock plug connection (4) and disconnect.

Remove interior antenna for comfort access system (3) in direction of arrow.
