61 35 955 Removing and installing/replacing interior antenna for comfort access system - driver's side front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove footwell side trim panel on A-pillar on left. Refer to 51 43 070 REMOVING AND INSTALLING / REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT .
Remove left front seat. Refer to 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .

Release expansion rivets (1).

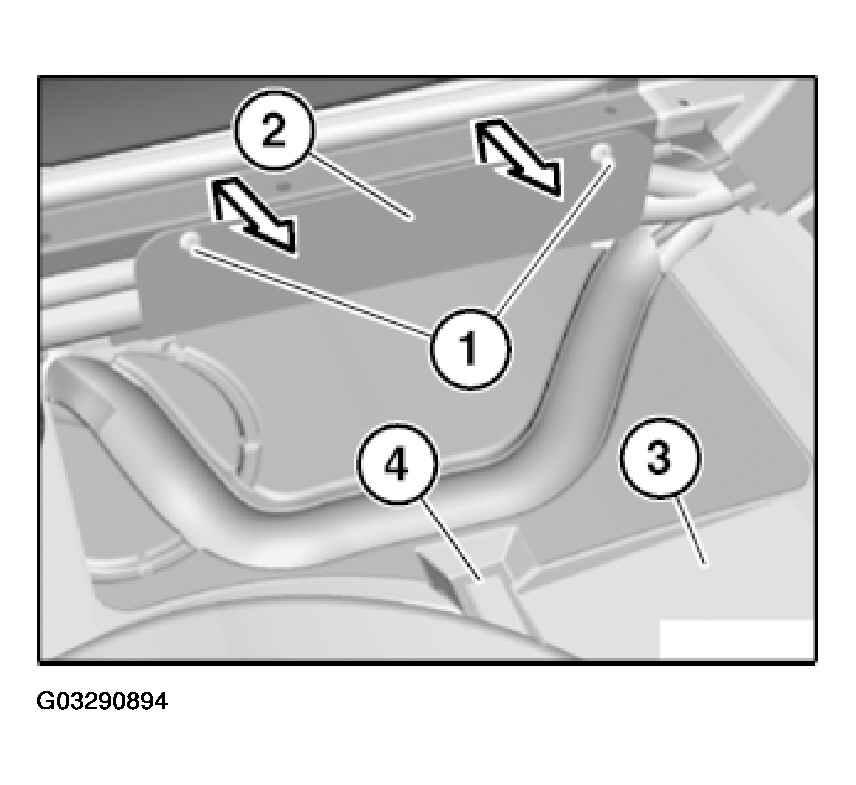

Fig 1: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up cable duct (2) cover in direction of arrow and remove from floor trim panel (3).

Installation:

Feed guide (4) of cable duct cover (2) correctly in floor trim panel (3).

Unlock plug connection (1) and disconnect.

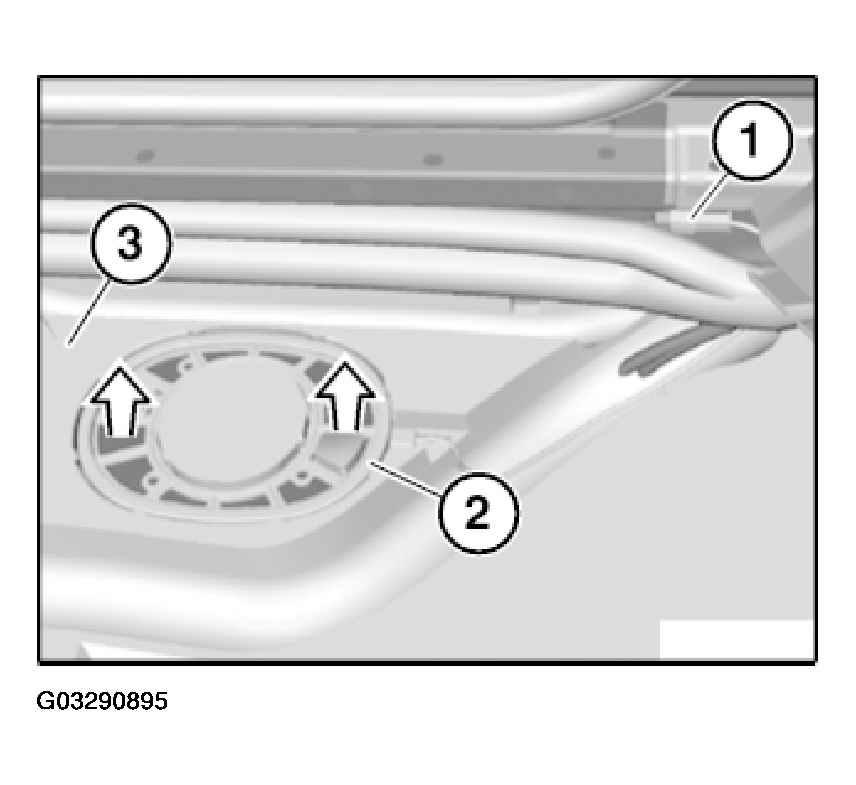

Fig 2: Removing Interior Antenna For Comfort Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Remove interior antenna for comfort access system (2) from floor trim panel (3).
