61 35 950 Removing and installing (replacing) control unit for comfort access system
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove flap in luggage compartment panel on right. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .

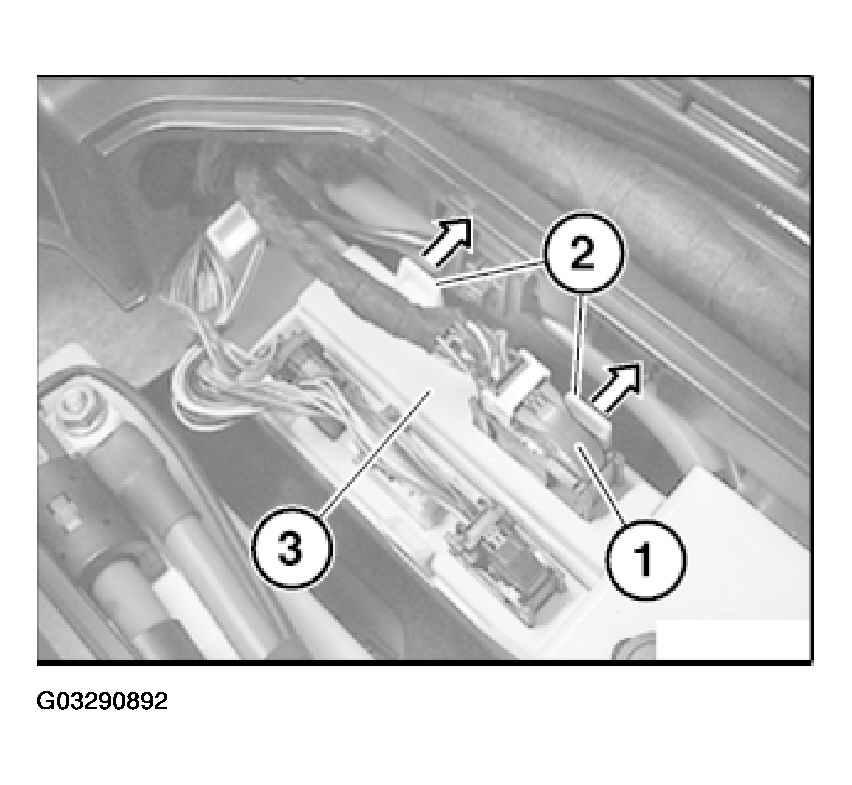

Unlock plug connection (1) and disconnect.
Open catches (2) in direction of arrow and remove control unit for comfort access system (3) towards top.
Replacement:

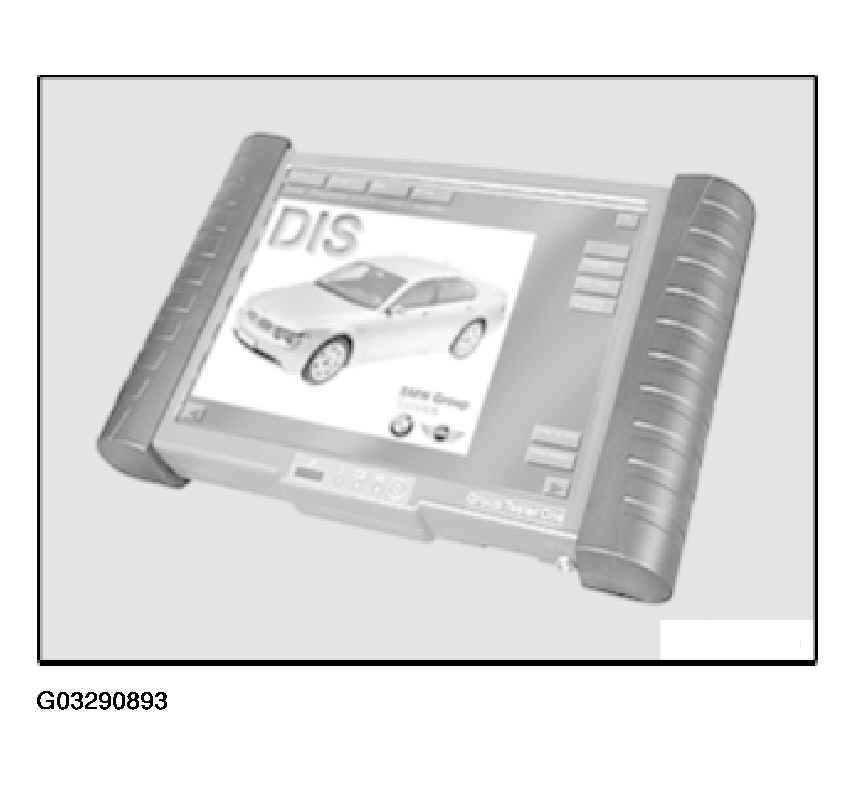

Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- If necessary, car & key memory
- CD "CIP"
