61 35 220 Removing and installing (replacing) control unit for left or right front door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

CAUTION: Risk of mixing up plugs for door lock and control unit!
Mark relevant plugs prior to removal.

Disconnect plug connections (1).

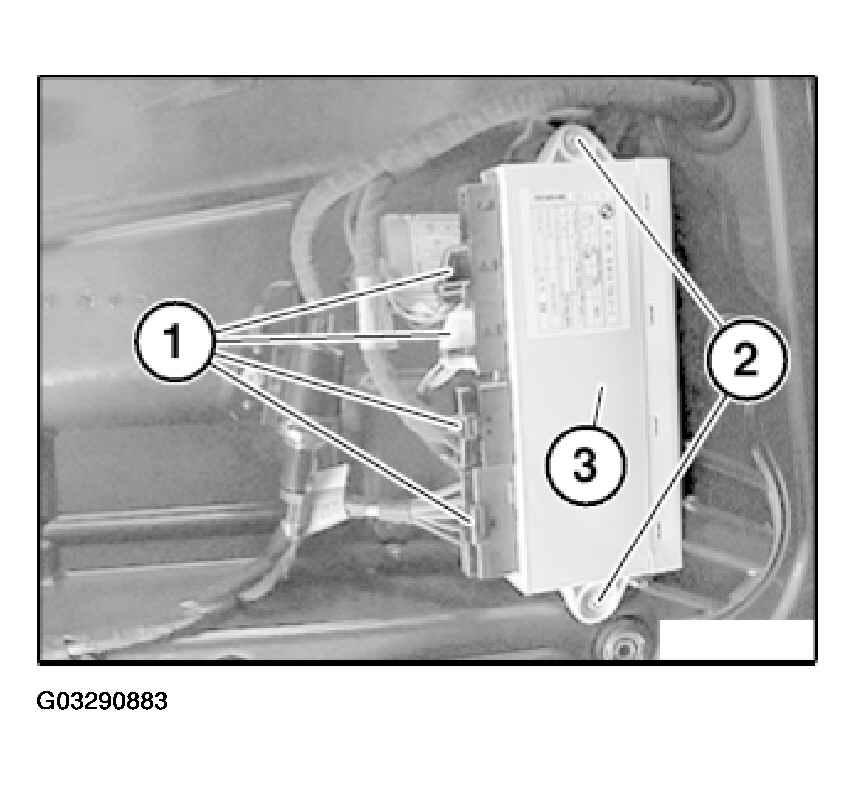

Fig 1: Removing Control Unit In Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove control unit in front door (3).

Replacement:

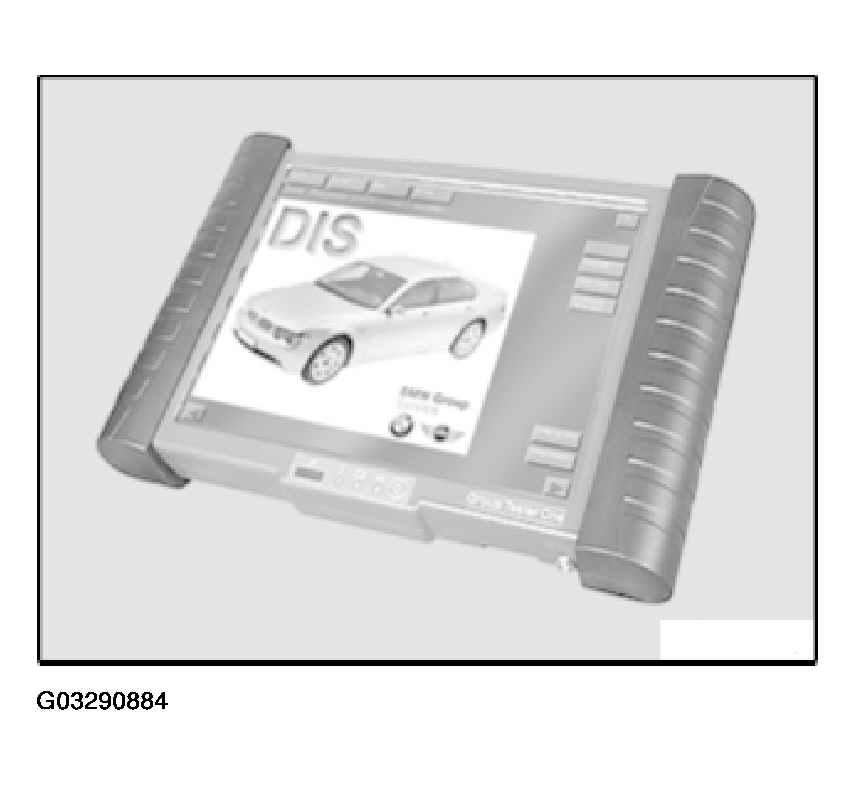

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize control unit in front door. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
