61 35 091 Removing and installing control unit for seat heating (normal rear seat)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove backrest for left or right rear seat. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .

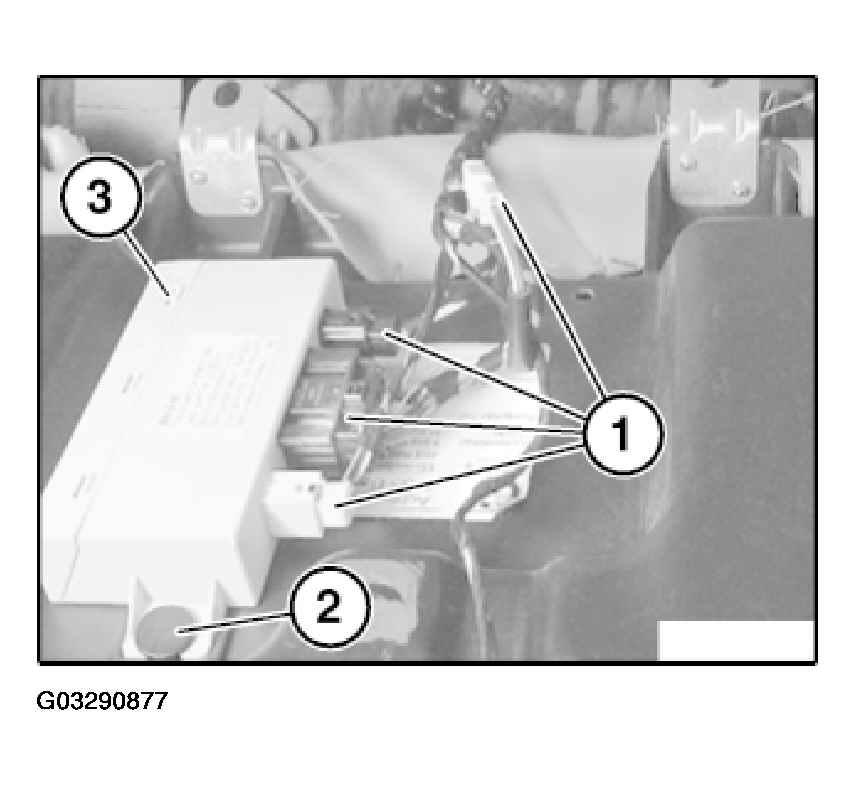

Disconnect plug connections (1).
Unclip clip (2) and remove control unit for seat heating (3).
