61 35 085 Removing and installing (replacing) control unit for left or right seat adjustment (rear seat)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

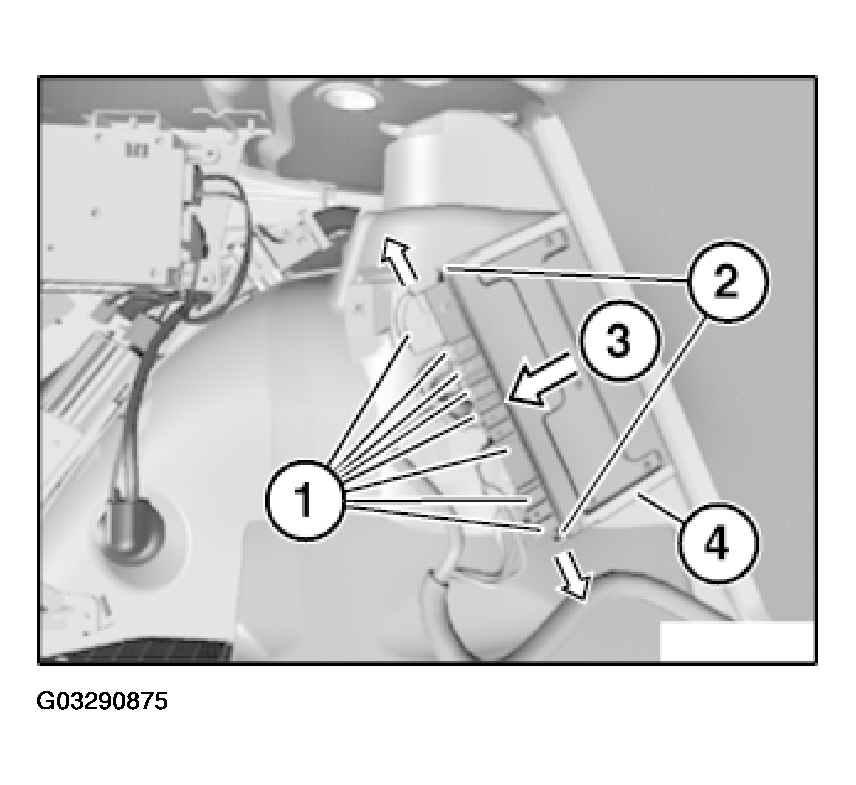

Disconnect all plug connections (1).

Fig 1: Disconnecting All Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (2), feed control unit for seat adjustment (3) in direction of arrow out of holder (4) and remove.

Replacement:

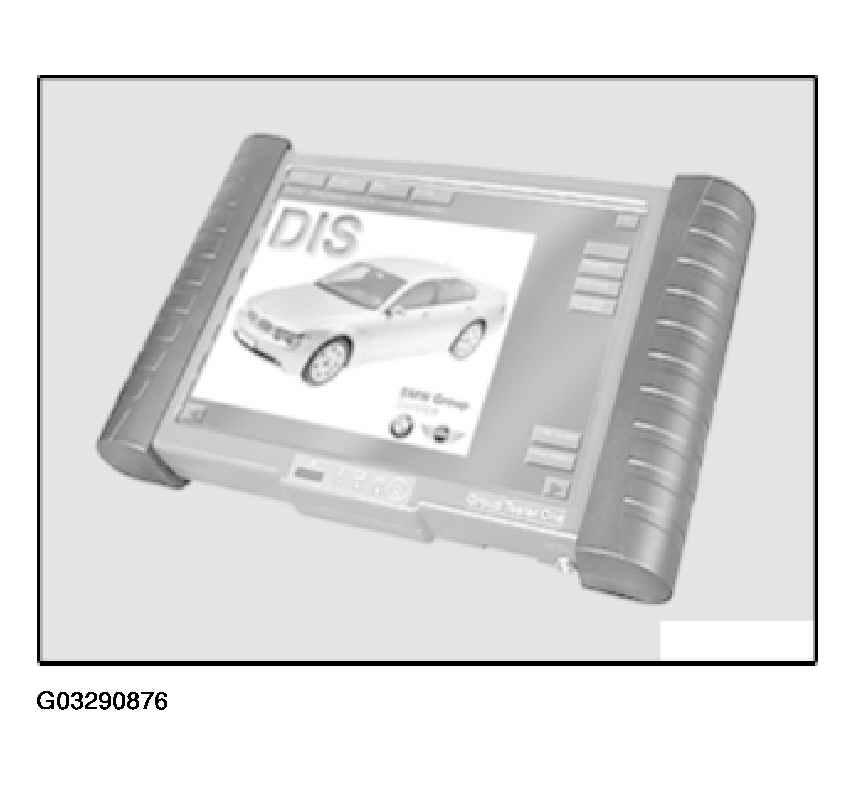

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
