54 12 497 Removing and installing/replacing draft deflector for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Open glass sunroof lid.

Lever out springs (1) on left/right.

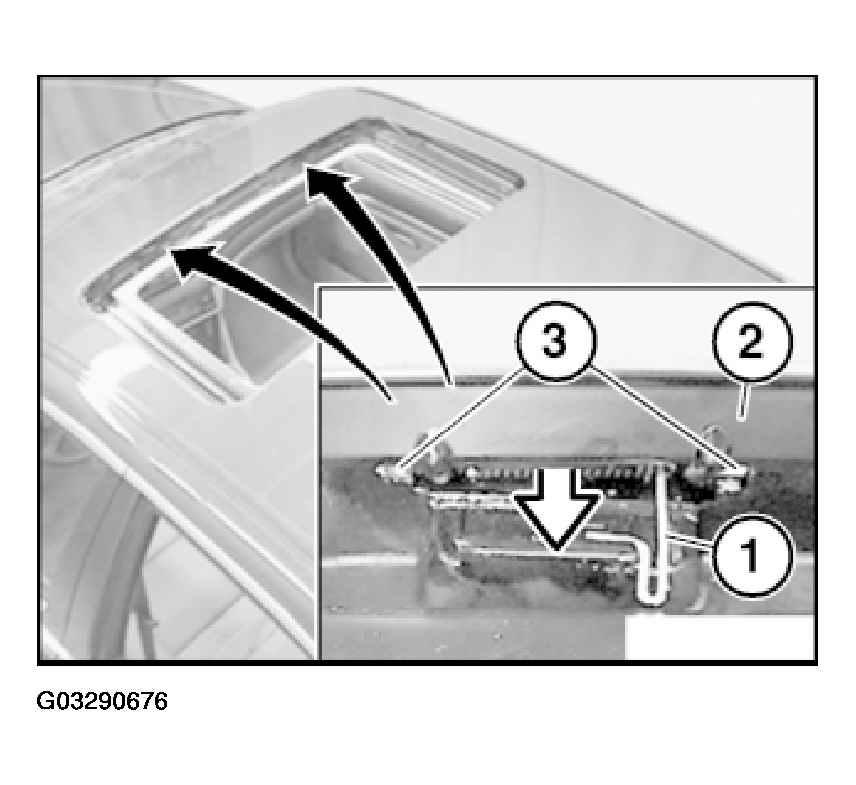

Fig 1: Levering Out Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Pull draft deflector (2) towards rear out of mounting (3).

Installation:

Carry out function check.

Installation:

Insert retaining pins (1) of draft deflector (2) into mountings (4).

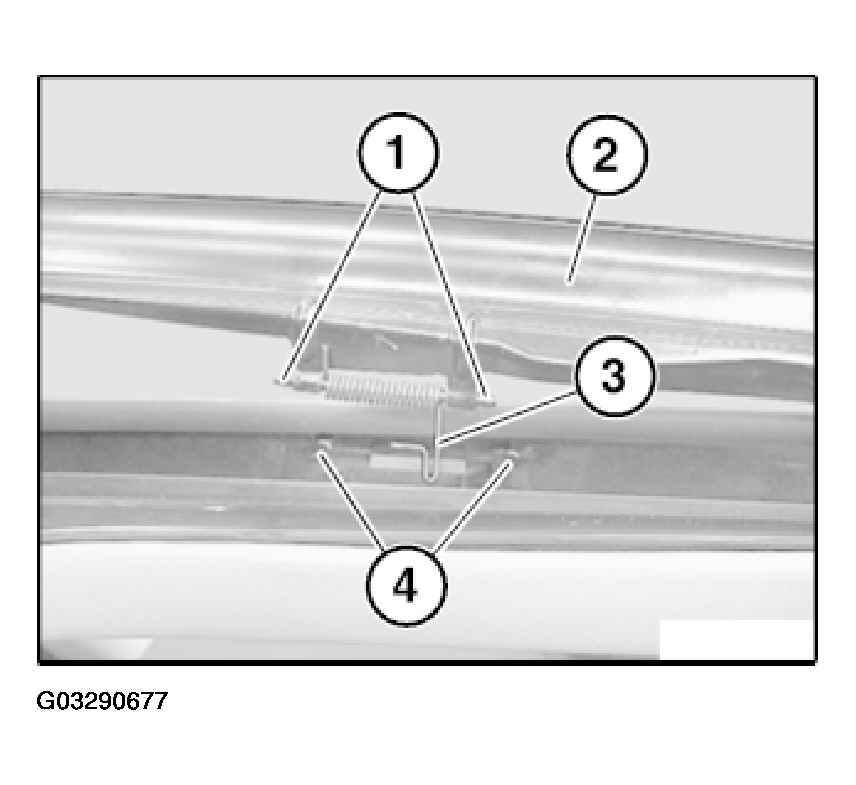

Fig 2: Inserting Retaining Pins Of Draft Deflector Into Mountings

Courtesy of BMW OF NORTH AMERICA, INC.

Spring (3) must snap into place correctly.

Position draft deflector (1) vertically and pull together with levers (2) on left/right upwards out of mounts (3).

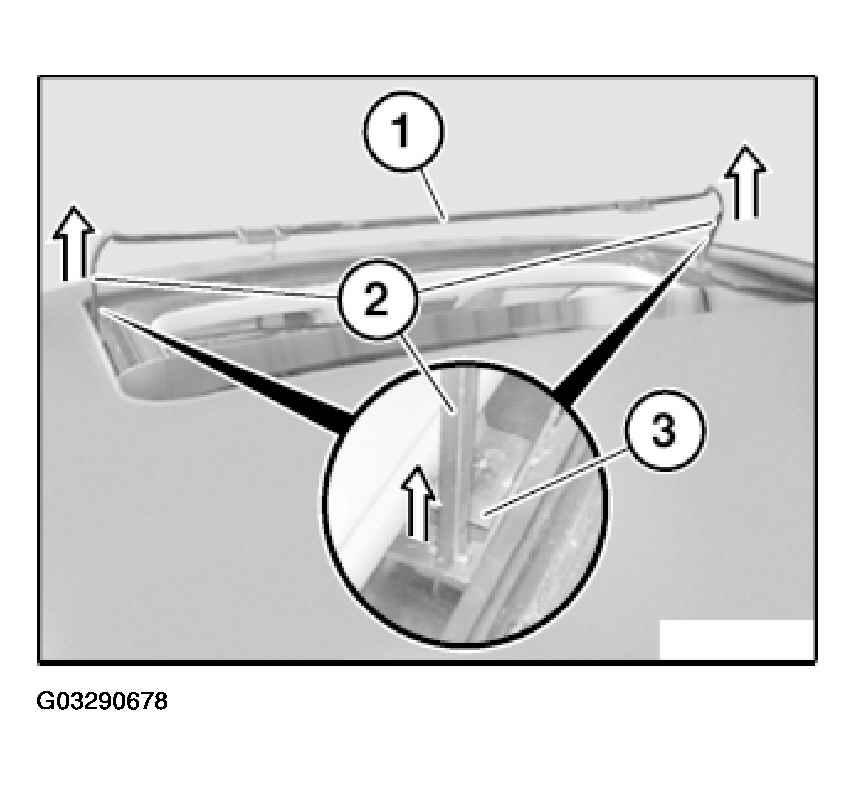

Fig 3: Positioning Draft Deflector Vertically

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Turn lever (1) until lock (3) is flush with opening (2) and feed lever (1) out of draft deflector (4).

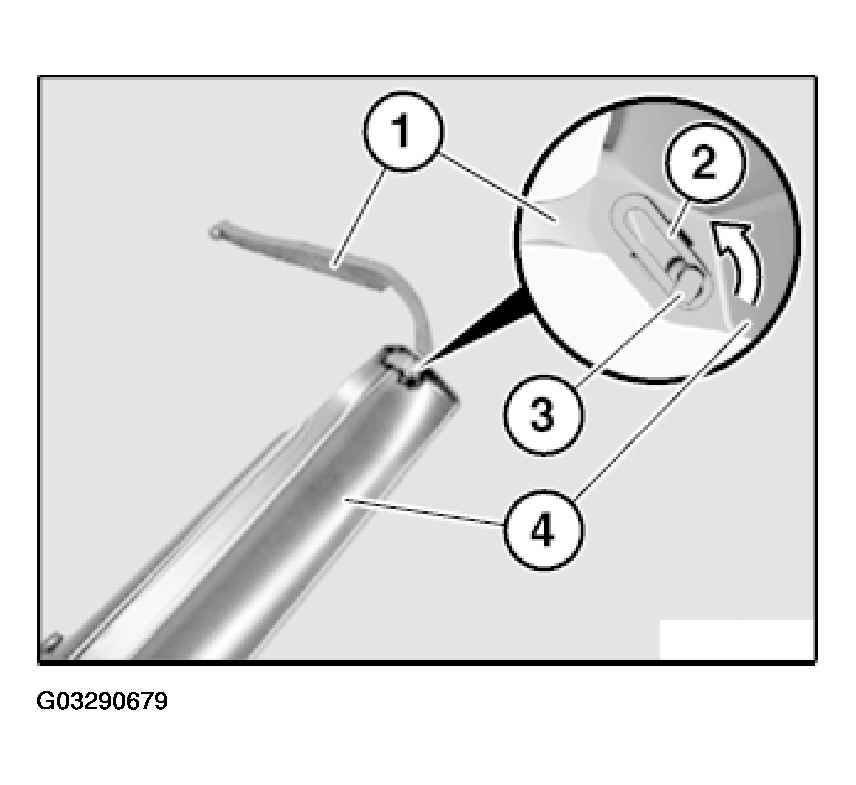

Fig 4: Turning Lever

Courtesy of BMW OF NORTH AMERICA, INC.
