54 12 115 Removing and installing glass slide/tilt sunroof lid
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove gaiter on left and right, refer to 54 12 015 REPLACING LEFT OR RIGHT GAITER FOR GLASS SLIDE/TILT SUNROOF

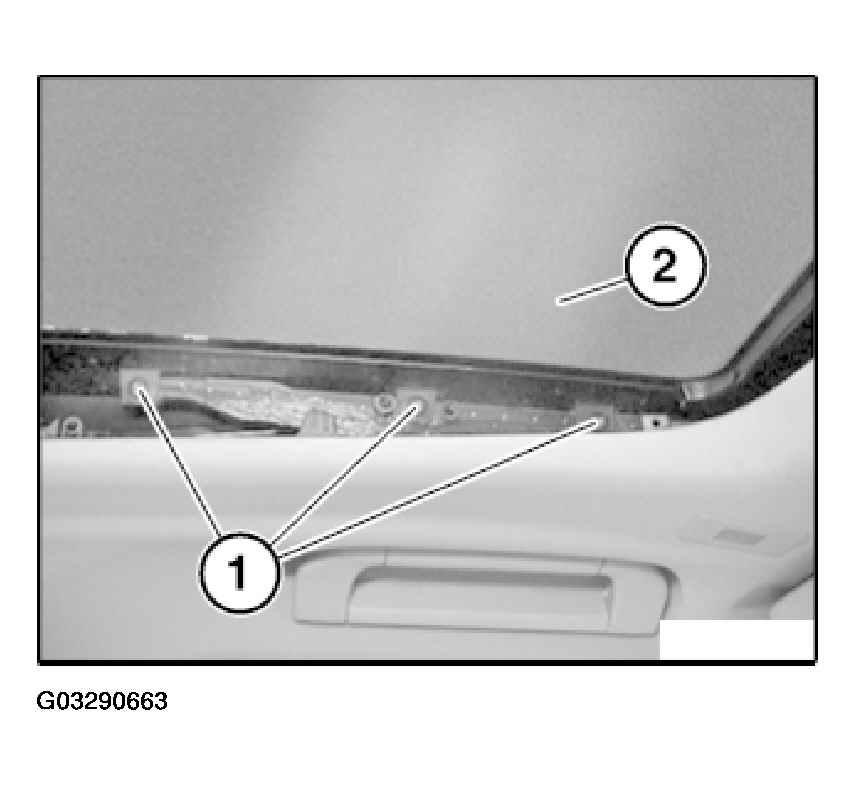

Release left and right screws (1).
Remove glass sunroof lid (2) towards top.
Installation:
Replace screws (1).
Insert screws (1) but do not tighten down yet.
Adjust and initialize sunroof lid. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) and 54 12 003 ADJUSTING GLASS SLIDE/TILT SUNROOF LID .
