54 12 ... Replacing complete seal for glass slide/tilt sunroof (frame)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove complete glass slide/tilt sunroof (frame) refer to 54 12 211 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF (FRAME)

Mark one end point (marker pen on outside).

Detach seal (1) from sunroof (2).

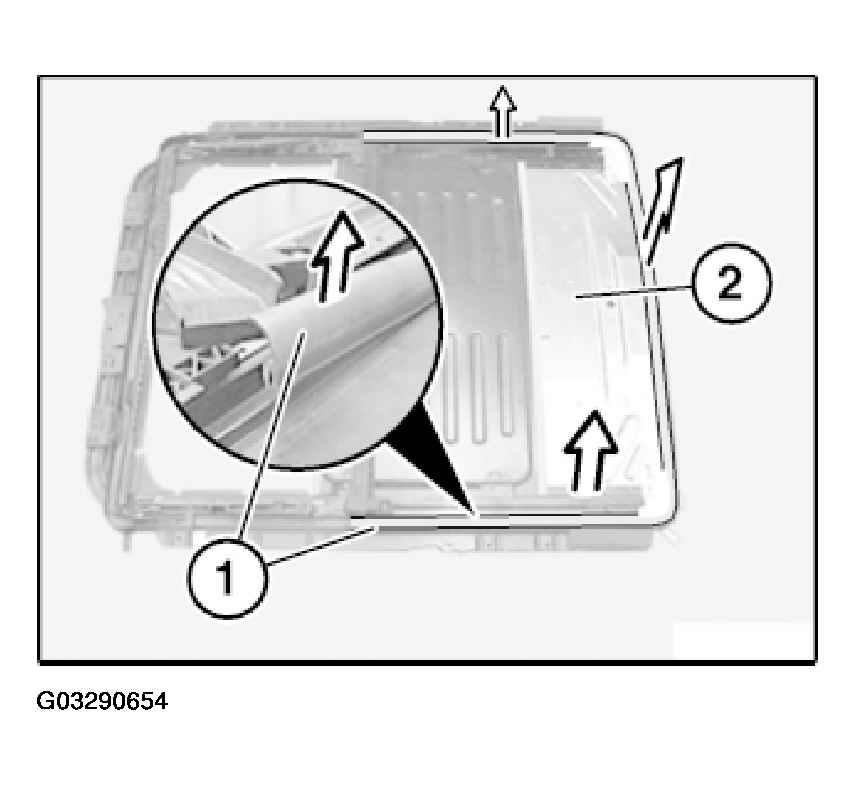

Fig 1: Removing Seal From Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Start fitting new seal on marking.

Position seal gently only and align end points parallel to each other.

Press seal (1) firmly on frame (2) and ensure correct seating.
