52 25 041 Removing and installing/replacing backrest frame on left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat. Refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT .
Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .
Remove rear head restraint mounting. Refer to 52 25 380 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT MOUNT .
Remove four-bar lever on rear seat backrest. Refer to 52 25 018 REMOVING AND INSTALLING/REPLACING FOUR-BAR LEVER ON LEFT OR RIGHT REAR SEAT BACKREST .
Remove backrest cover for rear seat. Refer to 52 25 410 REPLACING BACKREST COVER FOR LEFT OR RIGHT REAR SEAT .

Disconnect plug connections at marked points.

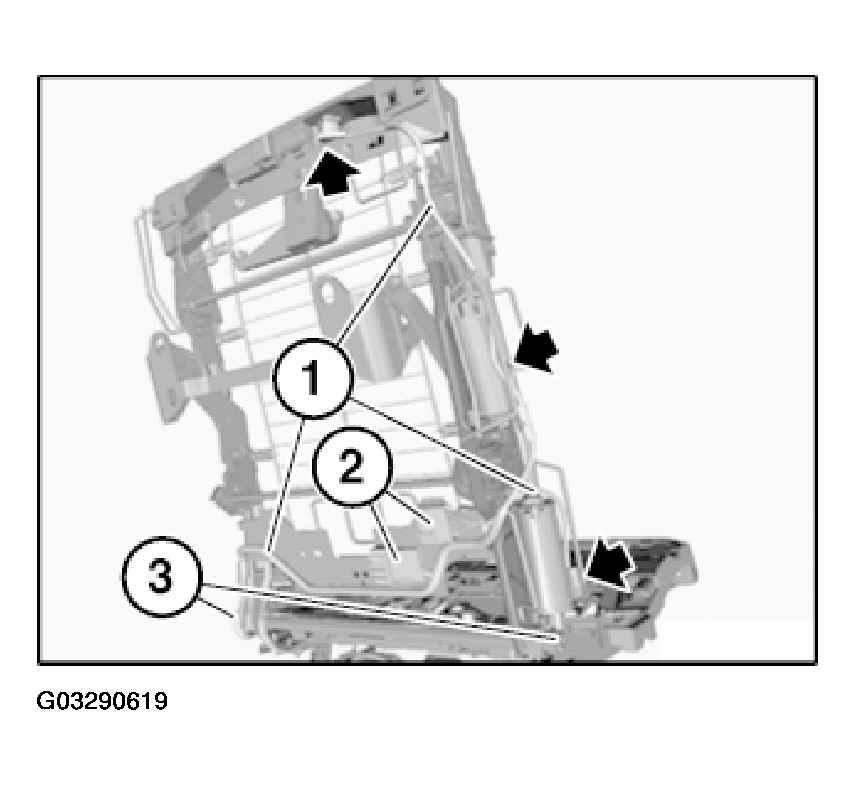

Fig 1: Removing Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug (2).

Release all cable ties and remove wiring harness (1).

Release screws (3) and remove backrest frame.

Installation:

Tightening torque, 52 25 3AZ. Refer to SEATS - TIGHTENING TORQUES .

NOTE: The new backrest frame part contains all the drives.
