52 24 388 Removing and installing/replacing rear middle head restraint (normal)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Move head restraint (1) upwards to maximum extent.

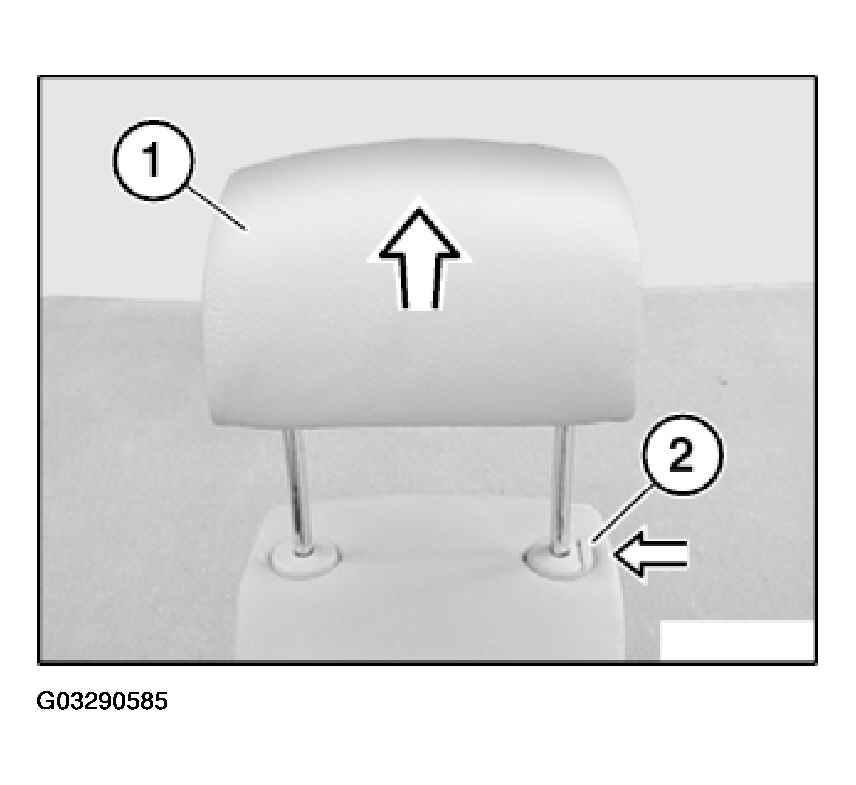

Fig 1: Removing Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) and pull out head restraint.
