52 17 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove thigh support. Refer to 52 17... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT THIGH SUPPORT .

Move front thigh support forwards as far as possible.

Release screws (1).

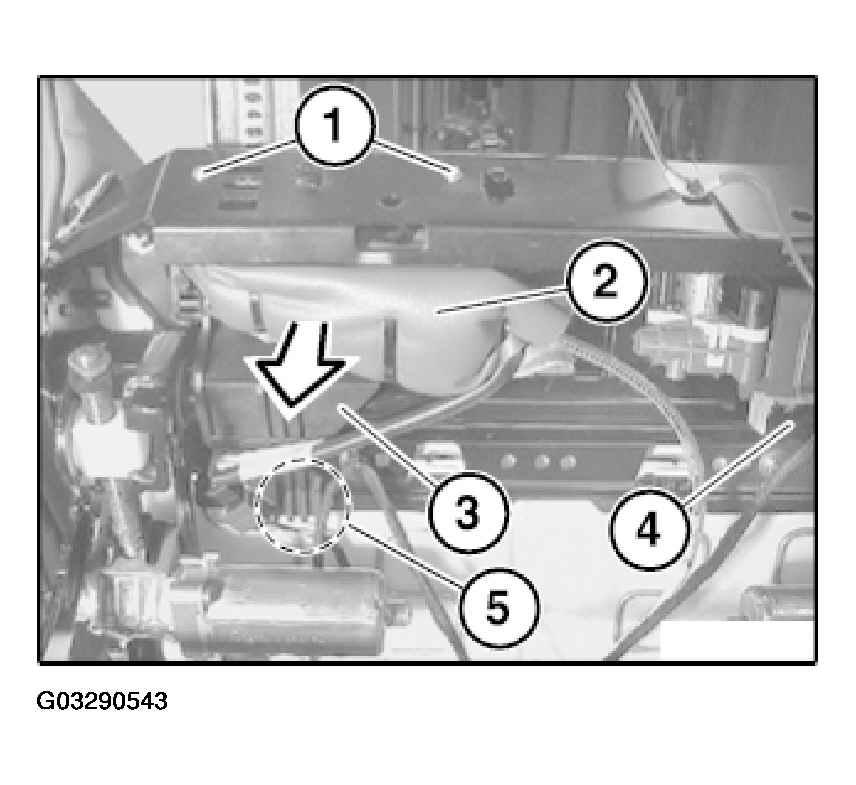

Fig 1: Removing Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

Detach compressor (2) complete with holder (3) in direction of arrow.

Installation:

Attach holder (3) in area (5).

Disconnect plug connection (4) on drive.

Release screws in areas (1).

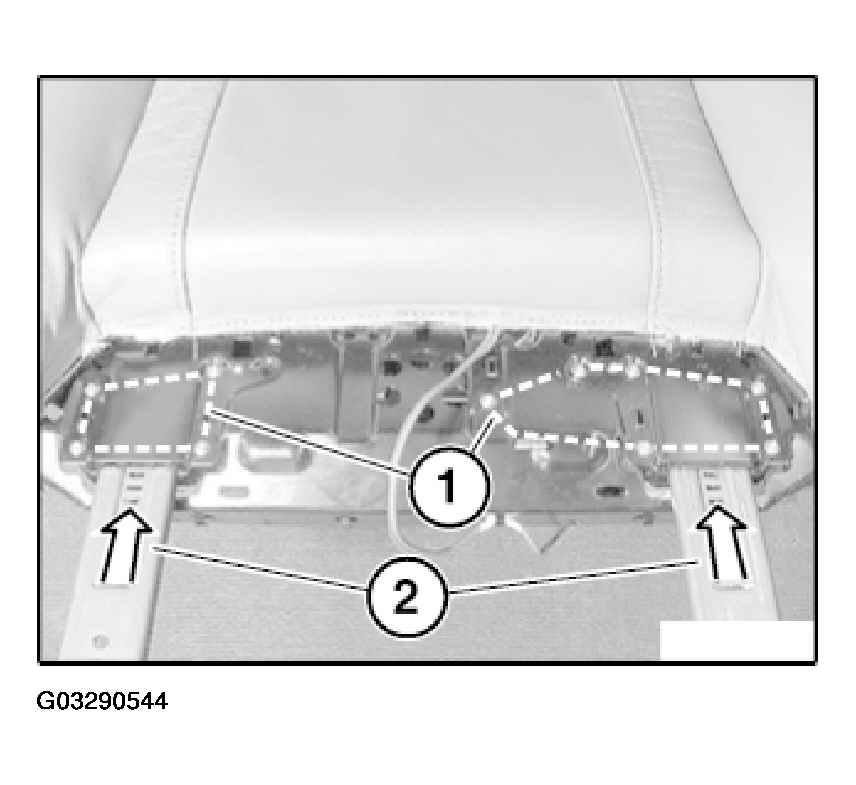

Fig 2: Removing Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out adjusting unit (2) complete with drive in direction of arrow and remove.
