51 24... Removing and installing/replacing Bowden cable for rear lid lock (up to 03/2005)

Necessary preliminary tasks:

• Remove lock element (lock cylinder) for rear lid, refer to 51 24 050 REMOVING AND INSTALLING/REPLACING LOCK ELEMENT (LOCK CYLINDER) FOR REAR LID (UP TO 03/2005)

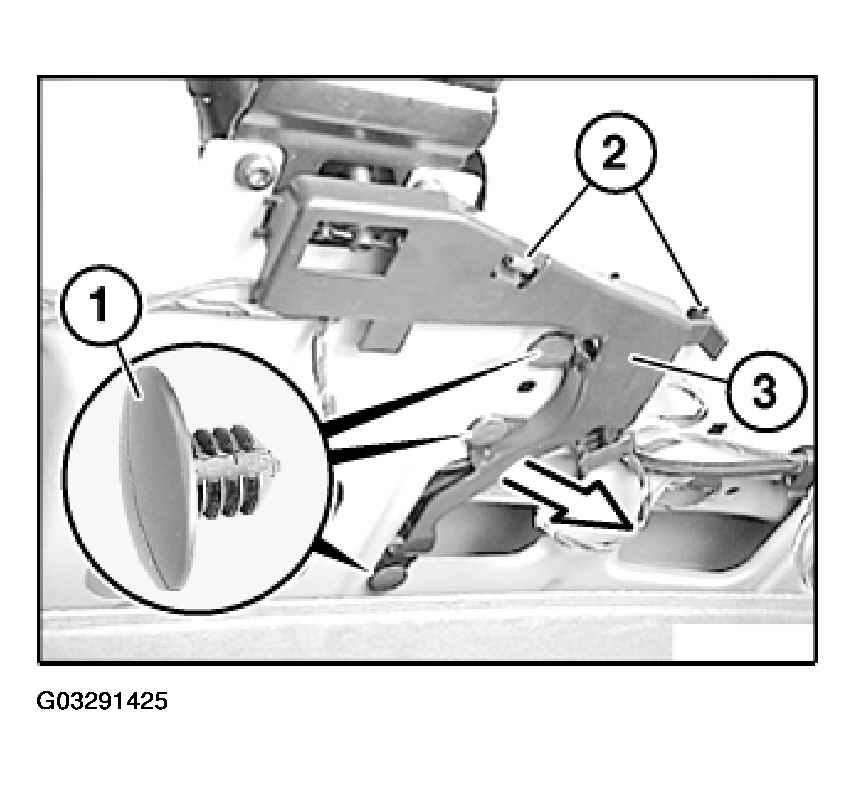

Lever out securing plugs (1).

Fig 1: Removing Bowden Cable Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (2) and remove Bowden cable guide (3).

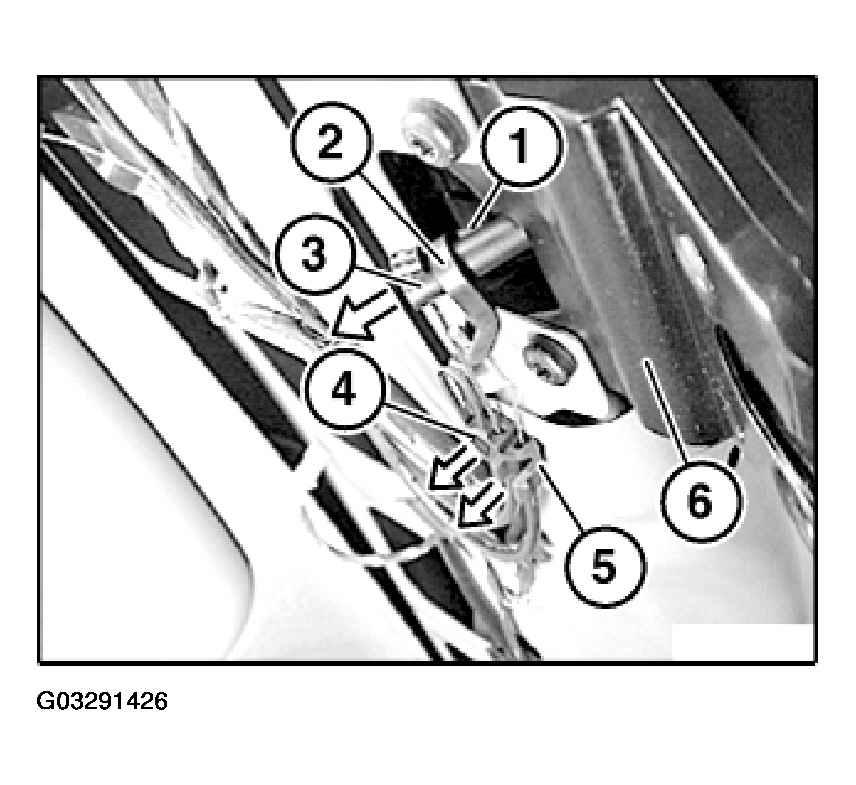

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (6).

Fig 2: Removing Expanding Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expanding wedge (4) and detach guide (5).

Version with manual unlocking:

Installation:

Bowden cable (2) must be correctly positioned in guide (5).

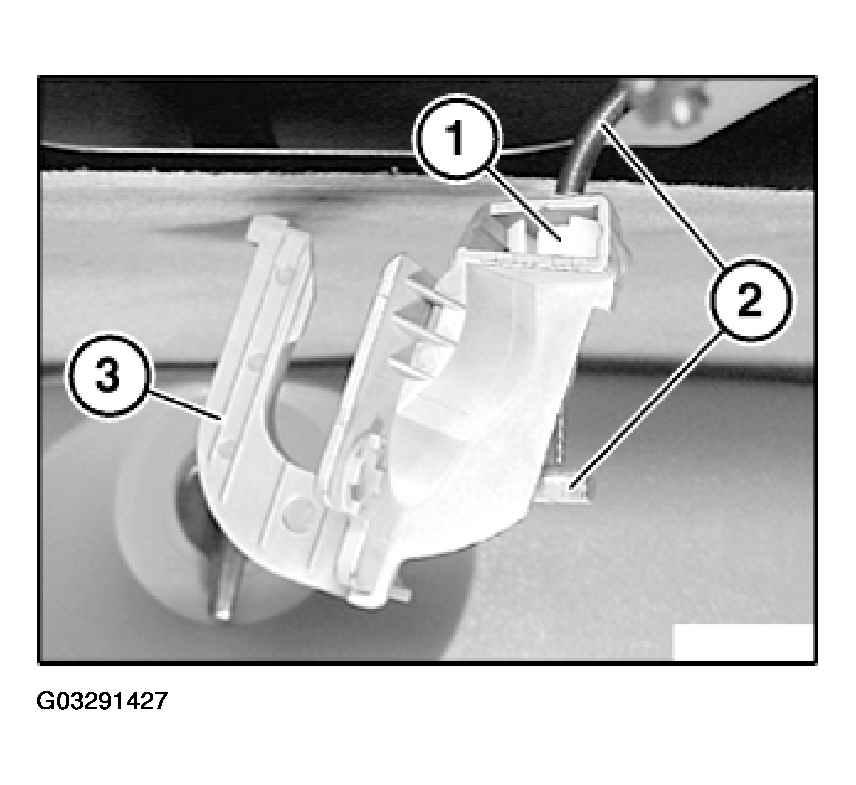

Release lock (1) from Bowden cable (2) and remove clip (3).

Fig 3: Releasing Lock From Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable (2) from rear lid.

Installation:

Lock (1) must be correctly fitted.

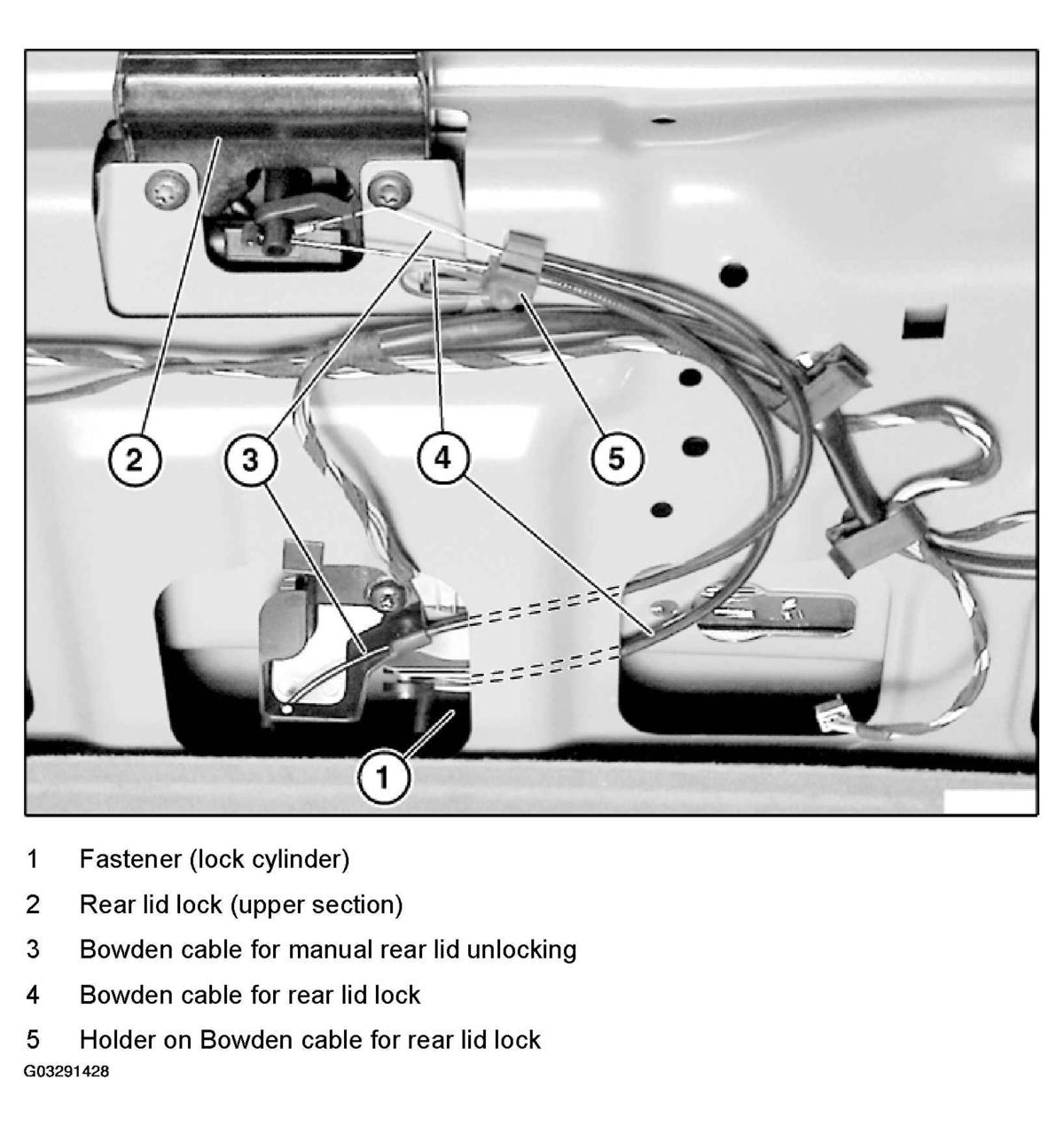

Fig 4: Routing Of Bowden Cables For Rear Lid Lock
