51 24 149 Replacing valve on hydraulic unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove hydraulic unit for rear lid actuation, refer to 51 24 150 REMOVING AND INSTALLING/REPLACING HYDRAULIC UNIT FOR REAR LID ACTUATION (ELECTROHYDRAULIC-FULLY AUTOMATIC)

Release screws (1).

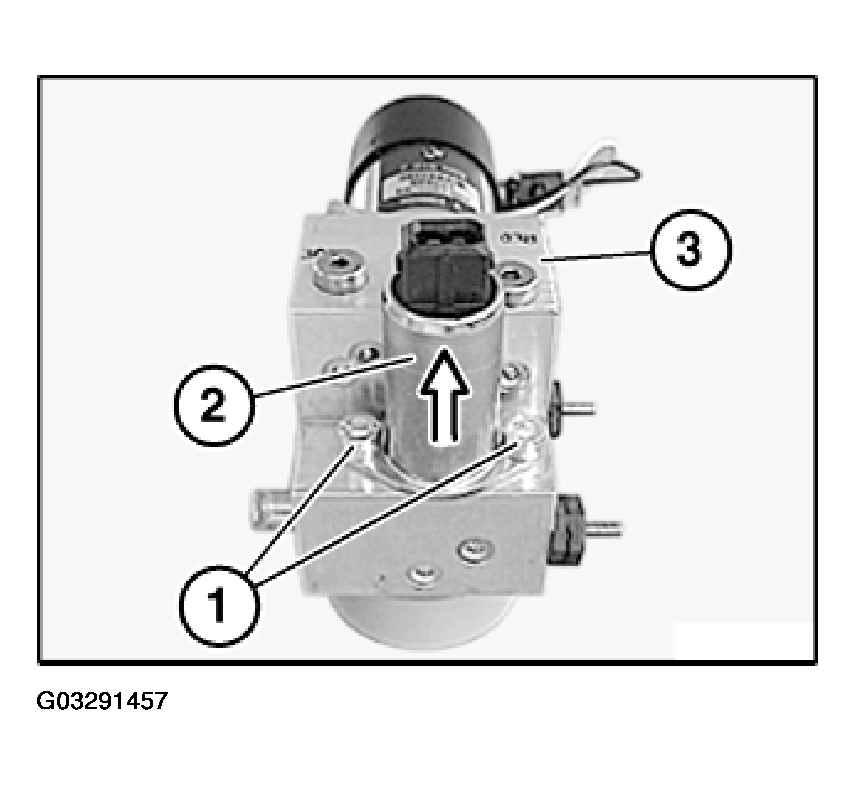

Fig 1: Detaching Valve From Hydraulic Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Detach valve (2) from hydraulic unit (3).

Tightening torque 51 24 9AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

Sealing rings (1) on valve (2) must not be damaged.

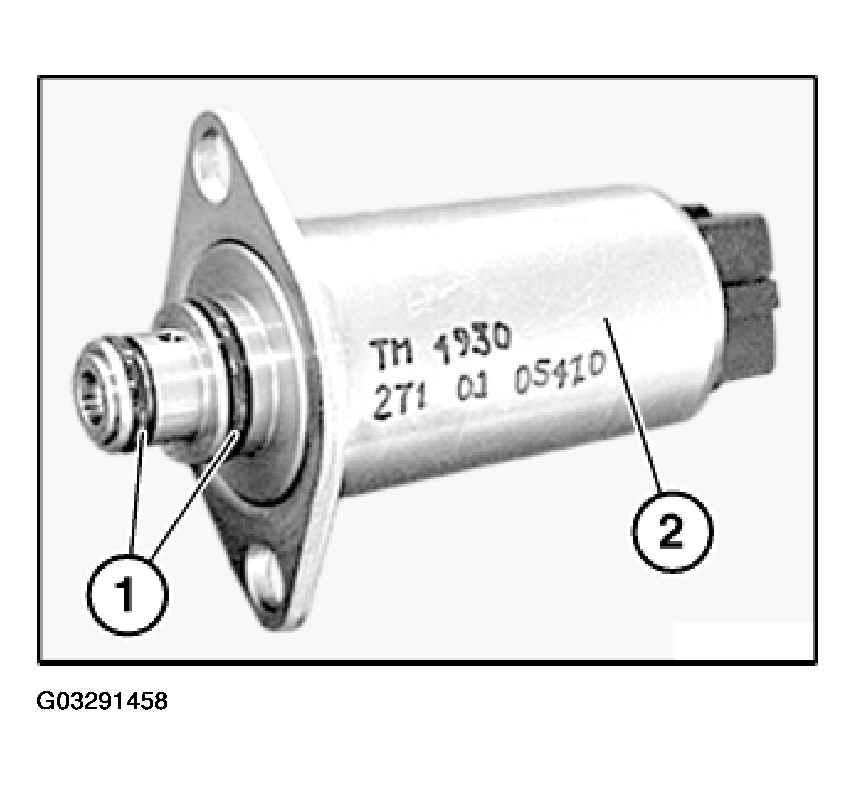

Fig 2: Locating Sealing Rings On Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

No dirt may enter bore (1) on hydraulic unit (2).

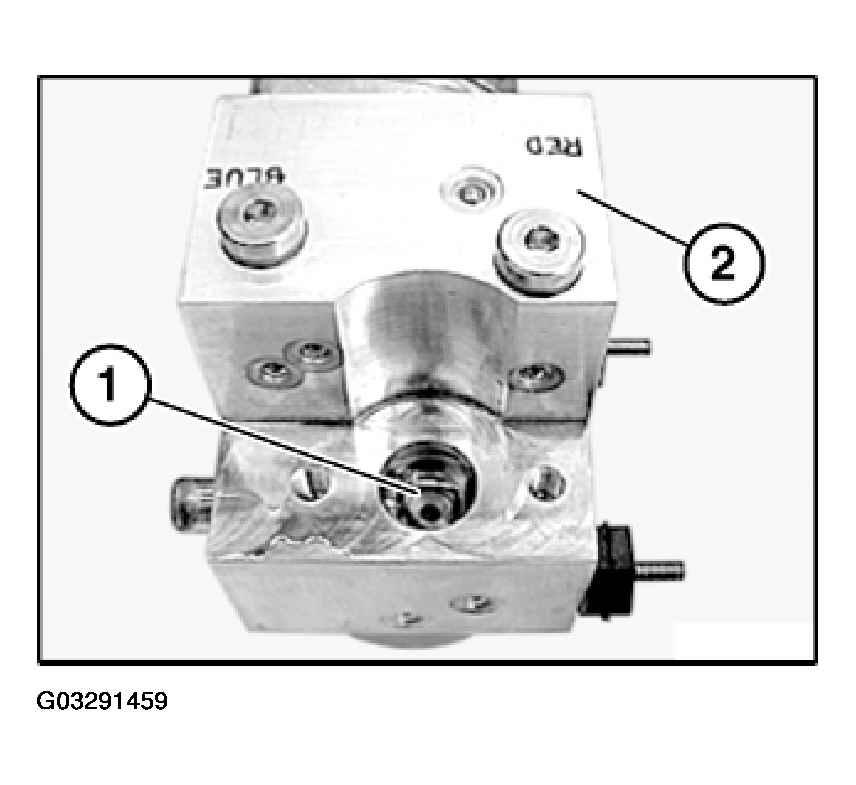

Fig 3: Identifying Bore Of Hydraulic Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Check fluid level. Refer to 51 24... NOTES ON AUTOMATIC REAR LID ACTUATION (ELECTROHYDRAULIC-FULLY AUTOMATIC) .
