Contact Pattern Test:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Coat rear lid lock upper section with grease.

Rear lid lock upper section must not brush against lower section.
Eccentric pin of rear lid lock lower section must not brush against upper section.
Contact pattern of rear lid lock upper section on eccentric pin should be central (settling behavior of rear lid is compensated).

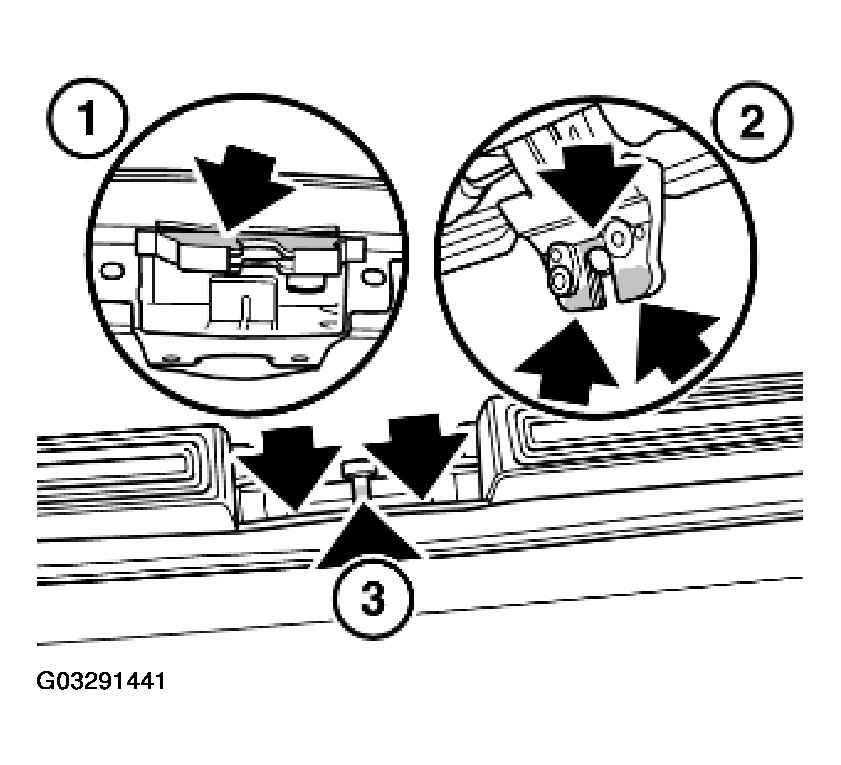

Fig 1: Identifying Rear Lid Lock Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe screw length, use longer screws if necessary.
