51 13115 Removing and installing / replacing cowl panel cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both windscreen wiper arms, refer to 61 61 101 REMOVING AND INSTALLING/REPLACING BOTH WINDSCREEN WIPER ARMS

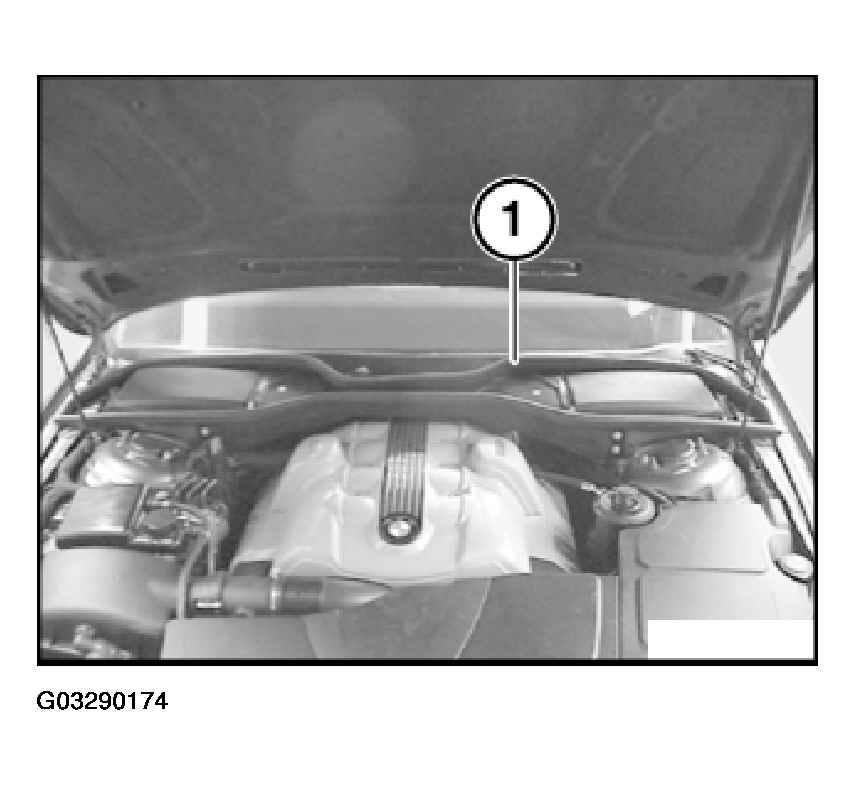

Pull off rubber seal (1).

Fig 1: Pulling Off Rubber Seal

G03290174

Courtesy of BMW OF NORTH AMERICA, INC.

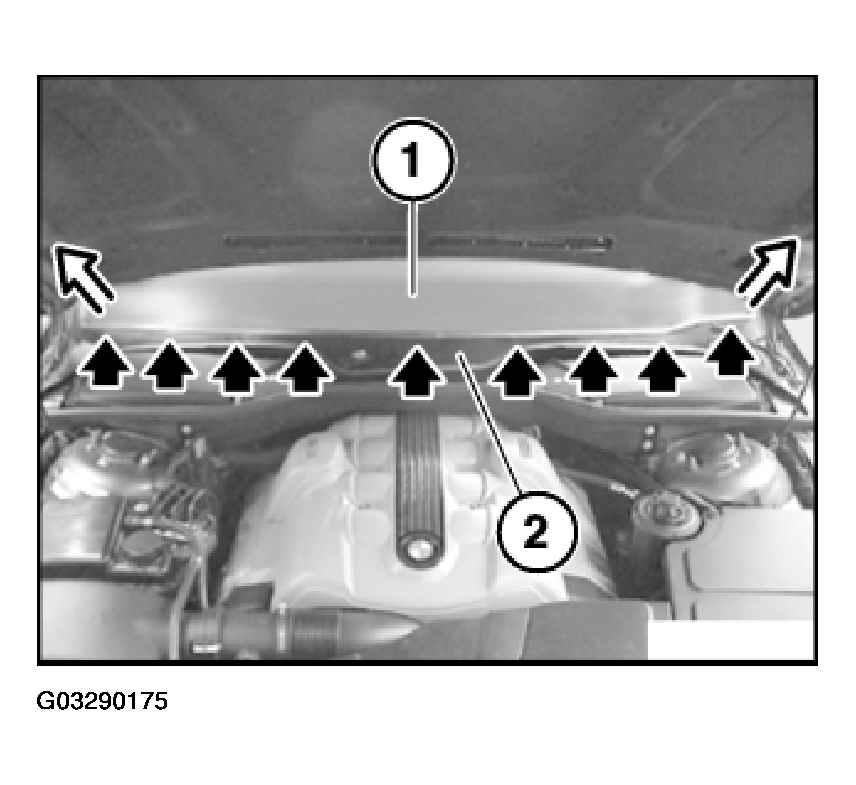

Pull off corners of cover from windscreen (1).

Fig 2: Pulling Off Corners Of Cover

G03290175

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release locks on cover (2).

Installation:

If necessary, remove butyl remnants from windscreen (1).

Installation:

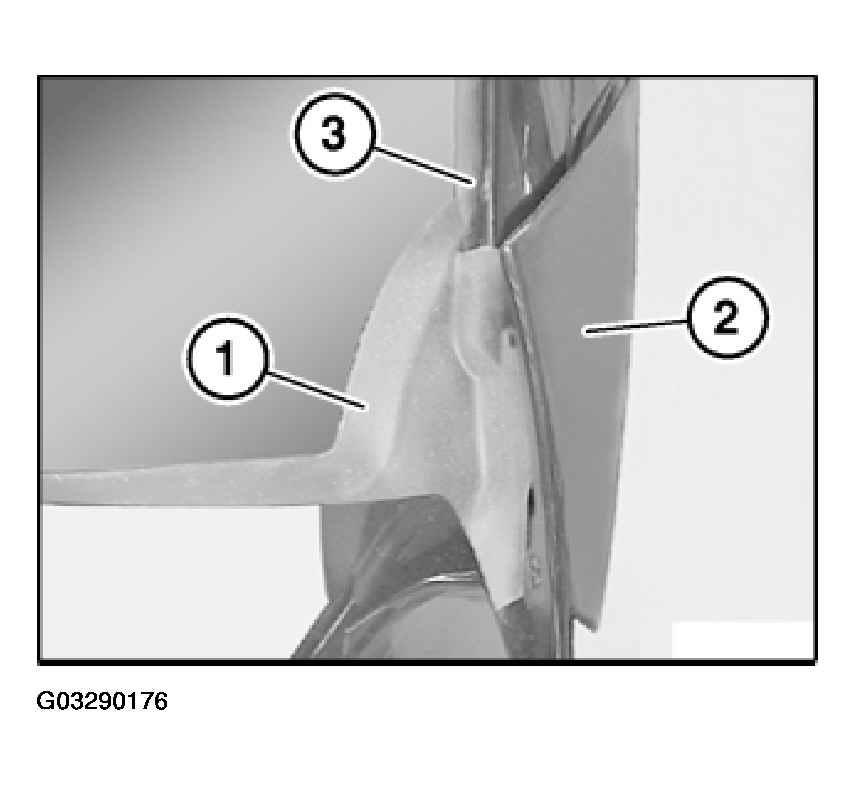

Make sure cover (1) is correctly seated on side panel (2) and seal (3).

Fig 3: Identifying Cover

G03290176

Courtesy of BMW OF NORTH AMERICA, INC.

Lift cover (1) upwards slightly.

Fig 4: Removing Line With Rubber Seal From Cover

G03290177

Courtesy of BMW OF NORTH AMERICA, INC.

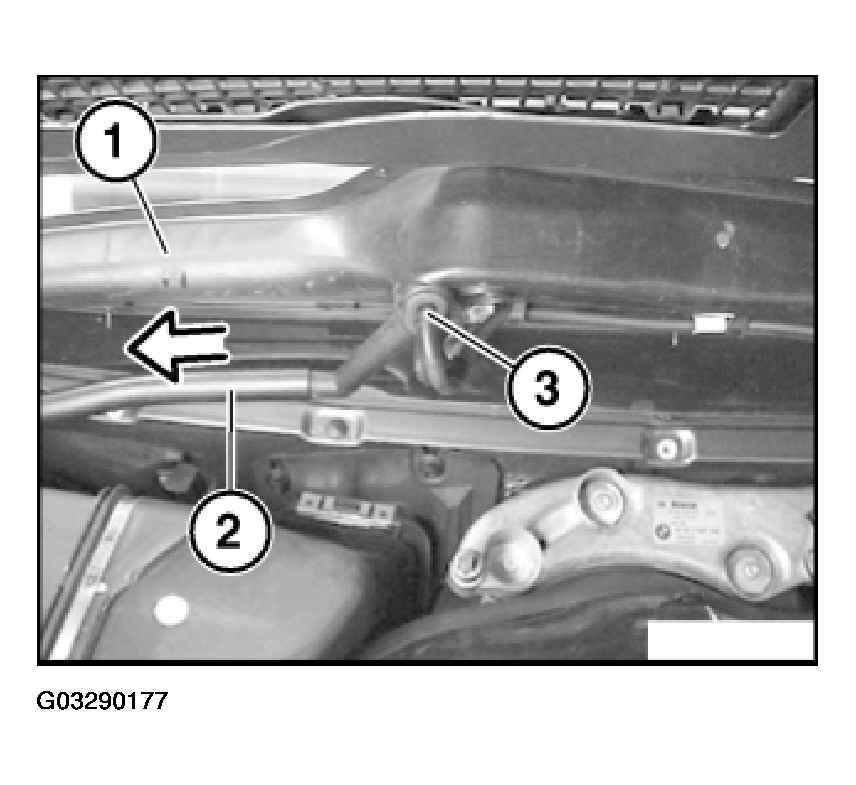

Pull tube (2) out of cover (1).

Remove line (3) together with rubber seal from cover (1).

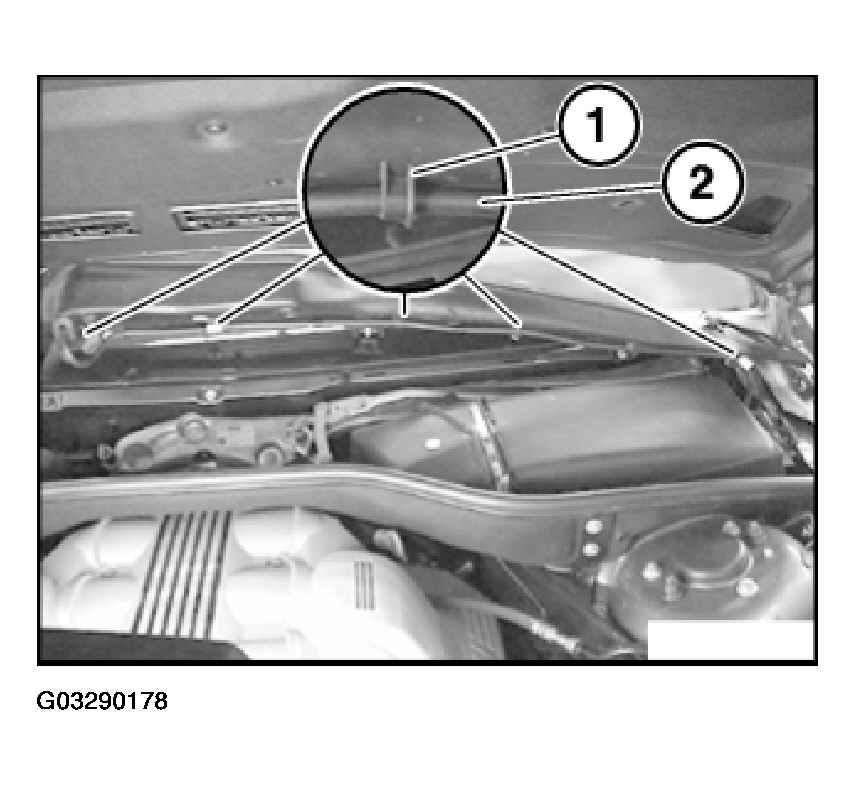

Unclip line (2) from holders (1).

Fig 5: Removing Cowl Panel Cover

G03290178

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cowl panel cover

Installation:

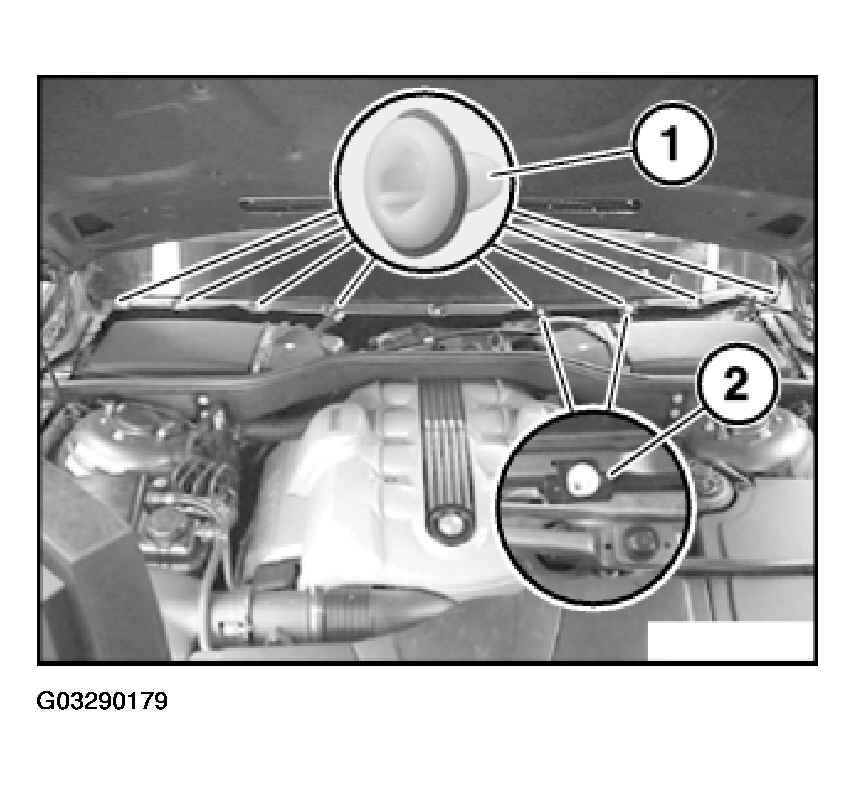

If necessary, replace defective grommets (1).

Fig 6: Checking Holder For Correct Seating

G03290179

Courtesy of BMW OF NORTH AMERICA, INC.

Check holder (2) for correct seating.

Installation:

Clips (1) must not be missing or damaged.

Fig 7: Locating Corners Of Cover

G03290180

Courtesy of BMW OF NORTH AMERICA, INC.

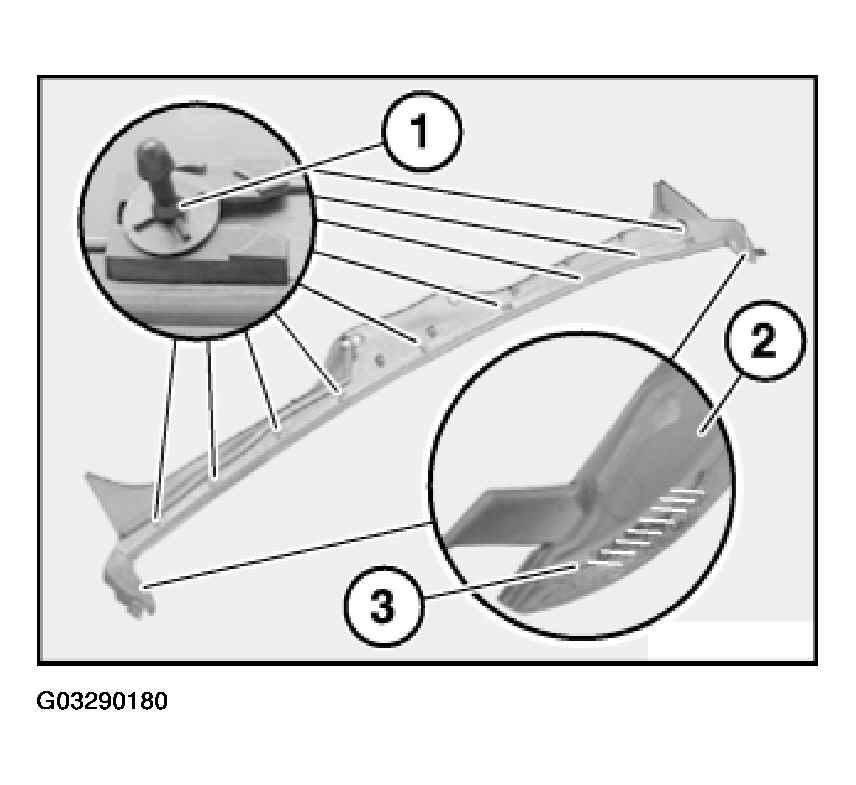

Apply some butyl in corners of cover (2) in area (3):

Width 3 mm
Length approx. 6 cm.

Remove excess butyl from windscreen.
