51 13 000 Removing and installing/replacing front grille centre section: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining hook from engine hood/bonnet, refer to 51 23 160 Removing and installing/replacing arrester hook on engine hood

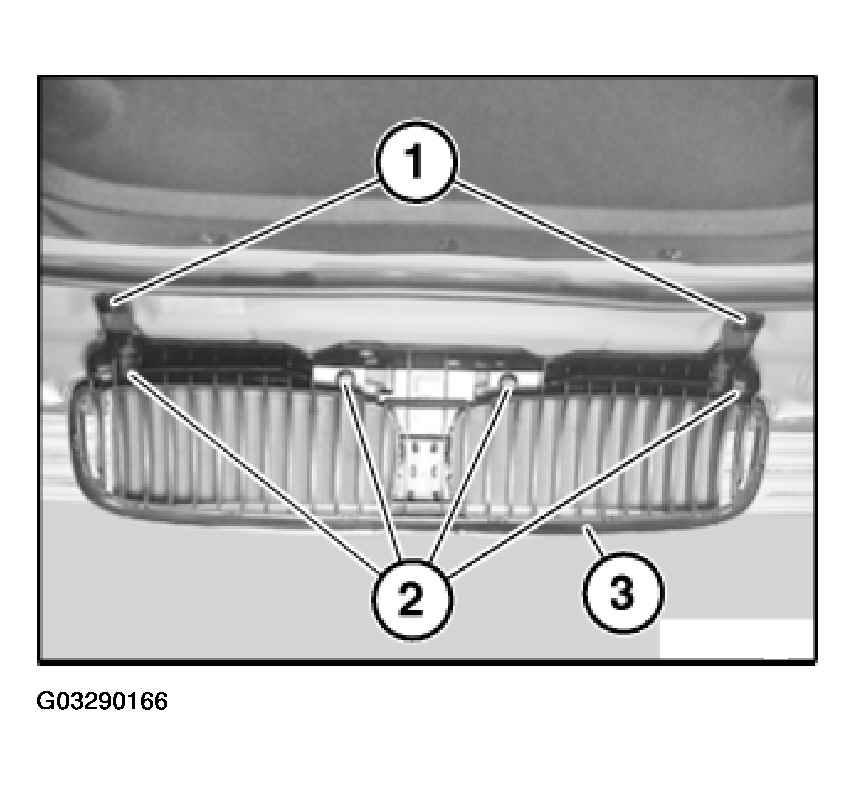

Unfasten screws (1 and 2).

Remove front grille centre section (3) downwards.

Fig 1: Removing Front Grille Centre Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align front grille centre section (3) to engine hood/bonnet and secure with screws (2).

Installation:

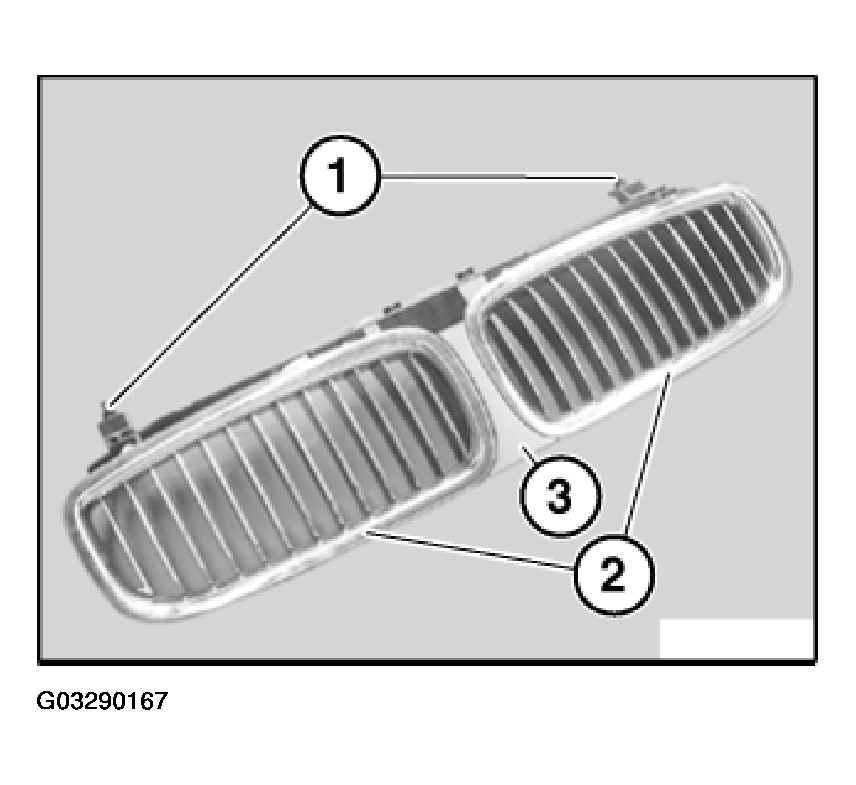

Clips (1) must not be damaged or missing.

Fig 2: Removing Trim From Front Grille

Courtesy of BMW OF NORTH AMERICA, INC.
