51 43 201 Removing and installing or replacing trim for front left or right roof pillar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

WARNING: Follow safety instructions for working on vehicles with AIRBAG systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head AIRBAG).

Lever out clip (1) with special tool 00 9 317 (trim panel wedge).

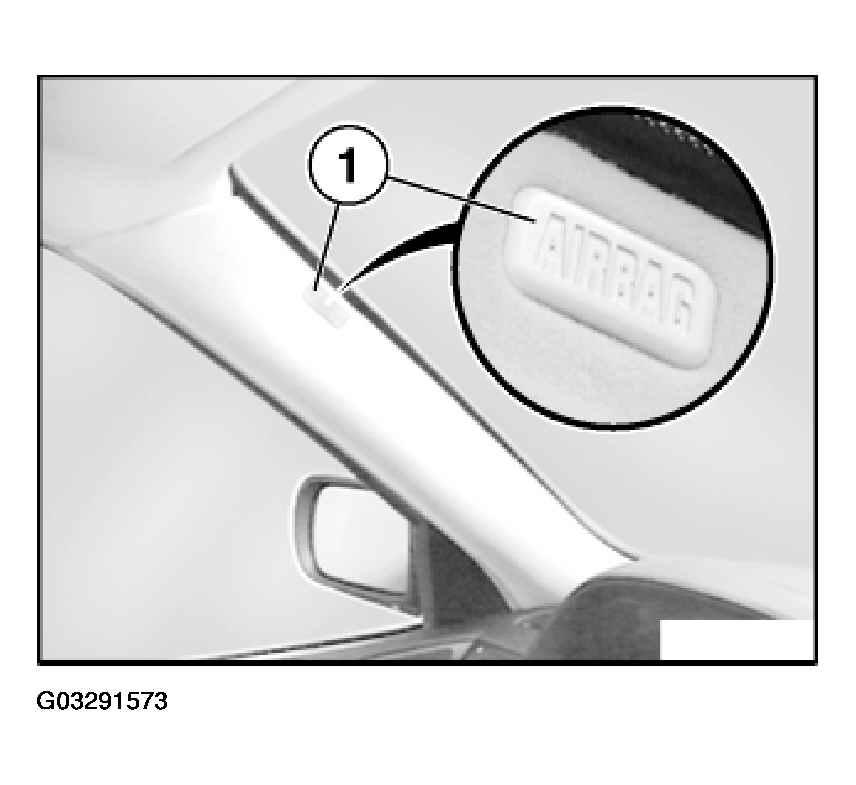

Fig 1: Removing Clip With Special Tool

G03291573

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach mucket in area of A-pillar panel.

Release screw (1).

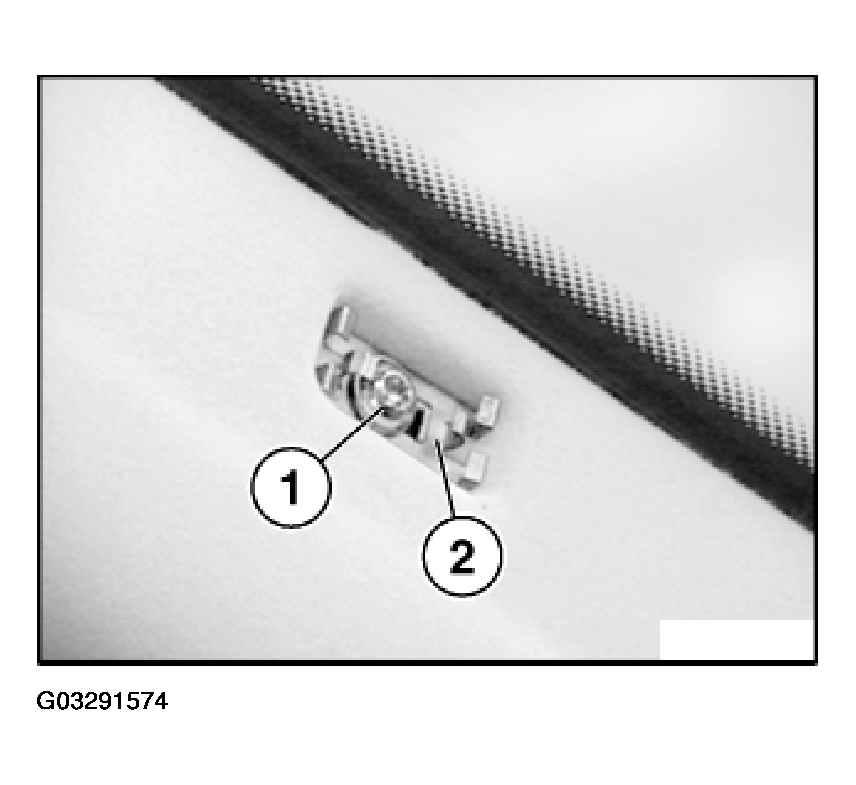

Fig 2: Releasing Screw

G03291574

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 43 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Make sure clip (2) is correctly seated.

Pull out trim for front roof pillar towards inside/top.

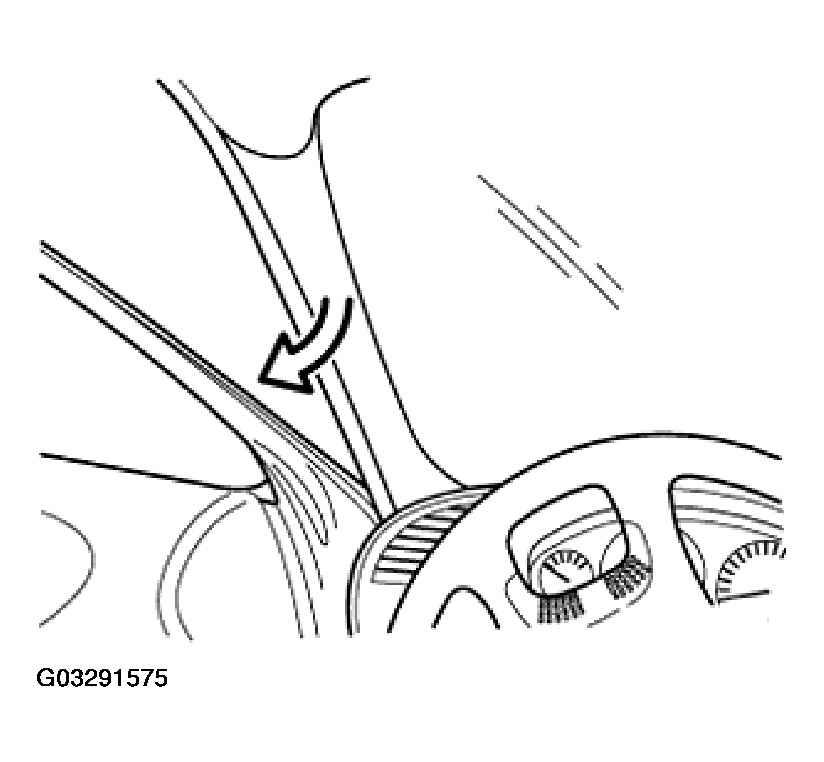

Fig 3: Pulling Out Trim For Front Roof Pillar

G03291575

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1 and 2) on instrument panel (3) must not be damaged.

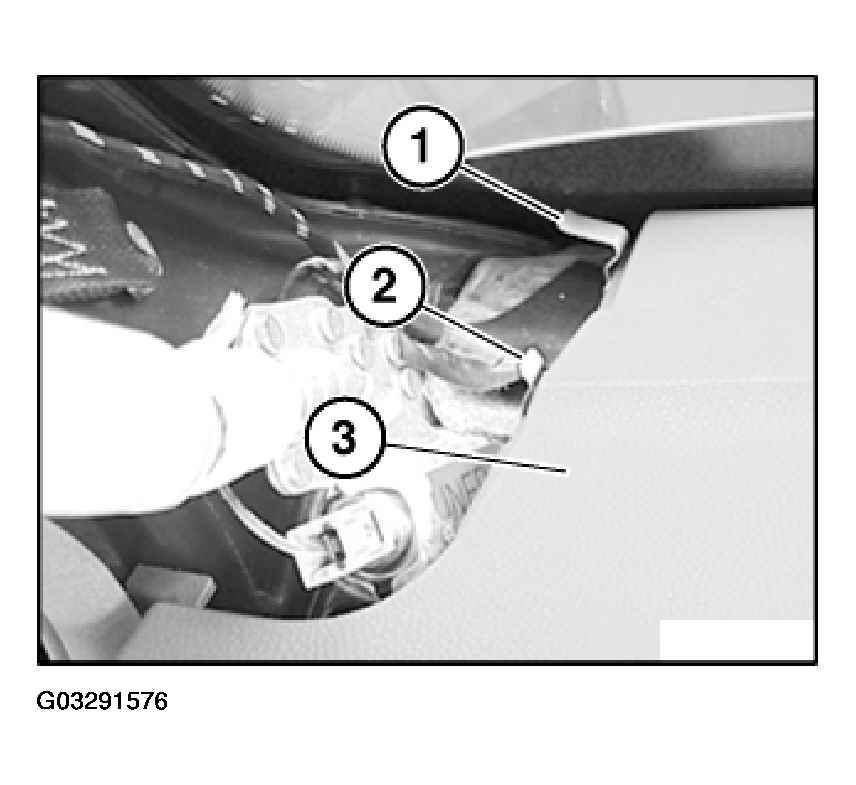

Fig 4: Installing Clips On Instrument Panel

G03291576

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1) of panel (2).

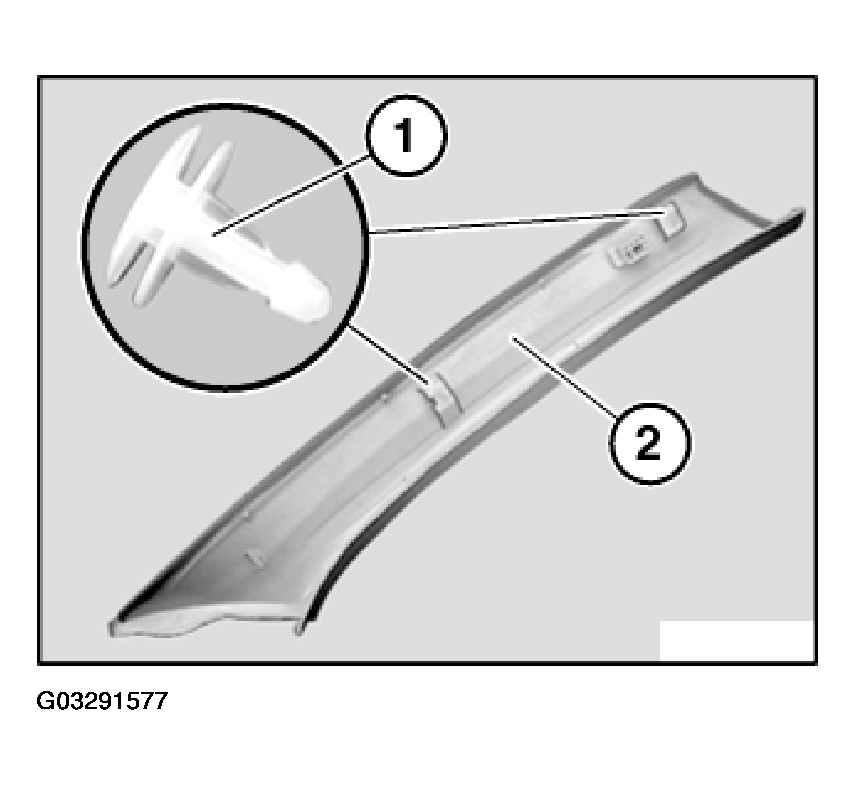

Fig 5: Replacing Faulty Clips Of Panel

G03291577

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace defective grommets (1).

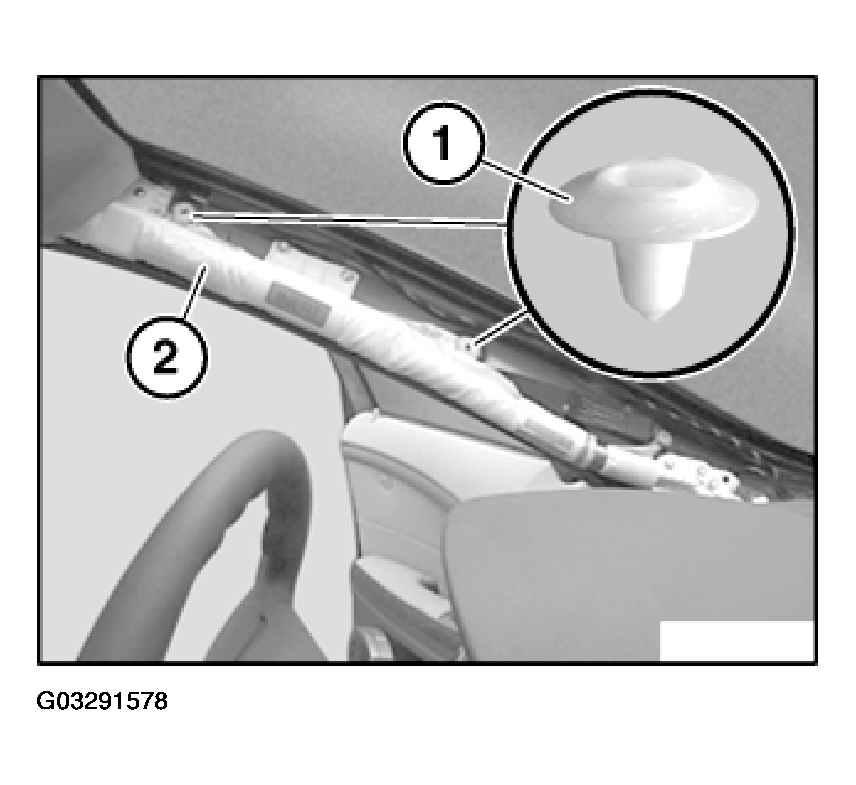

Fig 6: Replacing Defective Grommets

G03291578

Courtesy of BMW OF NORTH AMERICA, INC.

Do not damage head AIRBAG (2) during installation.
