51 34... Removing and installing/replacing trim on window frame on left or right rear door (rear/outer)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Specification without roller sun blind:

Remove cover on door window frame, refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER ON DOOR WINDOW FRAME (REAR DOOR) AT INSIDE LEFT OR RIGHT

Specification with roller sun blind:

Remove roller sun blind from fixed side window, refer to 51 16 400 REMOVING AND INSTALLING OR REPLACING ROLLER SUN BLIND AT FIXED SIDE WINDOW OF LEFT OR RIGHT REAR DOOR

Pull rubber guide (1) out of trim (2).

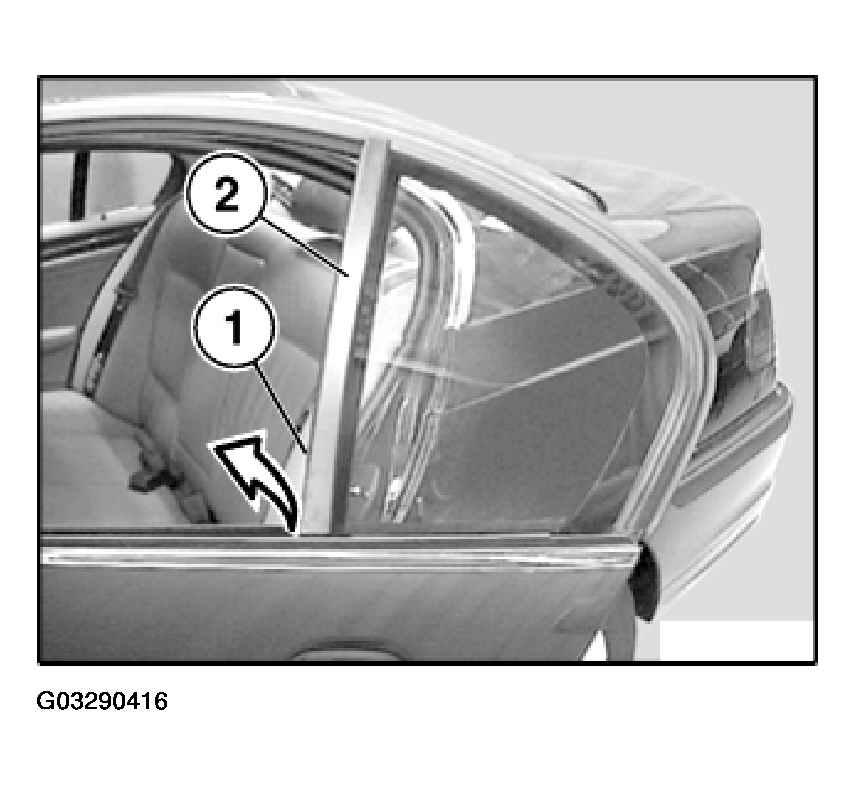

Fig 1: Pulling Rubber Guide Out Of Trim

G03290416

Courtesy of BMW OF NORTH AMERICA, INC.

Grip trim firmly and release screws (1).

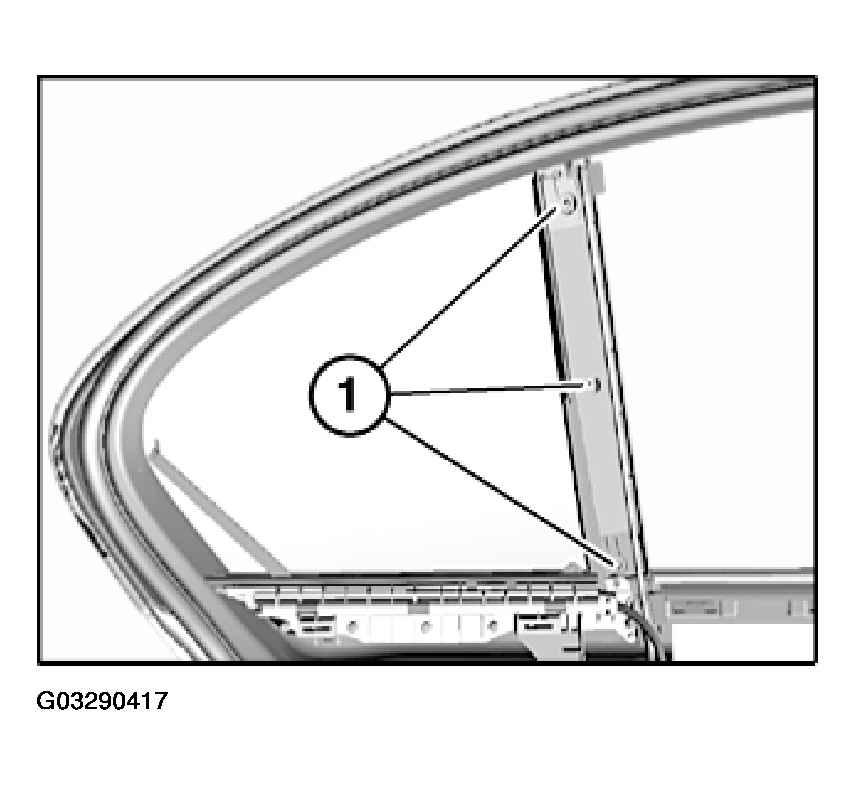

Fig 2: Releasing Screws

G03290417

Courtesy of BMW OF NORTH AMERICA, INC.

Push trim (1) downwards from rubber guide (2) and remove towards top.

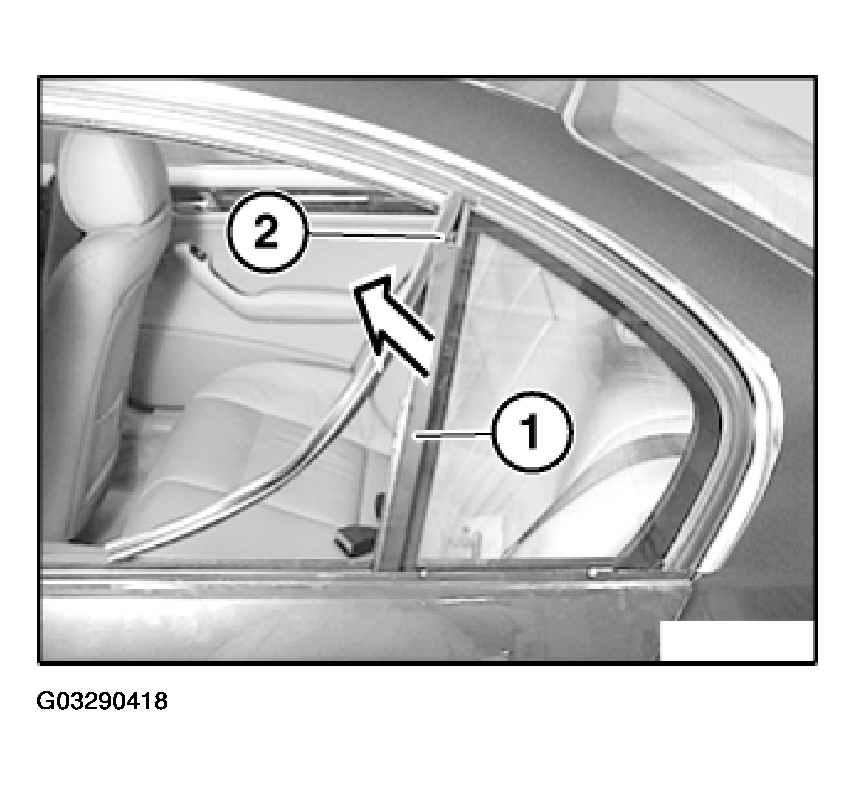

Fig 3: Removing Rubber Guide

G03290418

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads (1) of trim (2) must not be damaged.

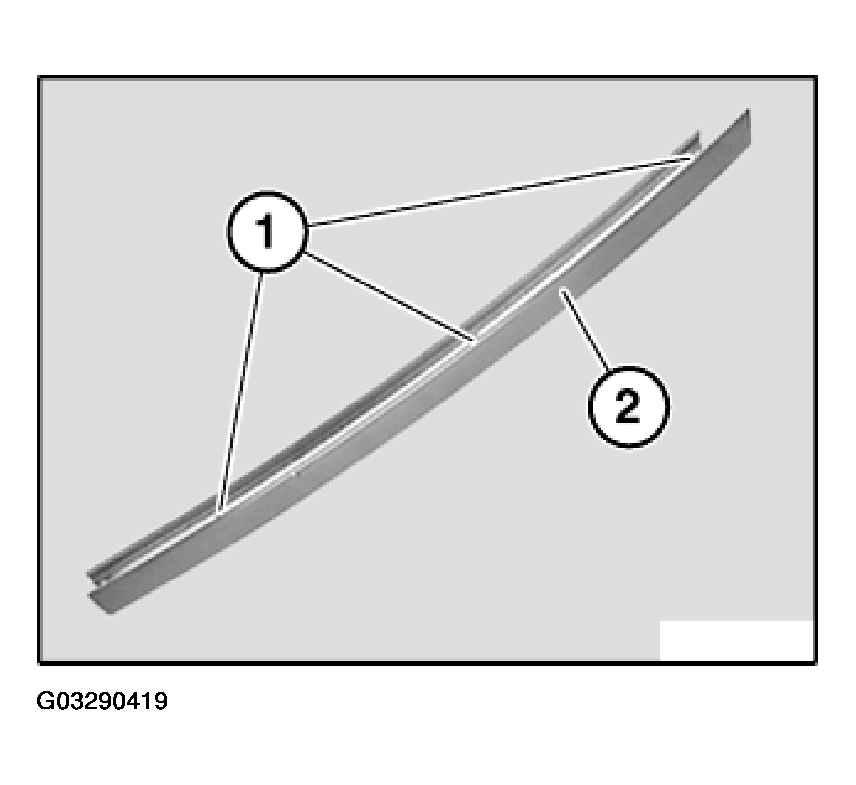

Fig 4: Identifying Threads Of Trim

G03290419

Courtesy of BMW OF NORTH AMERICA, INC.
