51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear window cavity cover strip, refer to 51 22 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP, REAR LEFT OR RIGHT

Partially detach rubber seal (1) and rubber guide (2).

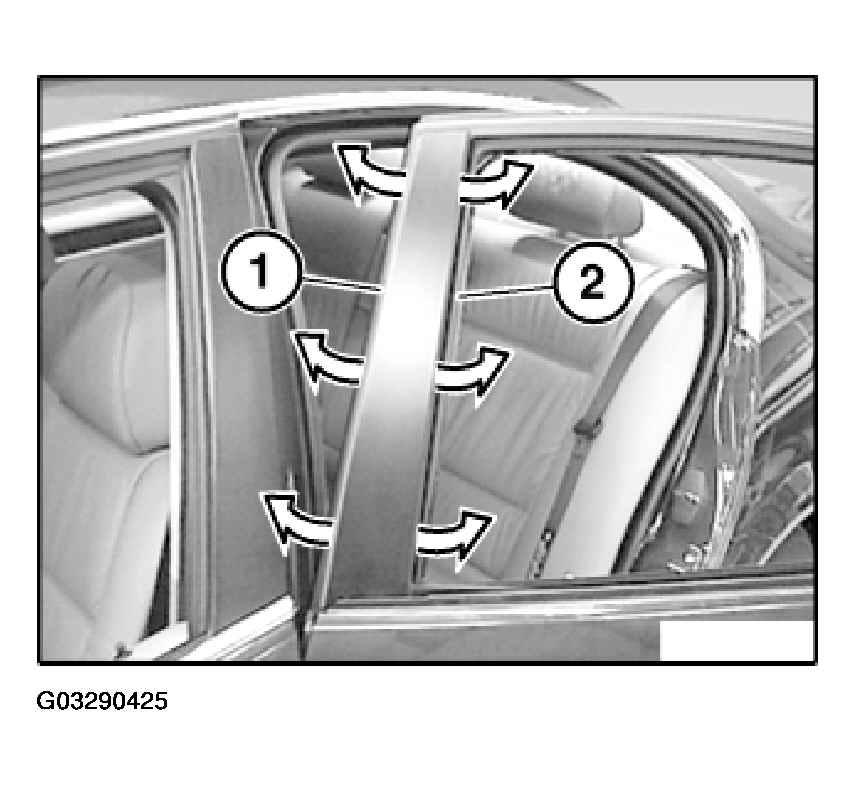

Fig 1: Detaching Rubber Seal And Rubber Guide

G03290425

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

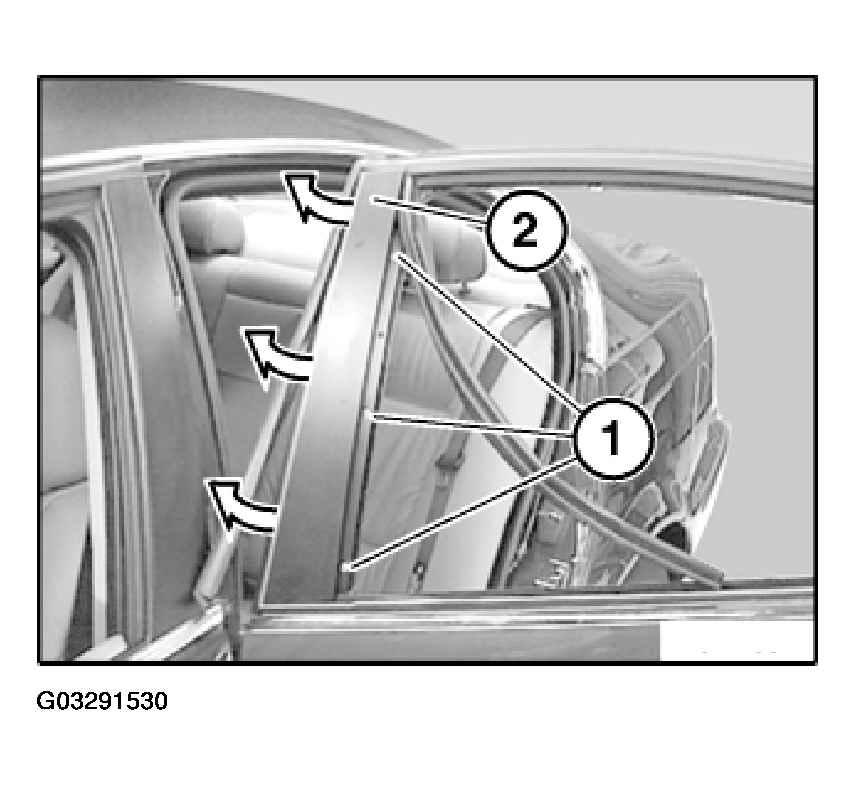

Fig 2: Detaching Trim

G03291530

Courtesy of BMW OF NORTH AMERICA, INC.

Detach trim (2) towards front/top.

Installation:

If necessary, replace faulty plastic nuts (1).

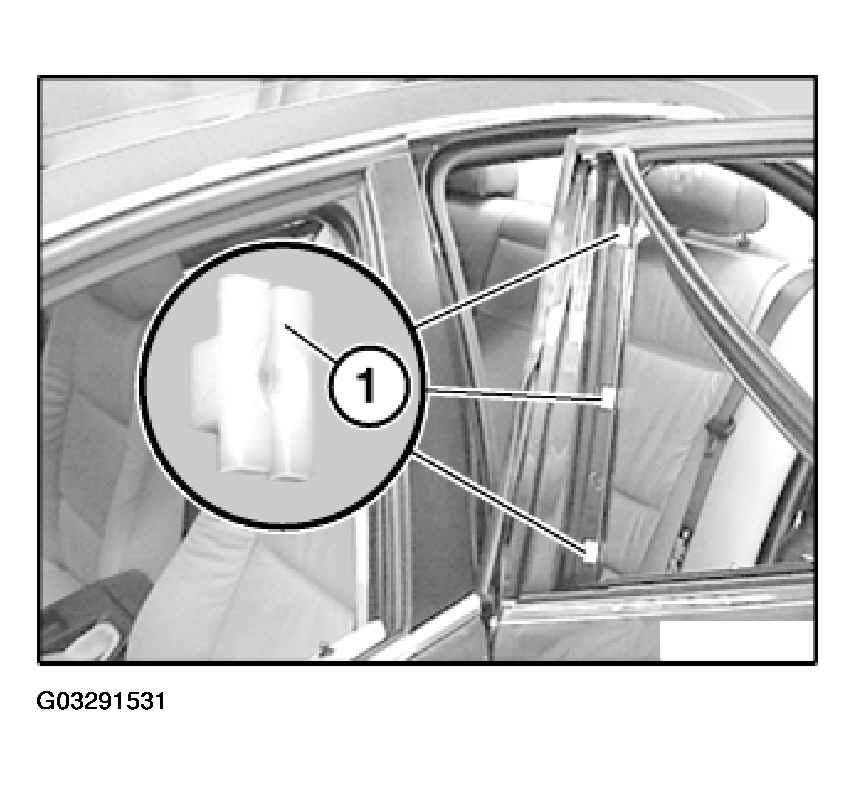

Fig 3: Replacing Faulty Plastic Nuts

G03291531

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sound insulation (1) on window frame (2) must be fitted.

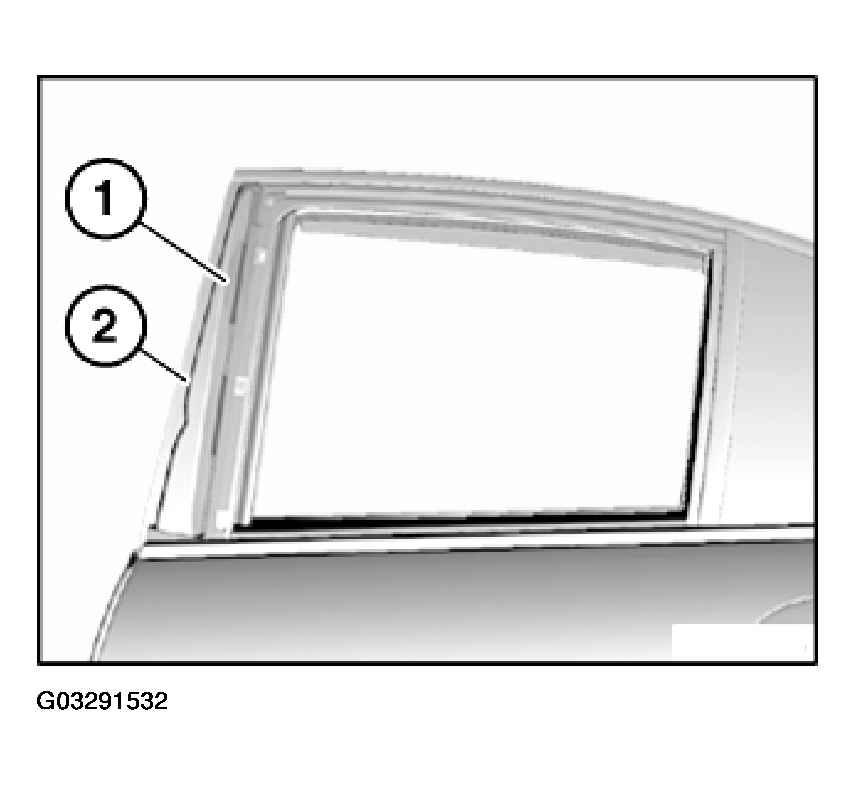

Fig 4: Installing Sound Insulation On Window Frame

G03291532

Courtesy of BMW OF NORTH AMERICA, INC.
