Special tools required:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 317

Necessary Preliminary Tasks:

Remove decorative strip on window frame of rear door, refer to 51 34 380 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON WINDOW FRAME OF REAR DOOR (OUTER) ON LEFT OR RIGHT

Lever out rubber guide (2) on door window frame (1) with special tool 00 9 317.

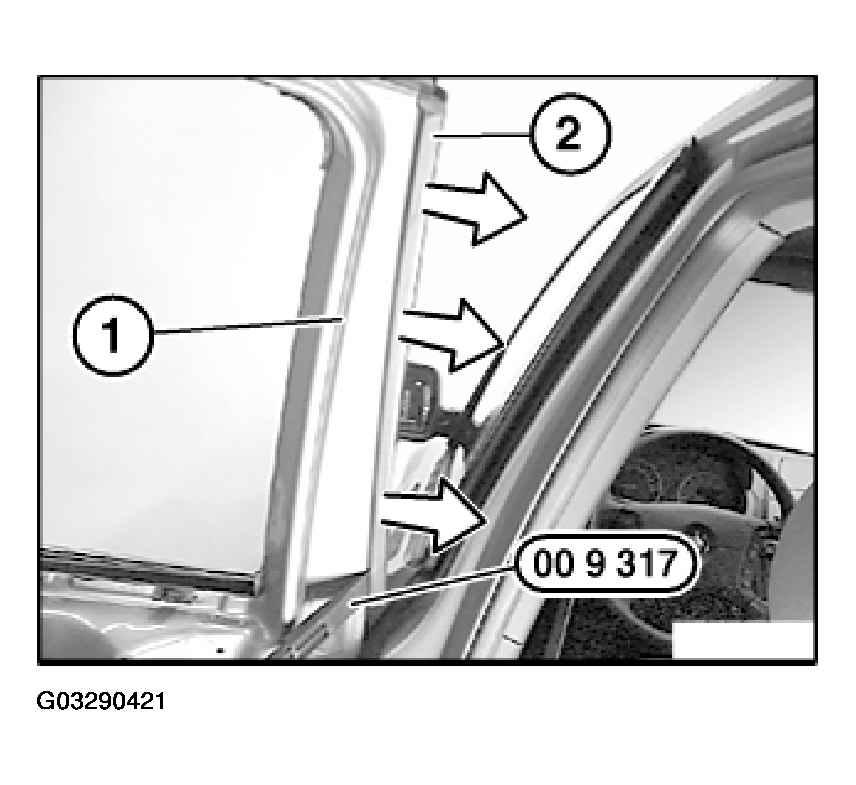

Fig 1: Removing Rubber Guide On Door Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rubber guide (1) out of window guide at front and rear.

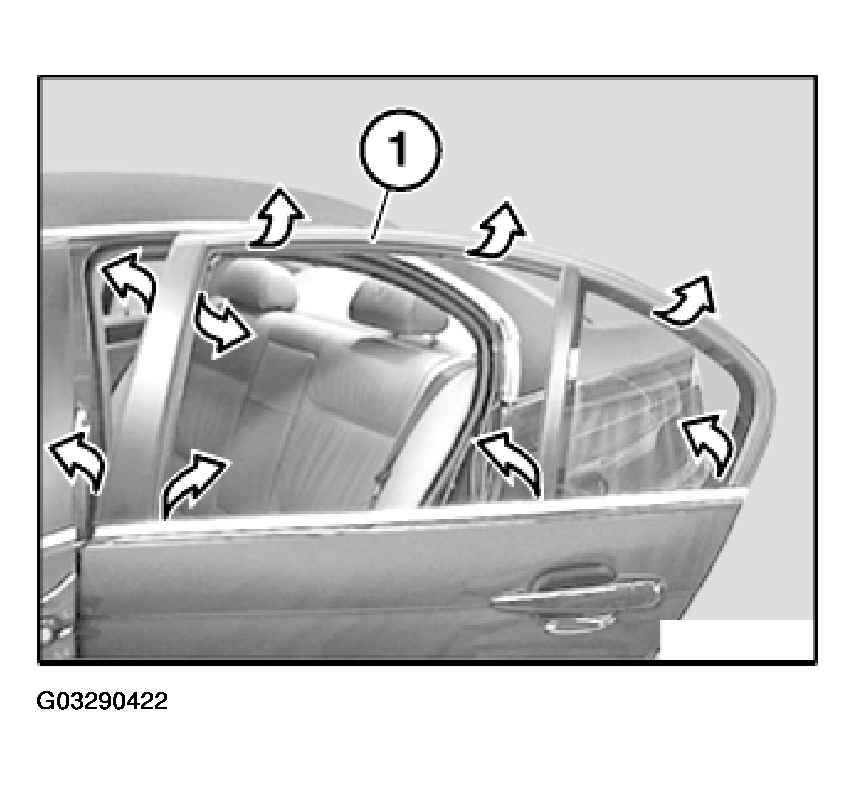

Fig 2: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rubber guide (1) off door window frame and remove.

Installation:

Prior to installation, coat rubber guide (1) with soapy solution (washing-up liquid).

Ensure rubber guide (1) is correctly seated in rubber guide.
