51 37 000 Removing and installing/replacing complete rear left or right power window unit: Replacement:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

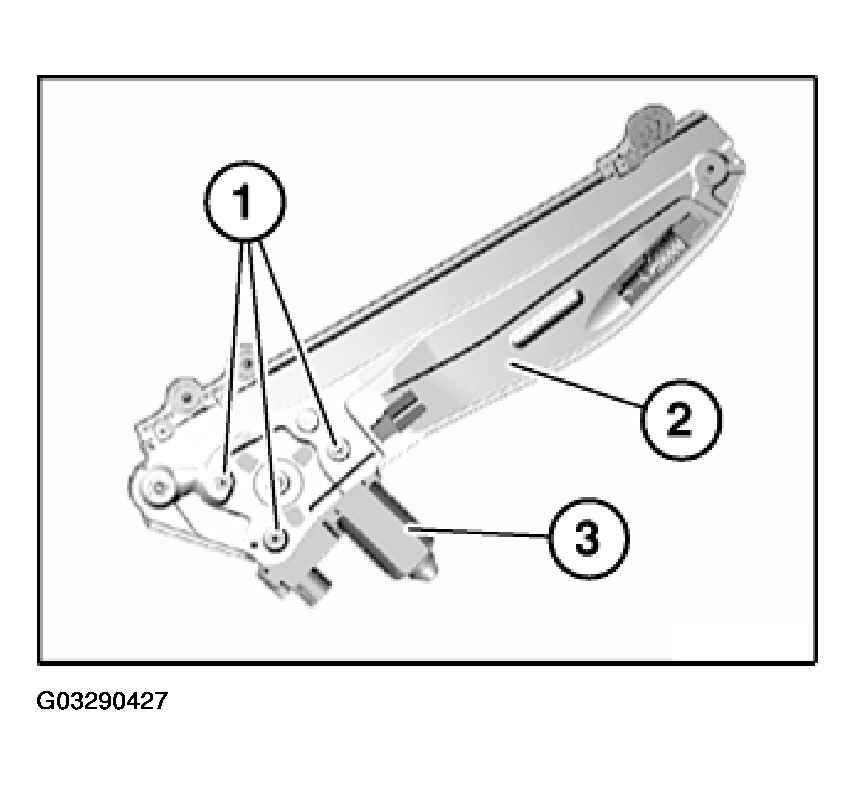

Fig 1: Detaching Flat Motor From Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flat motor (3) from power window unit (2).

Tightening torque 51 35 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
