51 37 000 Removing and installing/replacing complete rear left or right power window unit: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door window glass, refer to 51 34 171 REPLACING REAR LEFT OR RIGHT DOOR WINDOW GLASS (WITHOUT ROLLER SUN BLIND) or 51 34 471 REPLACING REAR LEFT OR RIGHT DOOR WINDOW GLASS (WITH ROLLER SUN BLIND)

Release screw (1).

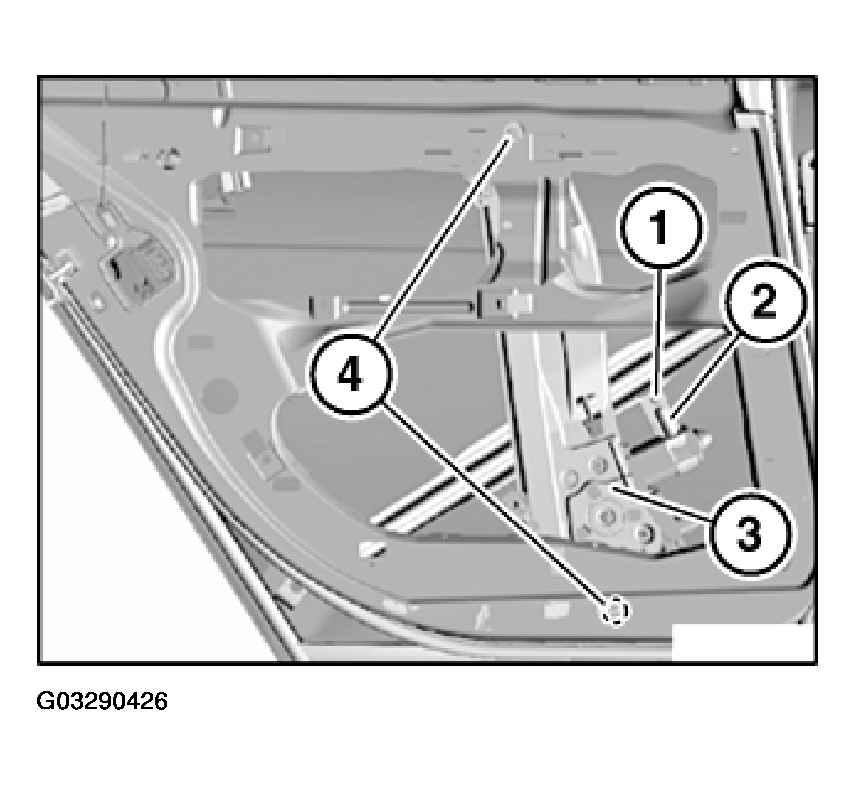

Fig 1: Removing Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Take off holder (2).

Release screws (4) and remove power window unit (3).

Tightening torque 51 35 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
