Version up to 03/2004:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Door trim panel (1) with completely punched-out hole (2):

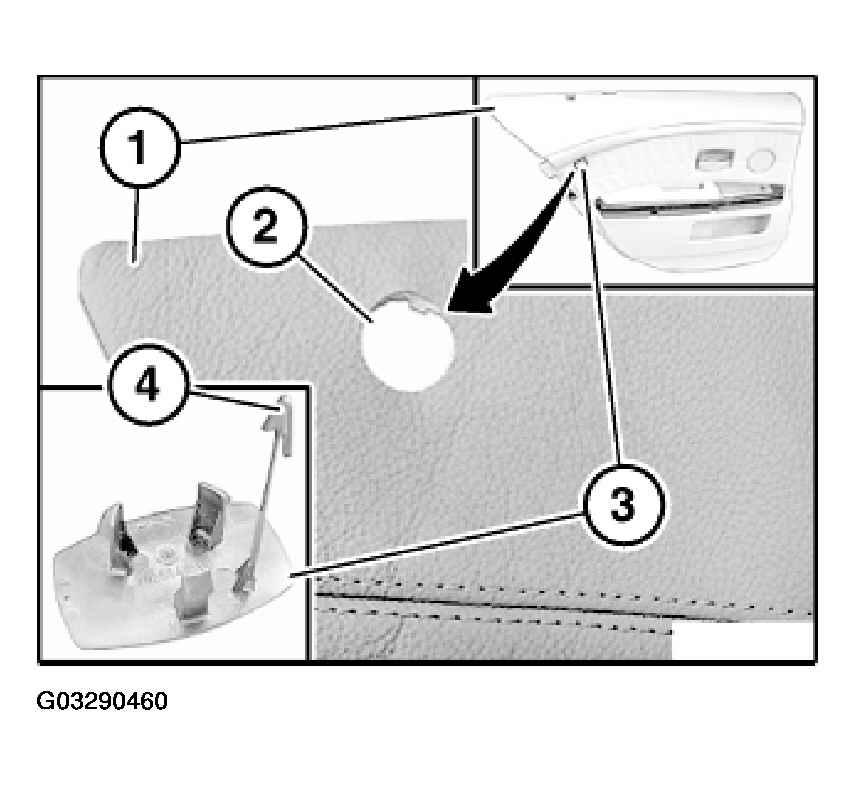

Fig 1: Identifying AIRBAG Badge With Retaining Hook
G03290460Courtesy of BMW OF NORTH AMERICA, INC.

AIRBAG badge (3) with retaining hook (4) must be fitted.

Retaining hook (4) must be correctly inserted in bore of carrier for door trim panel (1).
