Build date from 03/2004:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

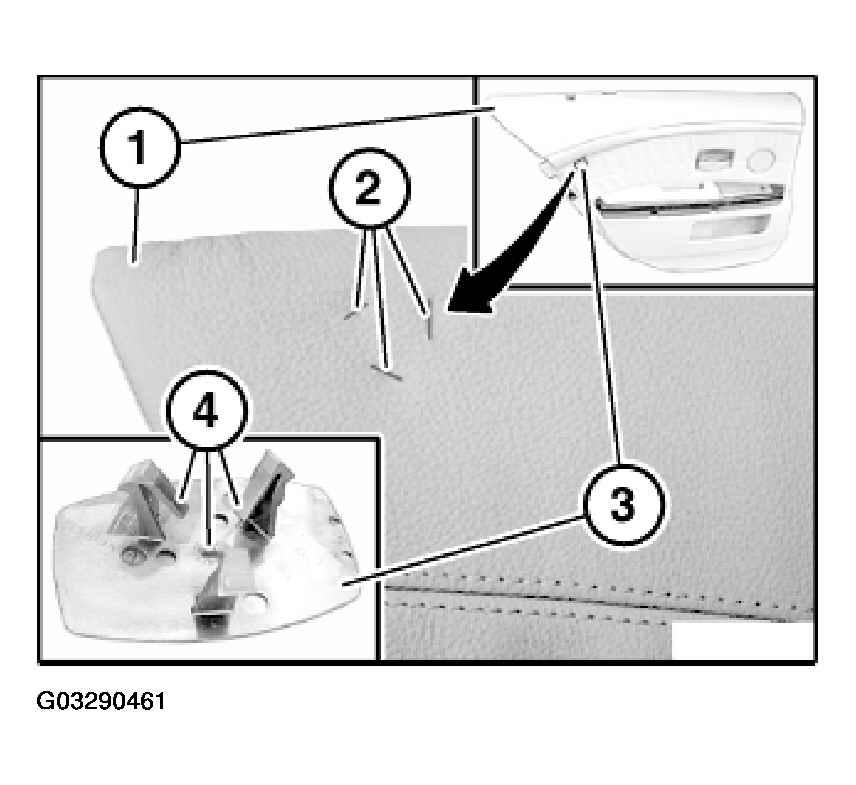

Door trim panel (1) with 3 incisions (2):

Fig 1: Identifying AIRBAG Badge With 3 Catches
G03290461Courtesy of BMW OF NORTH AMERICA, INC.

AIRBAG badge (3) with 3 catches (4) must be fitted.

Catches (4) must be correctly inserted in notches (2) of door trim panel (1).
