51 12 432 Replacing central body molding on rear bumper: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

Remove both side body moldings, refer to 51 12 435 REPLACING LEFT OR RIGHT BODY MOLDING FROM SIDES OF REAR BUMPER

Unclip body molding (1) with special tool 00 9 321.

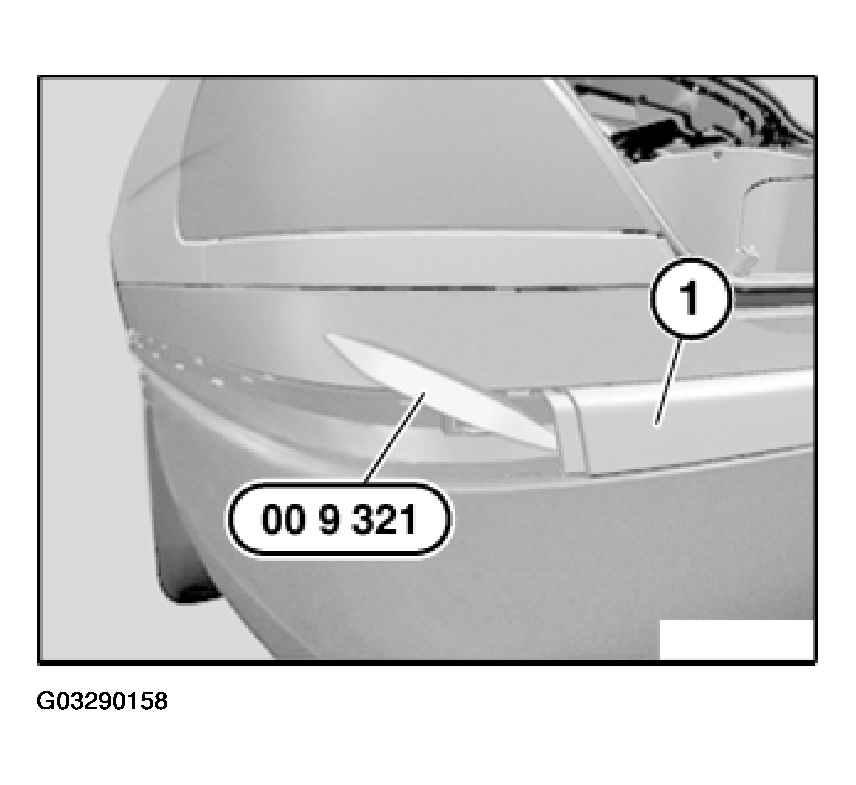

Fig 1: Removing Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Remove body molding (1) and if necessary disconnect plug connections.
