51 12 157 Replacing rear bumper trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM

Build date from 03/2005:

Remove all rear body moldings, refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER and 51 12 435 REPLACING LEFT OR RIGHT BODY MOLDING FROM SIDES OF REAR BUMPER

Release expander rivets (1 and 2).

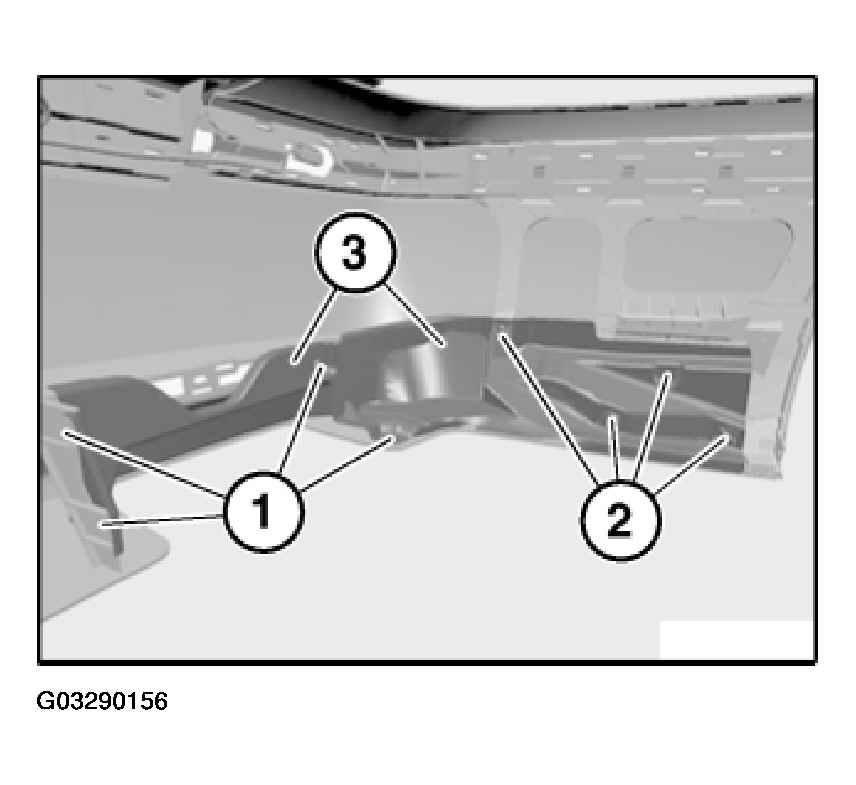

Fig 1: Removing Thermal Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Remove thermal insulation (3).

Remove flap (1) for towing lug.

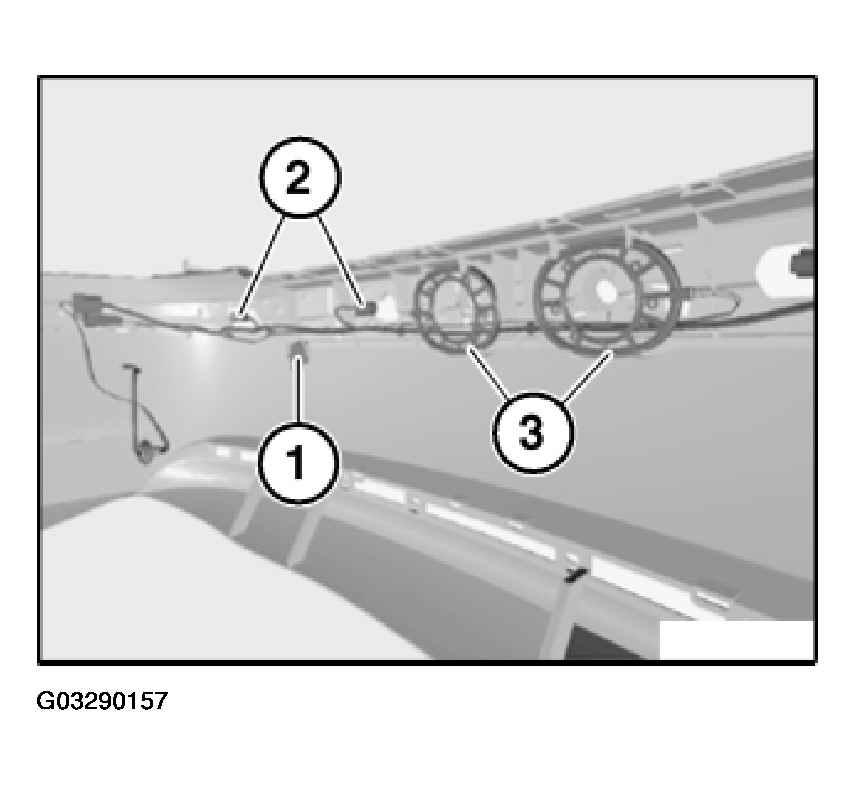

Fig 2: Removing PDC Wiring Harness And Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unclip PDC wiring harness (2) and antenna (3) and remove.

If necessary, remove flap and frame of trailer tow hitch.
