51 46 009 Removing and installing/replacing decorative strip for oddments tray (back shelf): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Release seat belt at rear middle bottom. Refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT or Fig 4 .

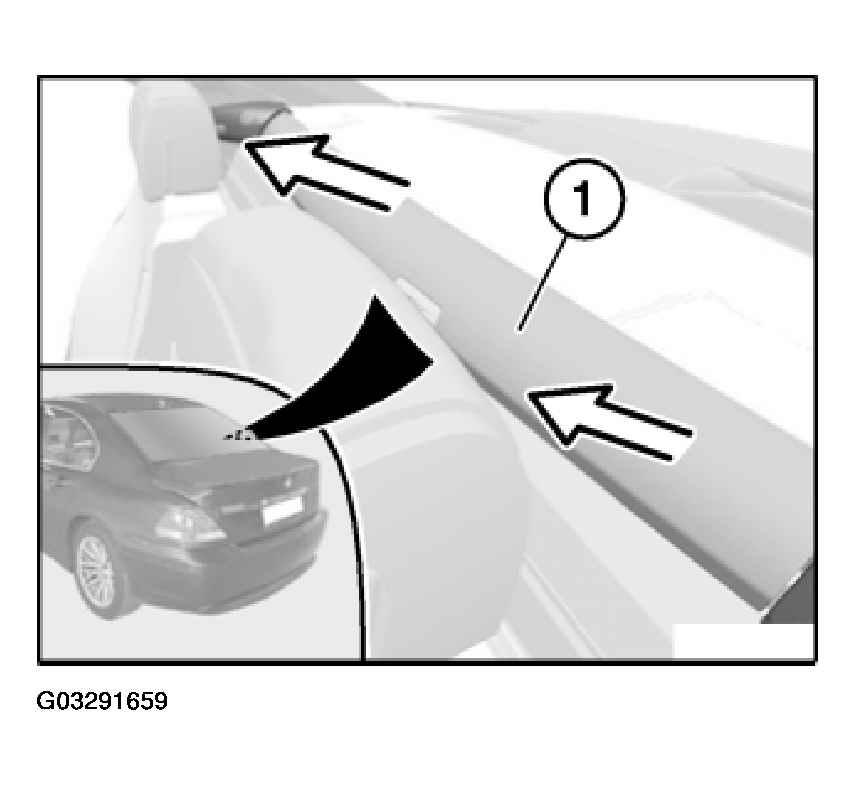

If necessary, unclip decorative strip (1) with special tool 00 9 317 in direction of arrow.

Fig 1: Unclipping Decorative Strip

G03291659

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip inserts must not be damaged, replace if necessary.

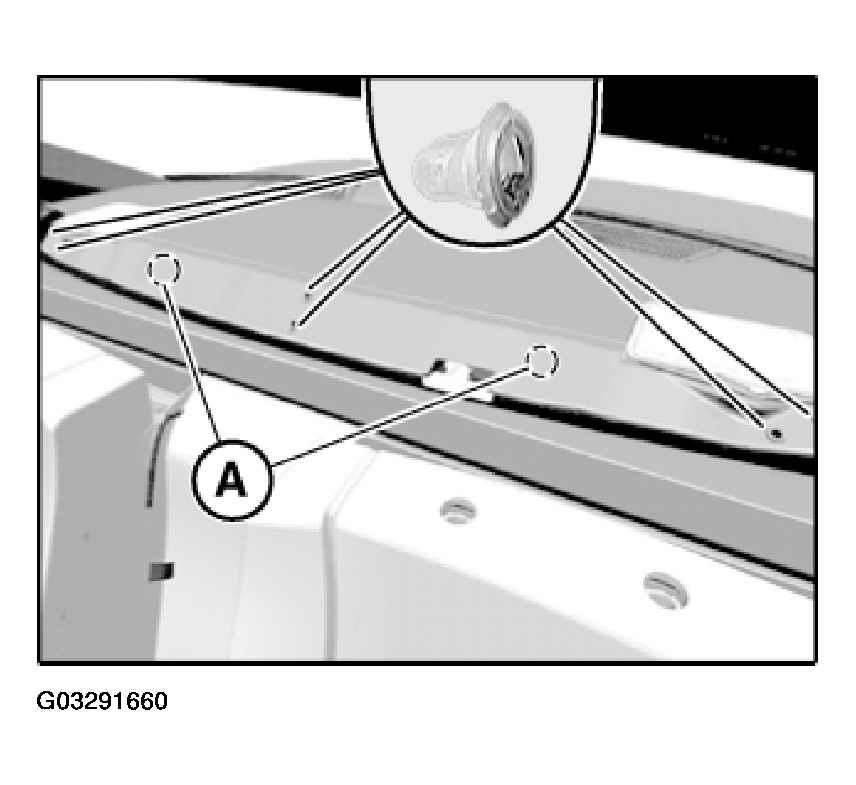

Build date from 02/2005:

Additional clip inserts are fitted in area (A).

Fig 2: Locating Clips

G03291660

Courtesy of BMW OF NORTH AMERICA, INC.

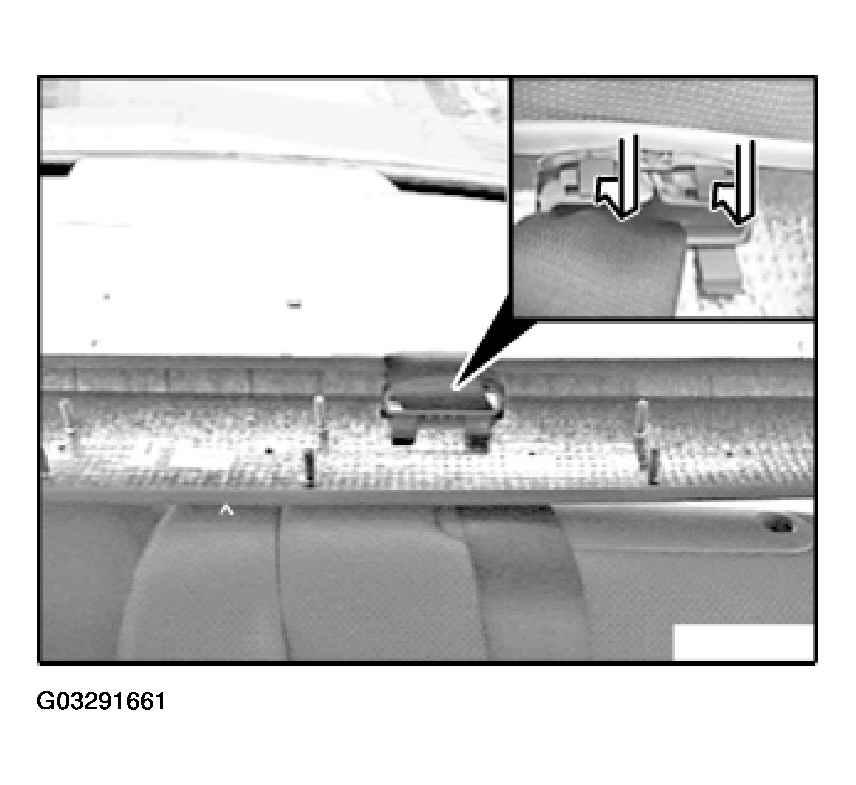

Unclip seatbelt finisher strip towards front.

Fig 3: Unclipping Seatbelt Finisher Strip

G03291661

Courtesy of BMW OF NORTH AMERICA, INC.

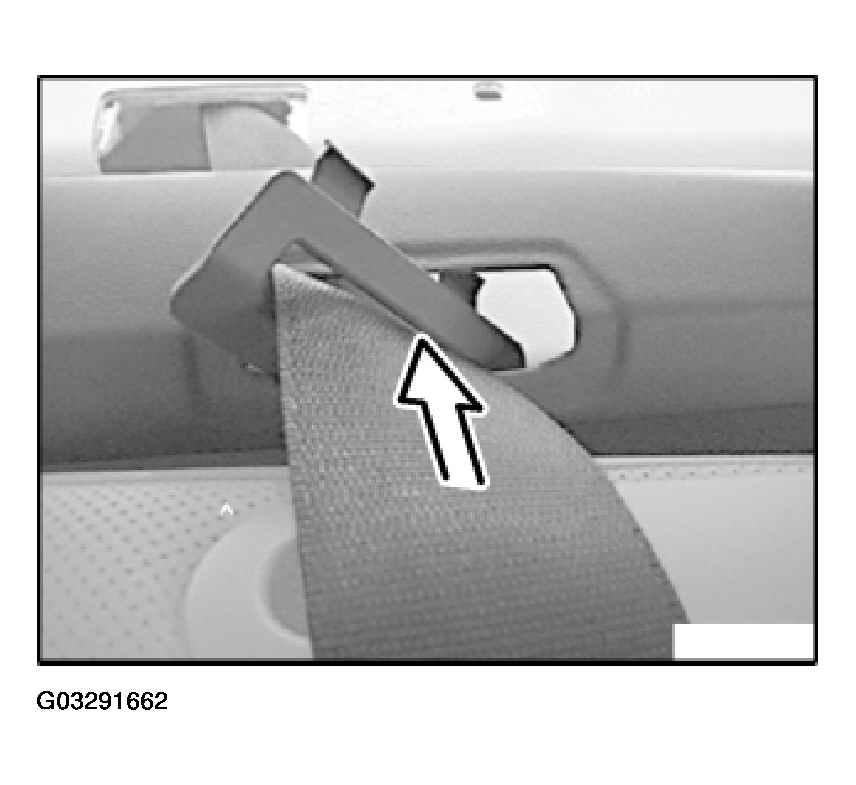

Feed out strap with seatbelt finisher strip through opening in decorative strip.

Fig 4: Feeding Out Strap

G03291662

Courtesy of BMW OF NORTH AMERICA, INC.
