Removing bottom storage tray (drawer) from function carrier:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

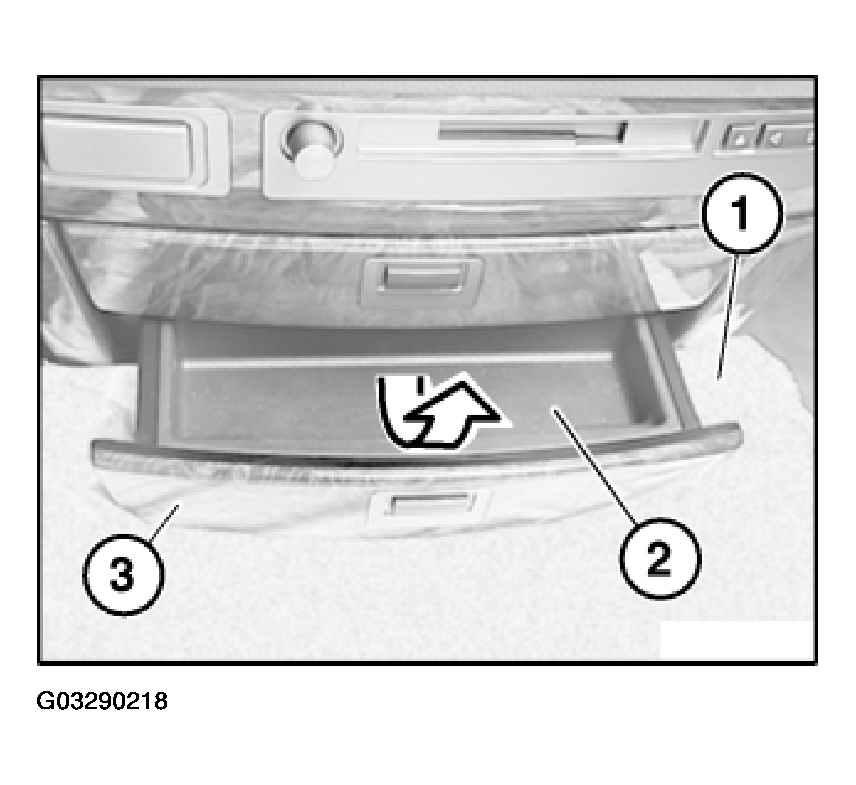

IMPORTANT: Cover decorative strip with a protective cover (1) to prevent scratching.

Lever insert (2) in direction of arrow out of storage tray (3).

Fig 1: Removing Bottom Storage Tray

G03290218

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

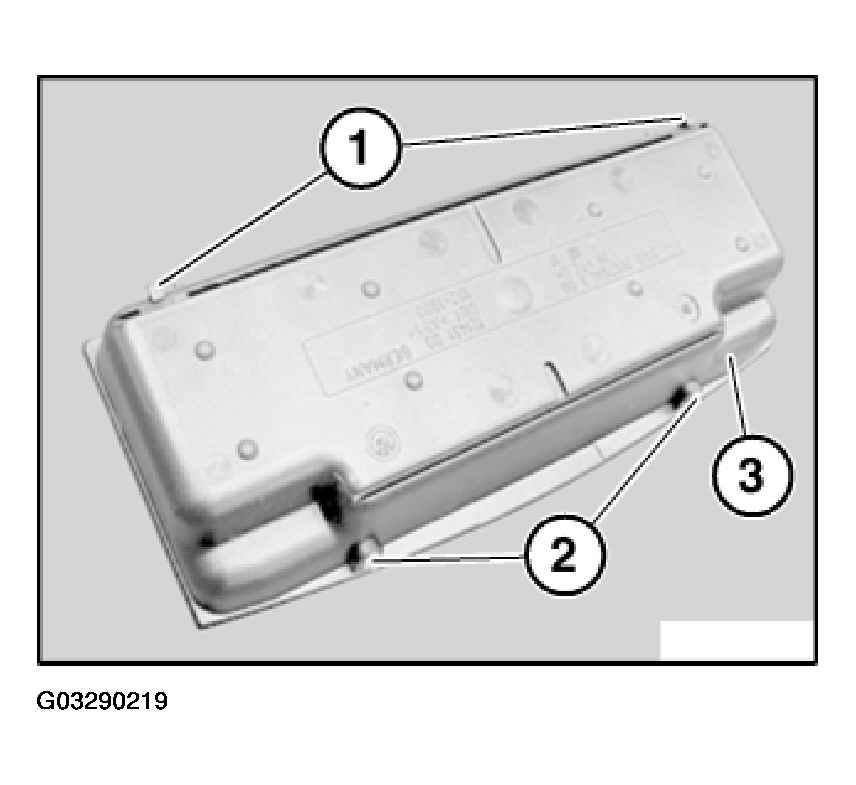

Following parts of insert (3) must not be damaged:

Guides
Catches

Fig 2: Identifying Guides And Catches

G03290219

Courtesy of BMW OF NORTH AMERICA, INC.

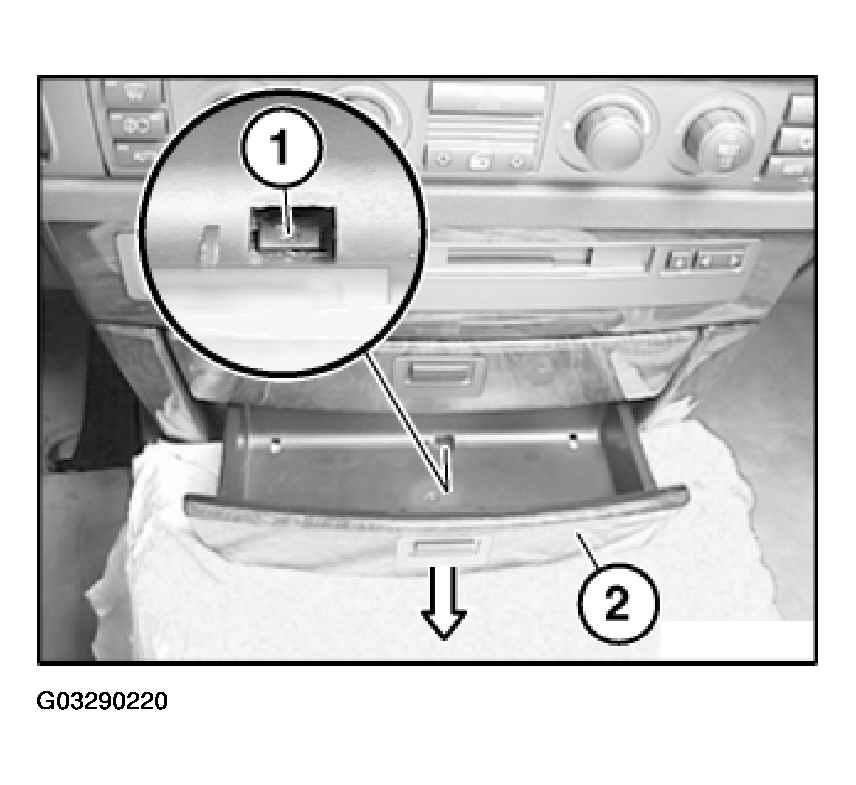

Press lock (1) downwards and pull out storage tray (2) in direction of arrow.

Fig 3: Removing Storage Tray

G03290220

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lock (1) must not be damaged.

NOTE: A hand mirror (2) will be required for viewing.

Installation:

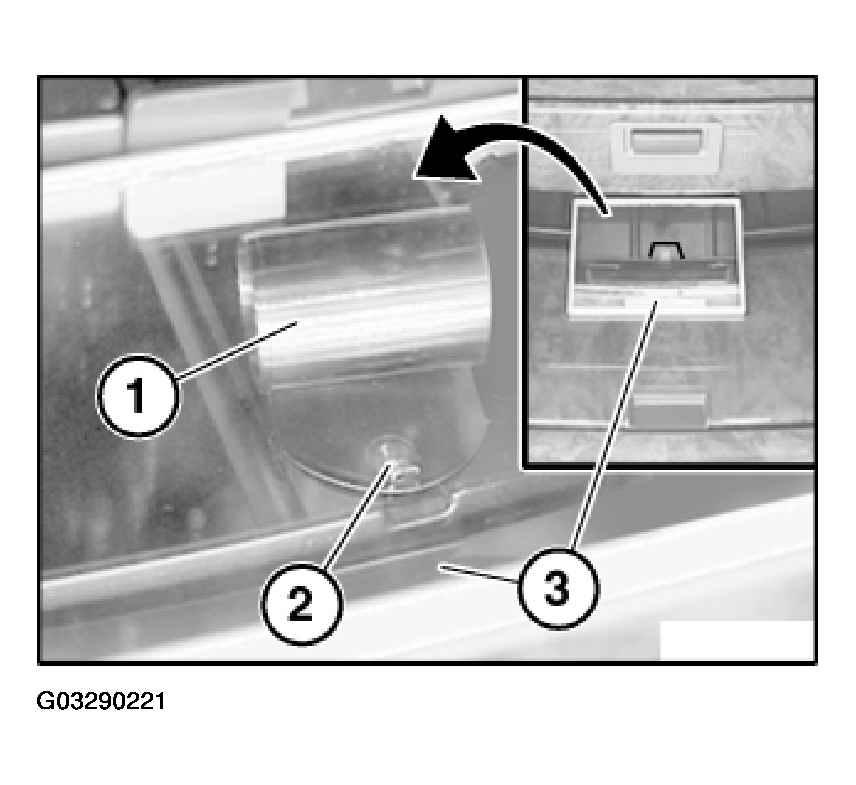

Spring (1) must be correctly connected in mounting (2).

Fig 4: Connecting Springs In Mountings

G03290221

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

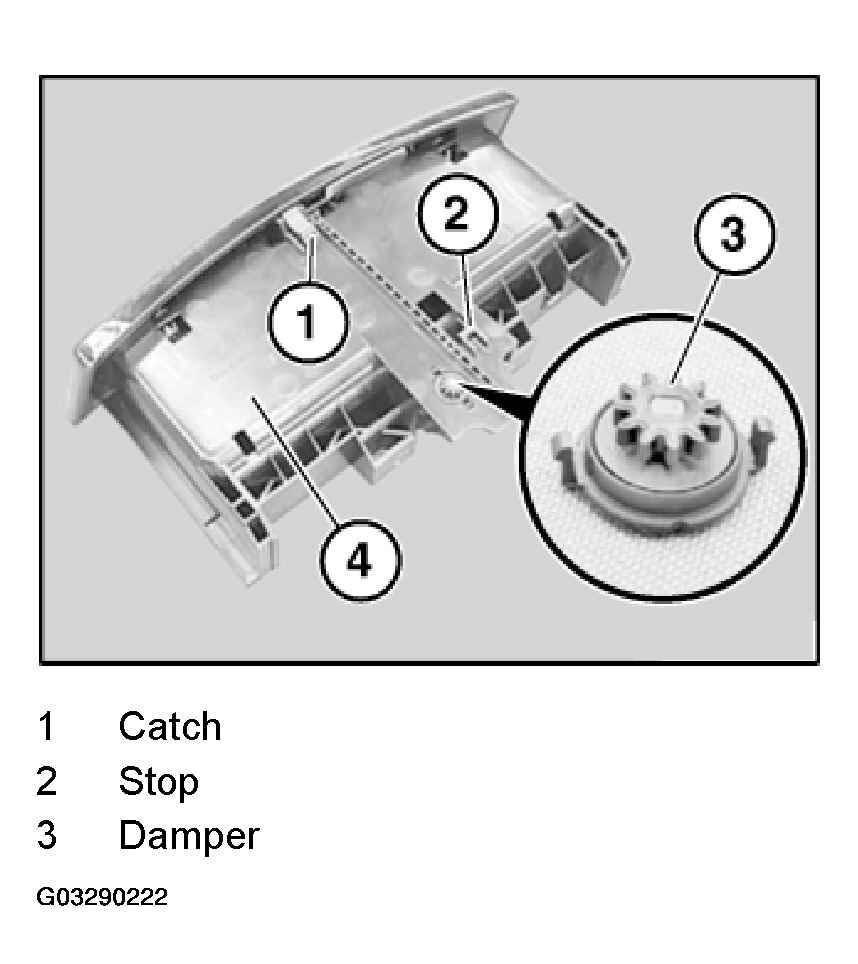

Following parts of storage tray (4) must not be damaged:

Fig 5: Identifying Catch, Stop And Damper

G03290222

Courtesy of BMW OF NORTH AMERICA, INC.
